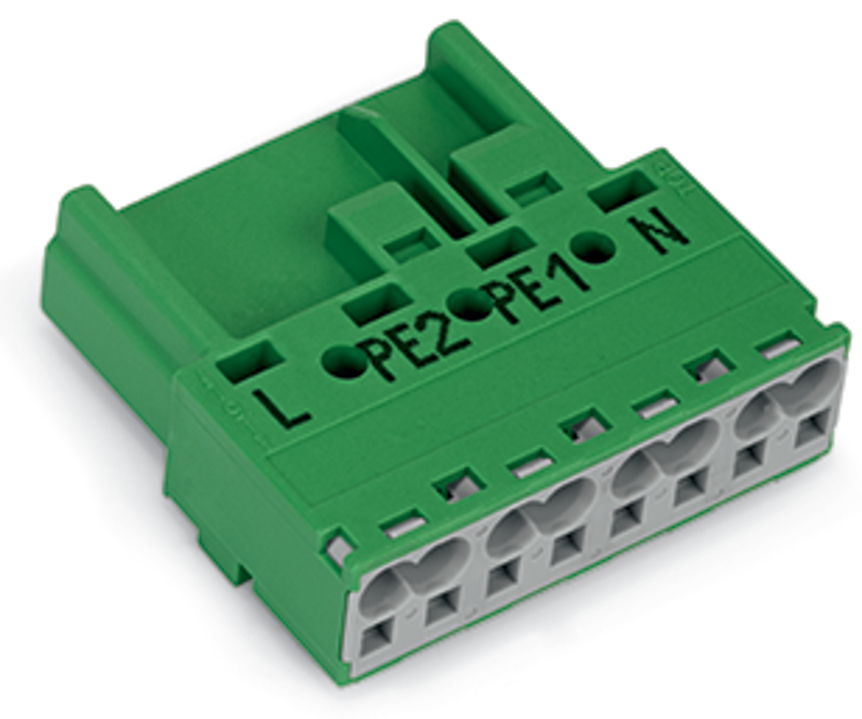

Plug 4-pole Cod. Q green

Name: Plug 4-pole Cod. Q green
Brand: Wago
SKU: 770-1334
Availability: InStock

Plug; 4-pole; Cod. Q; 4,00 mm²; green

Product identifiers

SKU: 770-1334

EAN: 4045454081393

GTIN: 4045454081393

MPN: 770-1334

Price: £ 2.40 Excl. VAT

Specifications

Model	Plug

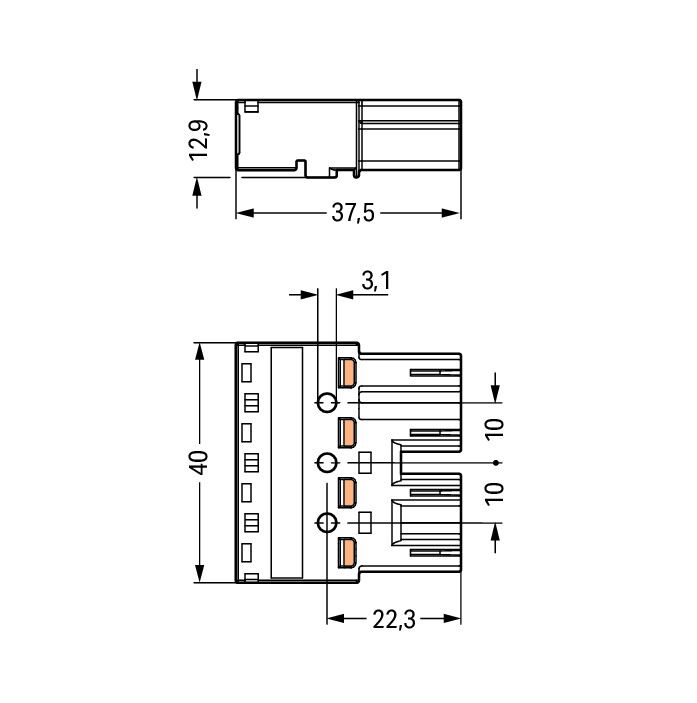

Width	40
Height	12.9
Length	37.5
Fire load	0.07083
Halogen free	yes
Rated current	32
Rated voltage	400
Cable diameter
Connection type	Spring clamp connection
Number of poles	4
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	Other
With strain relief	no
Rated surge voltage	6
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Green
Number of connections per pole	2
RAL-number coding/contact insert	6001
Connection cross section (solid-core)	0.5 - 4
Connection cross section (fine-strand)	0.5 - 4
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
