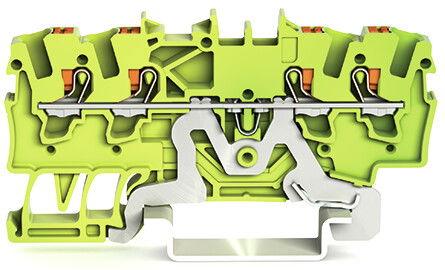

4-conductor ground terminal block with push-button 1.5 mm² green-yellow
Wago

4-conductor ground terminal block with push-button 1.5 mm² green-yellow

4-conductor ground terminal block; with push-button; 1.5 mm²; with test port; suitable for Ex e II applications; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; green-yellow

Product identifiers

SKU: 2201-1407
EAN: 4055143848688
GTIN: 4055143848688
MPN: 2201-1407

V+ Loyalty points:

6

Price: £ 4.66 Excl. VAT

Categories

Terminal Blocks Terminals, Connectors & Interconnects

Specifications

Depth 32.9
Width 4.2
Colour Green/yellow
Height 69.9
EFNA0008 V0
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Operating temperature 105 - 105
Closing plate required yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 4
Connectable conductor cross section multi-wired 0.25 - 1.5
Connectable conductor cross section fine-strand without cable end sleeve 0.25 - 2.5
