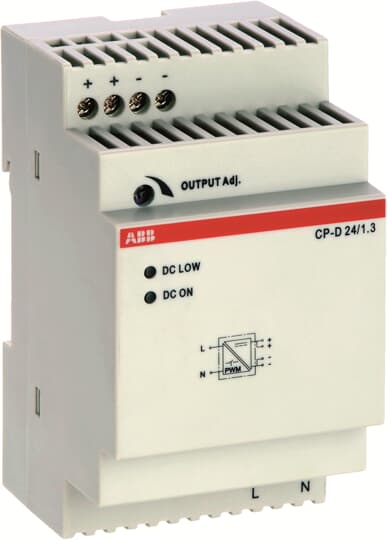

CP-D 24/1.3 Power supply In: 100-240VAC Out: 24VDC/1.3A

Link copied
SKU
EAN
GTIN
MPN

CP-D 24/1.3 Power supply In: 100-240VAC Out: 24VDC/1.3A by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, RS Components and City Electrical Factors. It is currently in stock at 2 of them. Trade prices range from £55.53 to £72.87 excl. VAT. Voltimum+ members earn 35 points per unit.

The CP-D 24/1.3 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 30 W, rated output current is 1.3 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 24 to 28 V DC. The power supply provides a U/I output characteristic.

Voltimum+ Loyalty Programme Loyalty points: 35

Price range: £ 55.53 - £ 72.87 Excl. VAT

Specifications

Depth 57.5
Width 53
Height 91
Stabilized yes
Power output 30
Built-in width 53
Built-in height 91
Modular version yes
Short-circuit-proof yes
Max. output current 2 0
Wall mounting possible no
Direct mounting possible no
Output voltage stabilized yes
Suitable for rail mounting yes
Type of electric connection Screw connection
2nd secondary output voltage
Secondary voltage adjustable no
Rated supply voltage AC 60 Hz
Voltage type (supply voltage) AC/DC
Nominal value output current 2 0
Nominal value output voltage 1 24
Nominal value output voltage 3 0
Performance level according to EN ISO 13849-1 None

Documents

Deeplink product page

Open

Deeplink REACH

1SVD982001-4501_en_C_REACh Info for Power Supplies.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

1SVC427041M0001_A.pdf

Open

Product data sheet

Open

Declaration RoHS

1SVD982001-4401_ROHS_Power_Supplies_revB_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

1SVD982007-0004_20210118.pdf

Open
