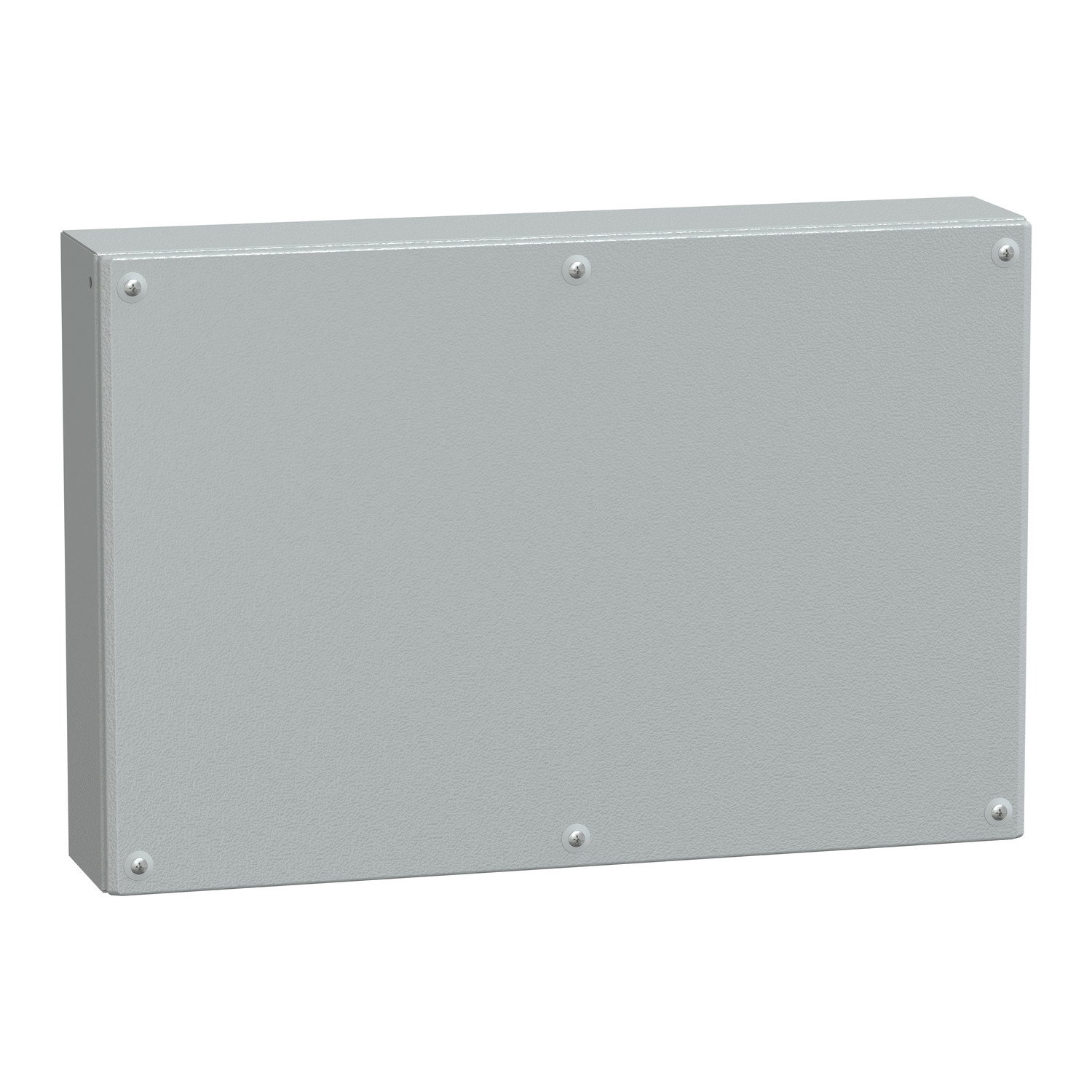

Metal industrial box plain door H400xW600xD120 IP66 IK10 RAL 7035

Metal industrial box plain door H400xW600xD120 IP66 IK10 RAL 7035 by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £114.78 to £154.97 excl. VAT. Voltimum+ members earn 18 points per unit.

Industrial box for PanelSeT SBM. Multi purpose. 400 x 600 x 120 mm. Flat face box. Wall mounted on enclosure. Single piece body folded and welded. Cover fixing with half turn metal srew. Cover by 4 captive screw PZ2 outside sealed area. Made sheet of stee with polyester powder finish. Protection IP 66, IK10.

Product identifiers

SKU: NSYSBM406012
EAN: 3606480520273
GTIN: 3606480520273
MPN: NSYSBM406012

Voltimum+ Loyalty Programme Loyalty points: 18

Price range: £ 114.78 - £ 154.97 Excl. VAT

Categories

Weatherproof Enclosures Enclosures & Panels

ETIM group

Control cabinet systems

Specifications

Depth 120 mm
Width 600 mm
Colour Grey
Height 400 mm
Material Steel
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Other
Surface finishing Powder coating
With mounting plate no
With ventilation door no
Floor standing wall model no
Suitable for wall built-in yes
Degree of protection (NEMA) 4X
Suitable for metrical mounting yes
Max. permissible load of the door(s) according to IEC 62208 -
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
