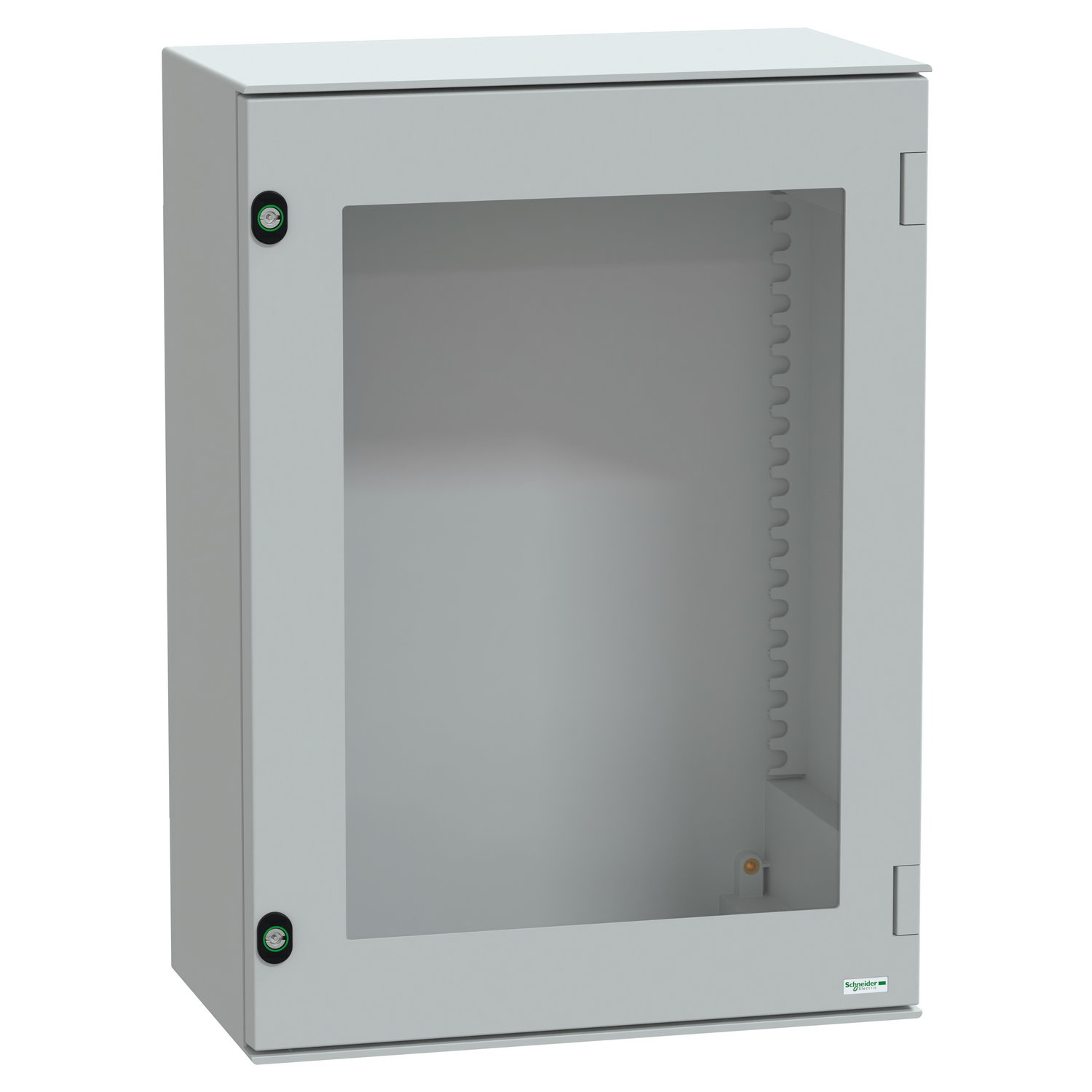

Wall-mounting enclosure polyester monobloc IP66 H747xW536xD300mm glazed door
PanelSeT PLM wall-mounting polyester enclosure monobloc w/glazed door. 747 x 536 x 300 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass, tempered glass door. Grey RAL 7035. IP66, IK08, NEMA (13,4X) 960°C fire resistance.
Product identifiers
SKU: NSYPLM75TG
EAN: 3606480776724
GTIN: 3606480776724
MPN: NSYPLM75TG
Loyalty points:
147
Price range: £ 330.80 - £ 371.24 Excl. VAT
Categories
Features
|
Depth
|
300 mm
|
|
Width
|
536 mm
|
|
Colour
|
Grey
|
|
Height
|
747 mm
|
|
Material
|
Plastic
|
|
Couplable
|
FALSE
|
|
With door
|
TRUE
|
|
RAL-number
|
7035
|
|
With cover
|
FALSE
|
|
EMC-version
|
FALSE
|
|
Corner model
|
FALSE
|
|
Freestanding
|
FALSE
|
|
Pitched roof
|
FALSE
|
|
Pre-stamping
|
FALSE
|
|
Pole fastening
|
TRUE
|
|
With rear door
|
FALSE
|
|
Impact strength
|
IK08
|
|
Number of doors
|
1
|
|
Number of locks
|
2
|
|
Material quality
|
Polyester
|
|
With glazed door
|
TRUE
|
|
Surface finishing
|
Untreated
|
|
Transparent cover
|
FALSE
|
|
With mounting plate
|
FALSE
|
|
Intermediate mounting
|
FALSE
|
|
With ventilation door
|
FALSE
|
|
Degree of protection (IP)
|
IP66
|
|
Floor standing wall model
|
-
|
|
Number of connector holes
|
0
|
|
Suitable for wall built-in
|
TRUE
|
|
Suitable for wall mounting
|
TRUE
|
|
Degree of protection (NEMA)
|
4X
|
|
Suitable for outdoor set-up
|
TRUE
|
|
Suitable for metrical mounting
|
-
|
|
Mounting plate depth-adjustable
|
TRUE
|
|
Max. permissible load of the door(s) according to IEC 62208
|
-
|
|
Max. permissible load of the enclosure according to IEC 62208
|
563 N
|
|
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890
|
-
|
|
Max. permissible load of the mounting plate according to IEC 62208
|
430 N
|
