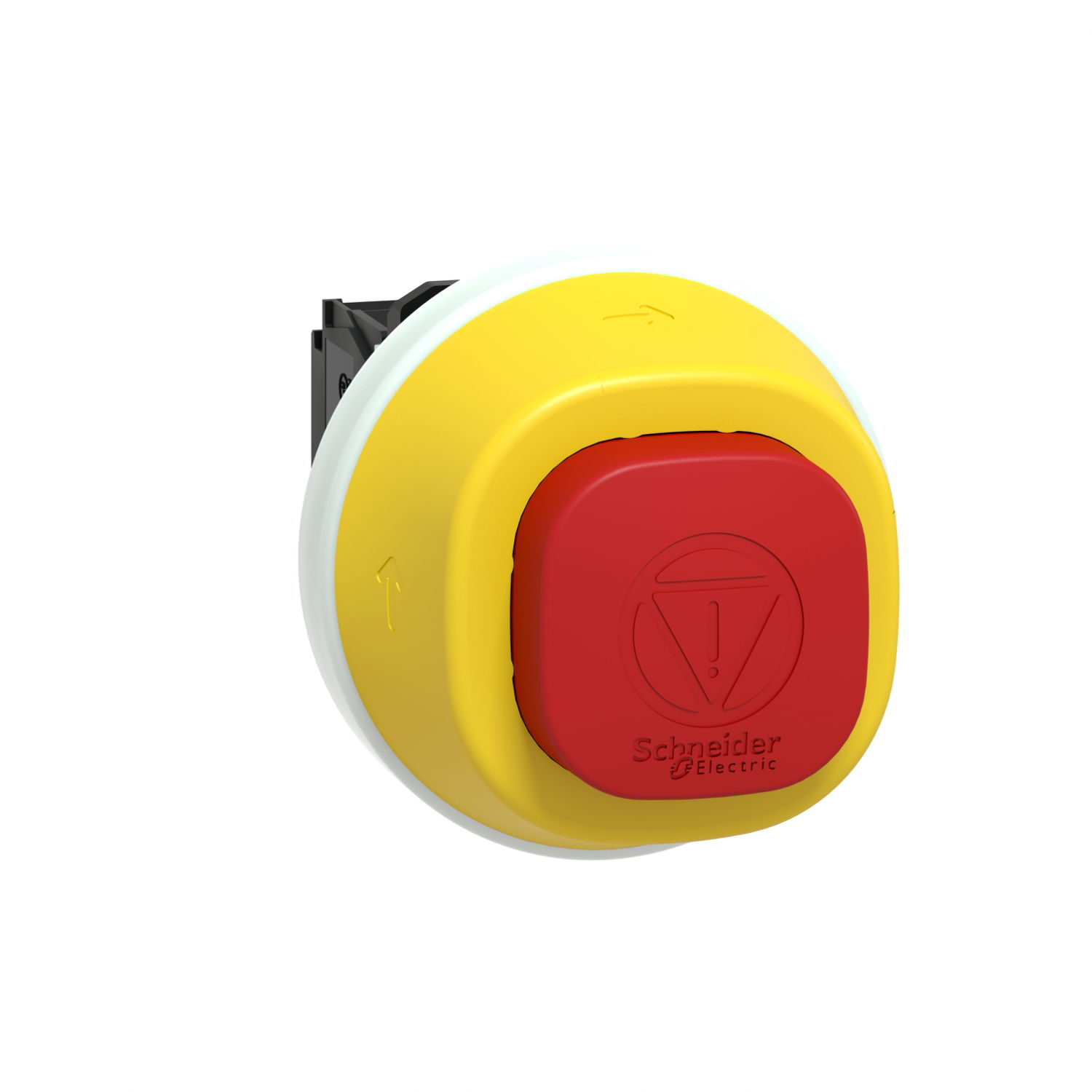

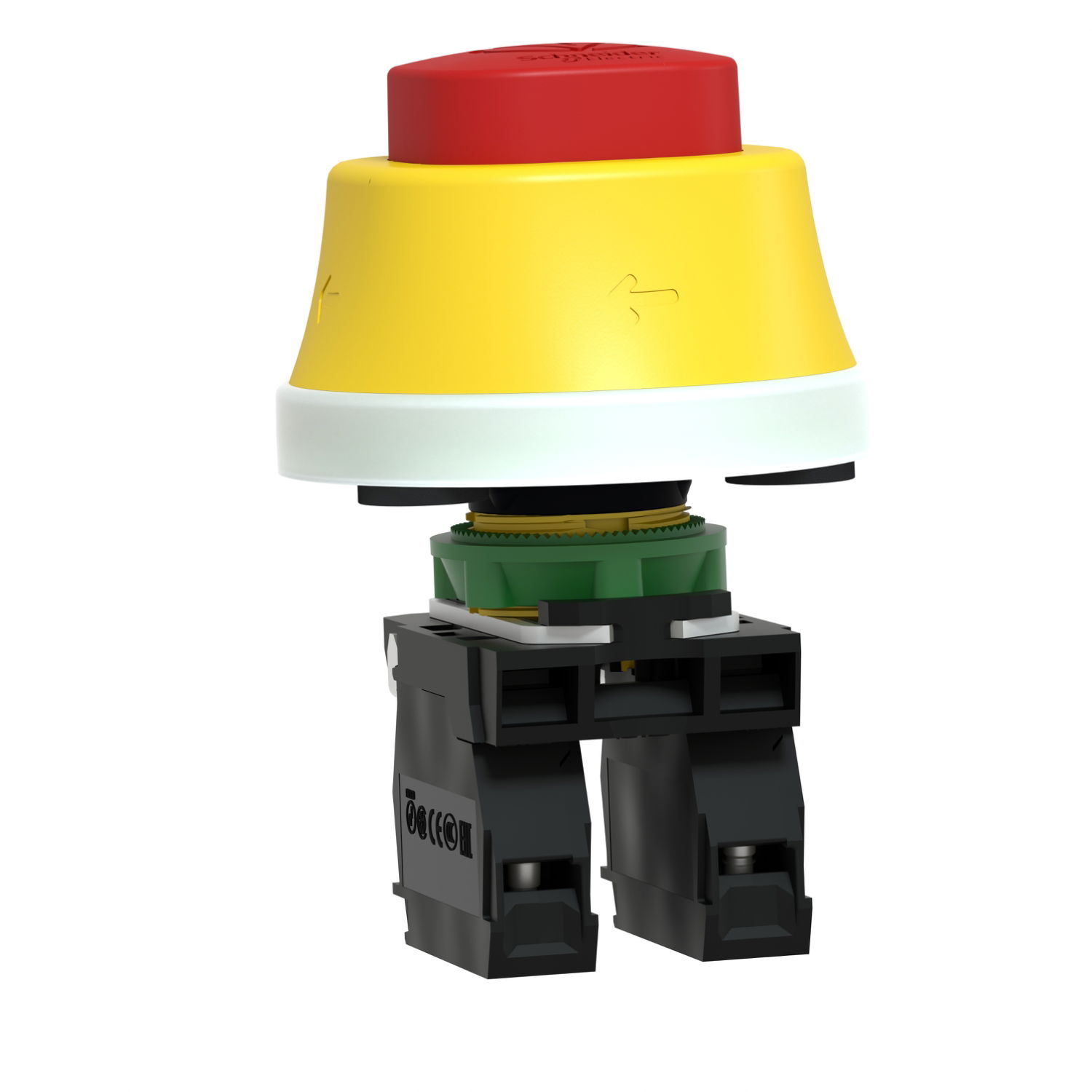

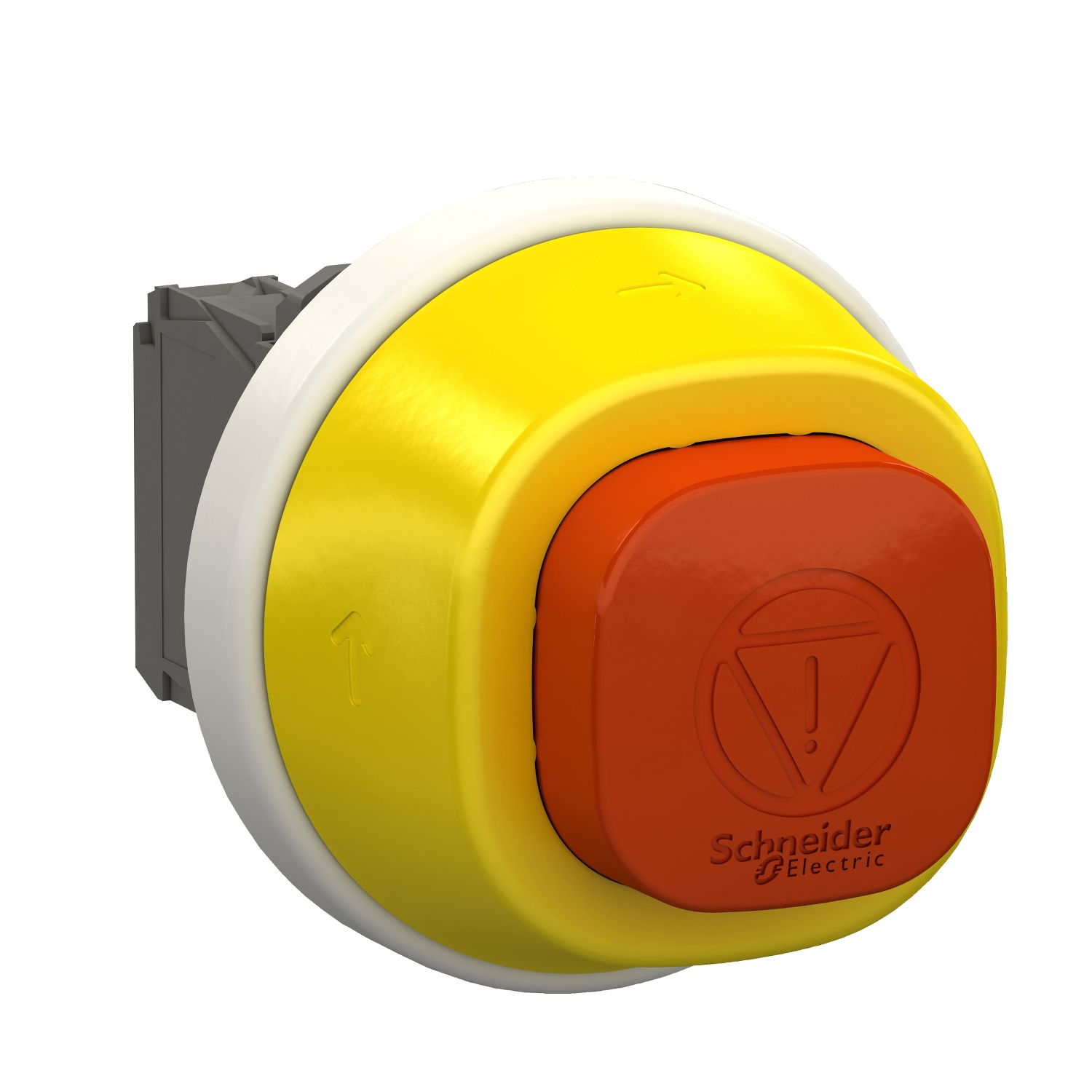

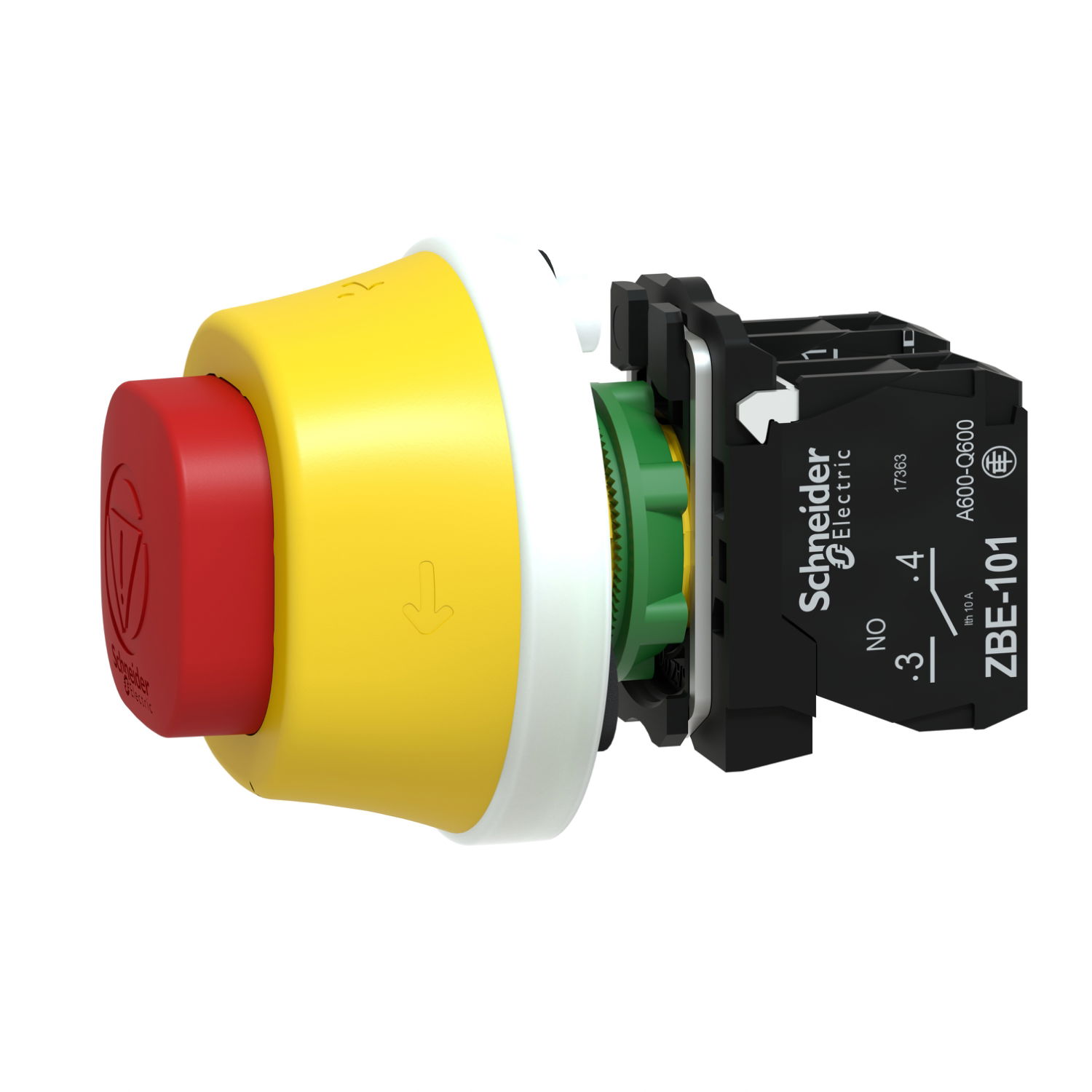

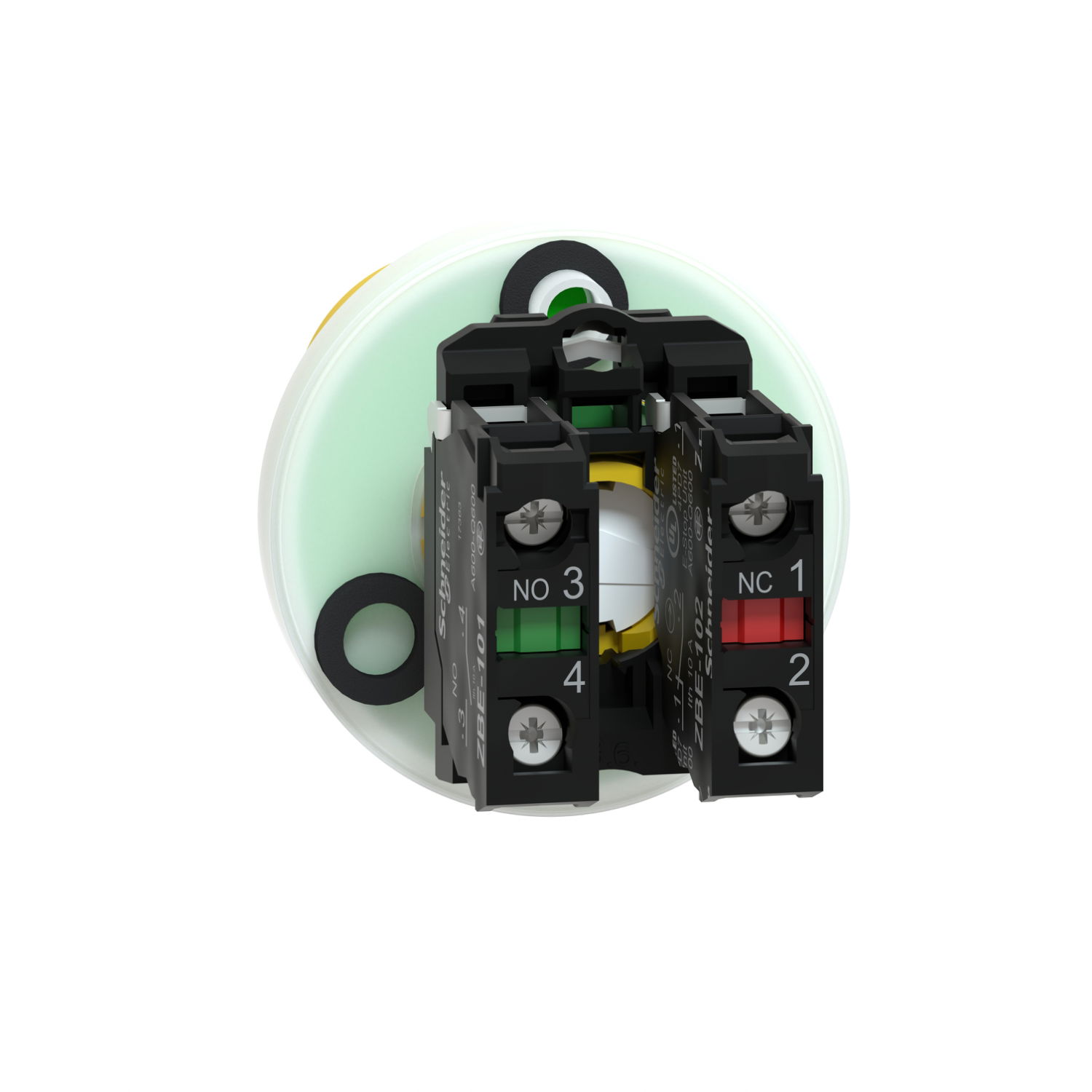

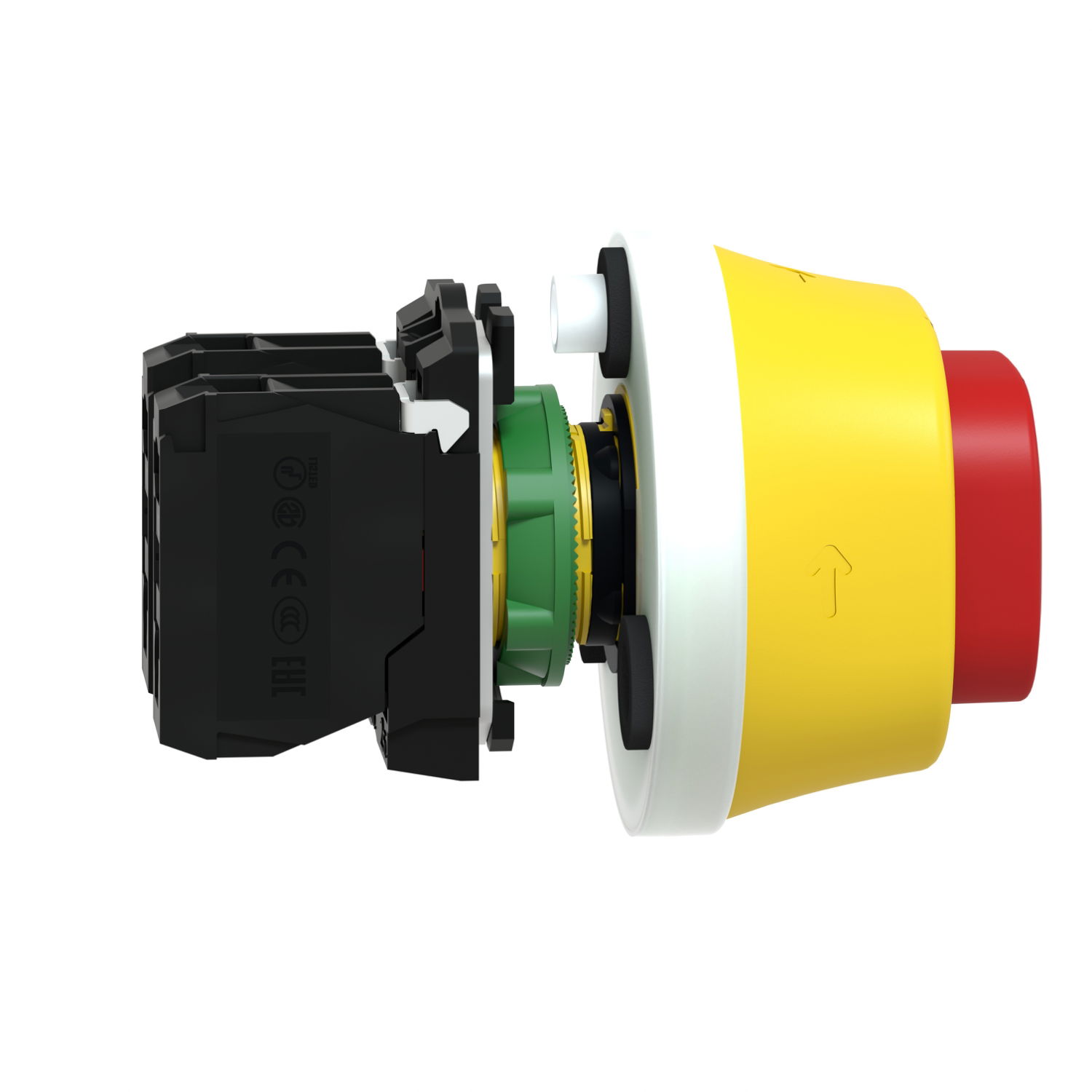

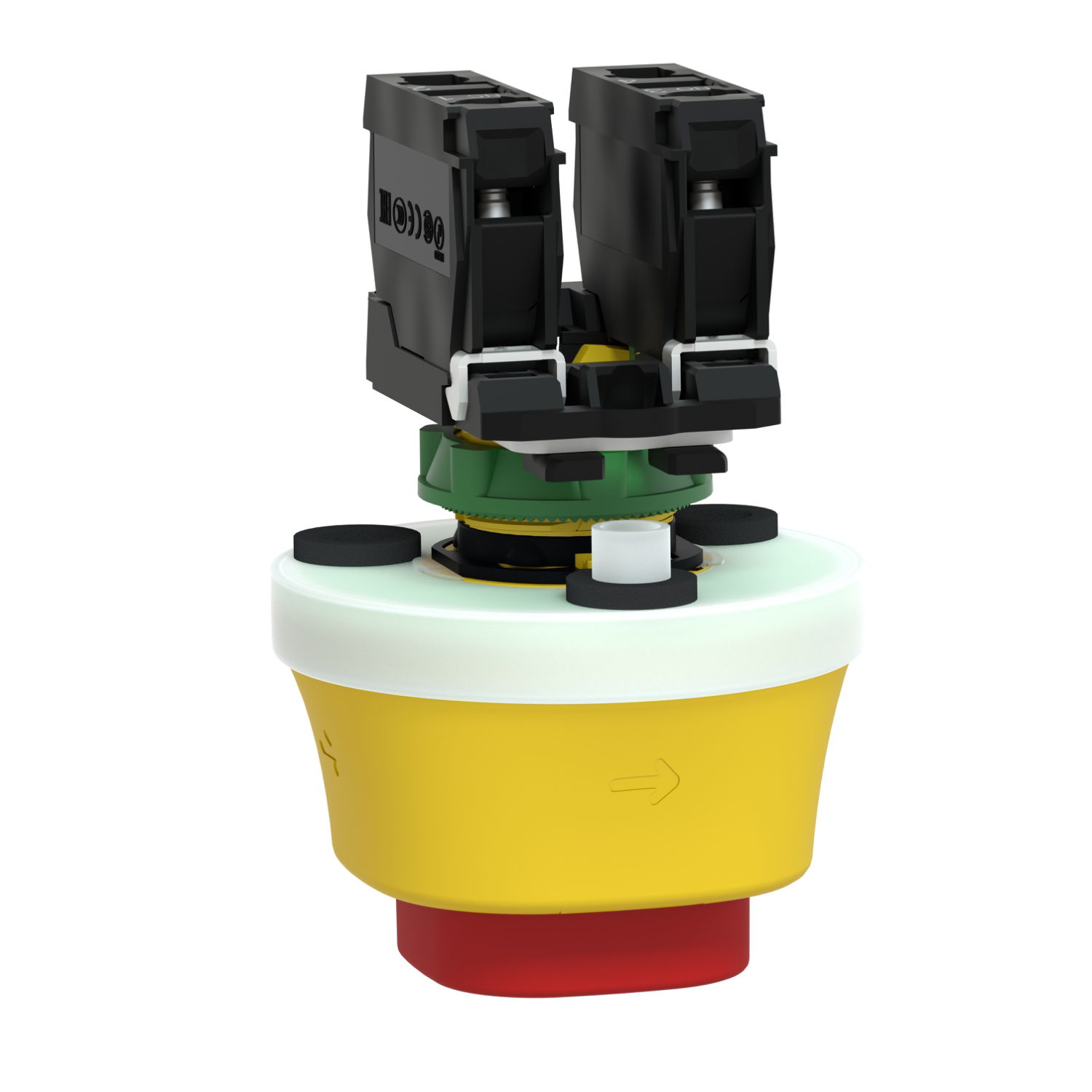

Harmony XB5, Illuminated emergency stop, plastic, Ø22, trigger latching turn to release, white/red LED, 24 V AC/DC, 1 NO + 1 NC

Harmony XB5, Illuminated emergency stop, plastic, Ø22, trigger latching turn to release, white/red LED, 24 V AC/DC, 1 NO + 1 NC

This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.

Product identifiers

SKU: XB5AS84W3B5
EAN: 3606489745615
GTIN: 3606489745615
MPN: XB5AS84W3B5

Voltimum+ Loyalty Programme Loyalty points: 8

Price: £ 57.63 Excl. VAT

Videos

How to video

Promotional video

Specifications

Diameter cap 22 mm
Hole diameter 22.5 mm
With lighting yes
Mounting method Built-in
Unlocking method Turn-release
Supply voltage lamp 24 V
Degree of protection (IP) IP66
Degree of protection (NEMA) Other
Number of contacts as normally open contact 1
