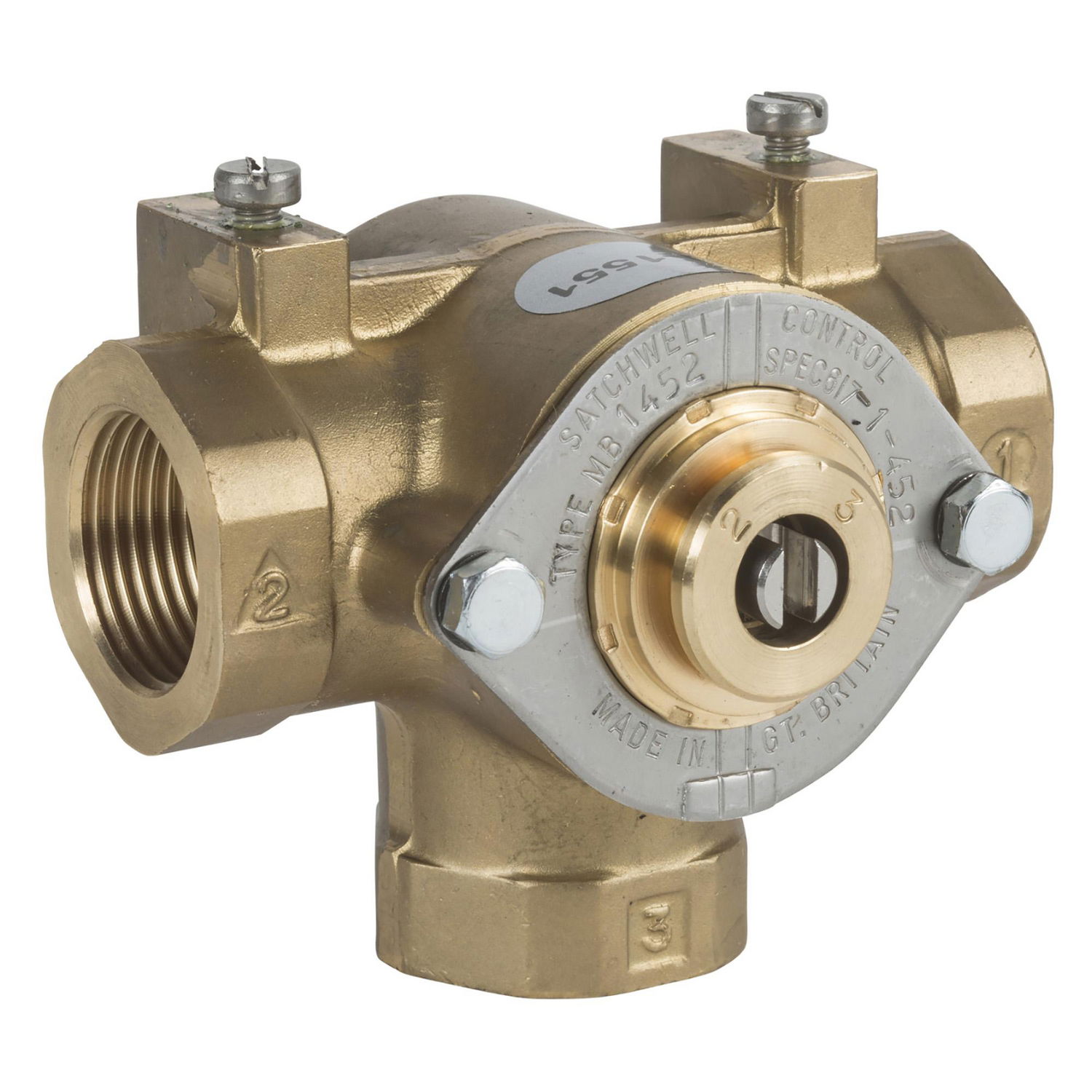

"MB 3-way, Threaded Shoe Valve, 1/2" (Rp 1/2)." "The crown plug provides precise fluid control with a rangeability of 50:1." "Valve size: DN2, modified linear, kvs: 2 m³/h." "Constructed and flanged to a PN10 pressure class." "The valve provide a working temperature range of 2 °C to 120 °C." "90 ° operating angle."

Product identifiers

SKU: MB1402
EAN: 3606480936227
GTIN: 3606480936227
MPN: MB1402

V+ Loyalty points:

200

Price: £ 400.00 Excl. VAT

Specifications

Depth 119 mm
Width 93 mm
Height 81 mm
Frequency -
Kvs value 2
Connections Other
Transmission -
Control signal -
Supply voltage -
Closing pressure -
Material quality Other
With end contacts no
Surface protection Untreated
Control ratio (Svo) -
KVS value for bypass -
Length of connection 2 -
Flange compression class PN 10
Degree of protection (IP) -
Max. electric power input -
Zero-pressure return flow None
With coupling connection 1 -
With coupling connection 3 -
Working length connection 1 -
Working length connection 3 -
Characteristic curve for bypass -
Installation method, distributive no
Outer pipe diameter all connections 15 mm
Max. pressure difference in opened position -
