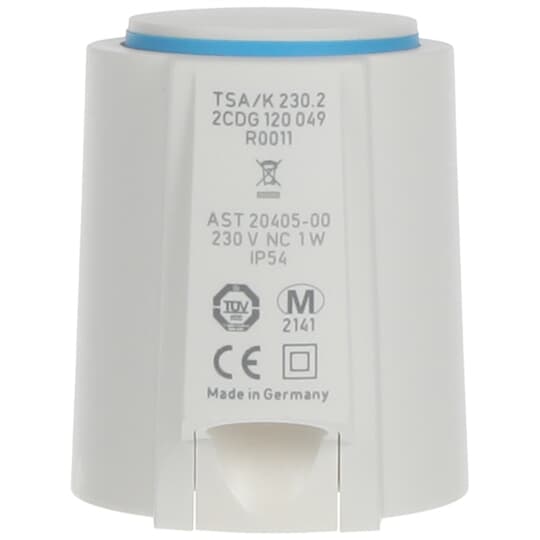

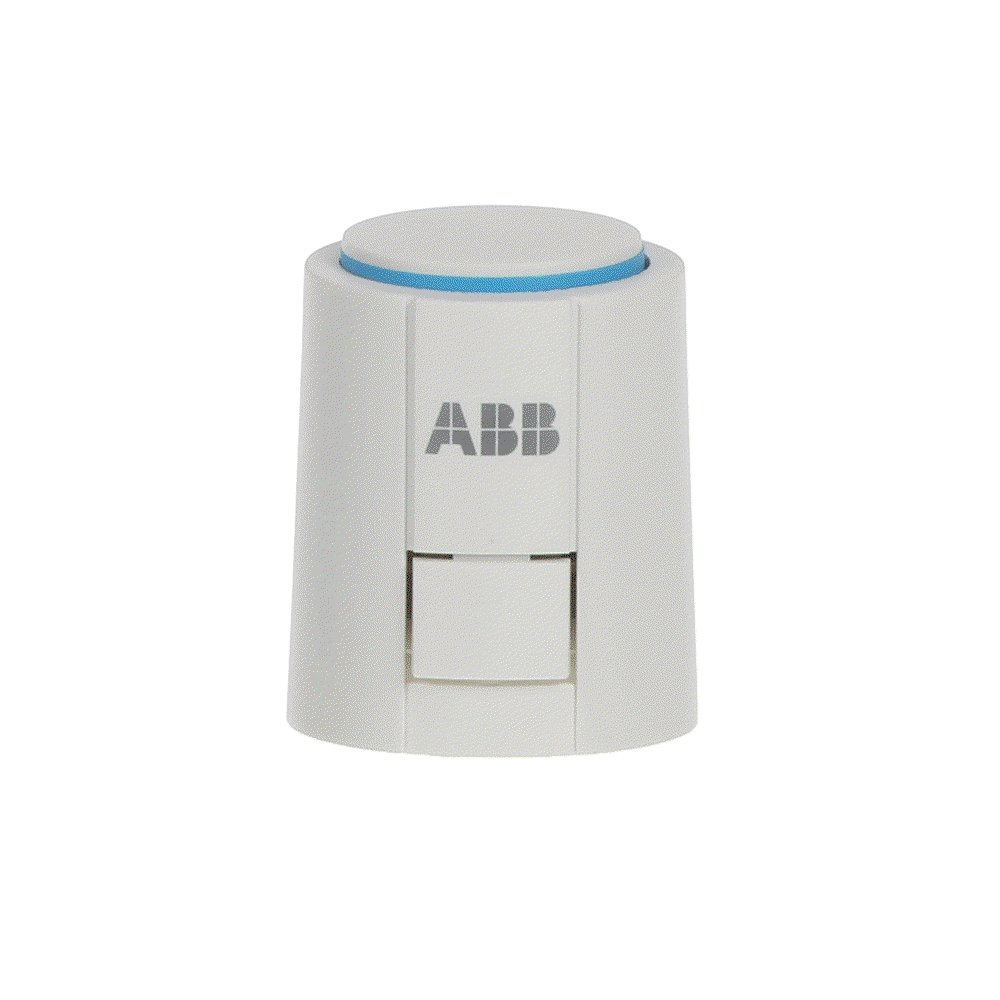

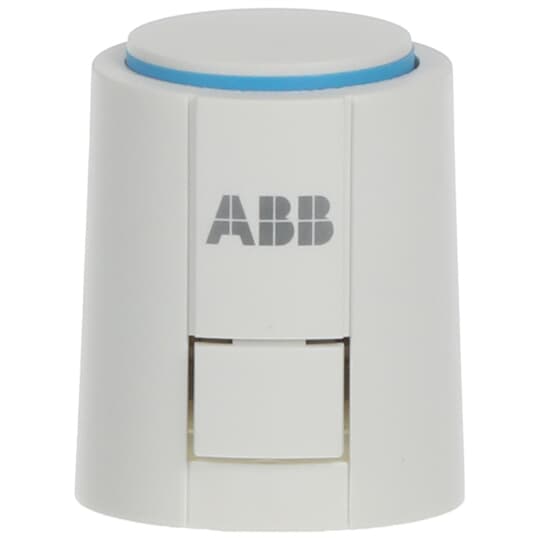

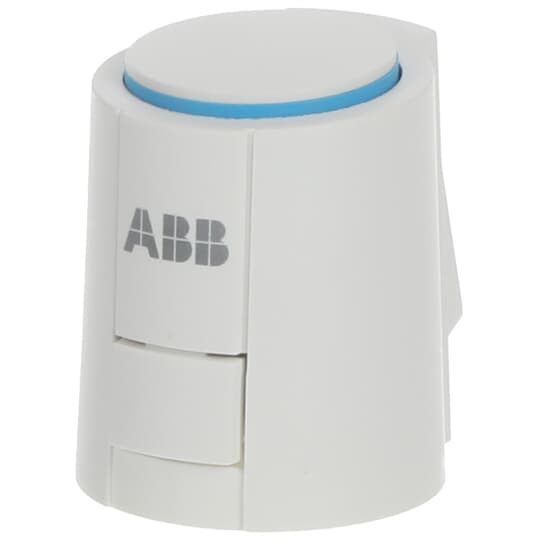

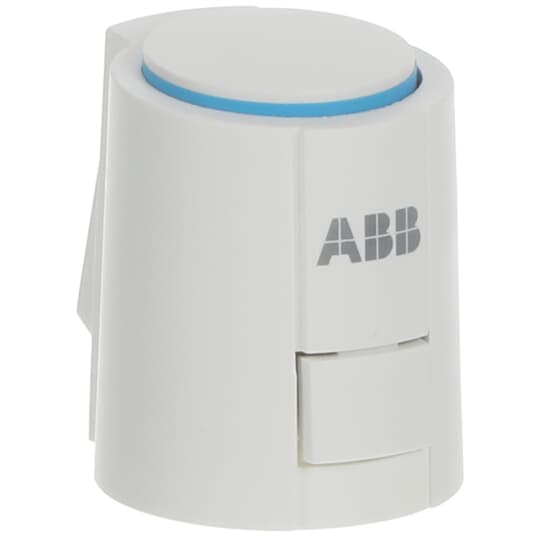

TSA/K230.2 Thermoelectric Valve Drive, 230 V

Link copied
SKU
EAN
GTIN
MPN

TSA/K230.2 Thermoelectric Valve Drive, 230 V by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £47.44 to £52.10 excl. VAT. Voltimum+ members earn 23 points per unit.

The Thermoelectric Valve Drives TSA/K are suited for opening and closing valves in Heating, Ventilating and Air-Conditioning (HVAC) systems. The devices are normally closed available in 230 V and 24 V with pluggable connecting cable. The shapely housing protects the device against splash water. The device is especially suited to control radiators, converter heaters and cooling ceilings for single room temperature controlling. The valve drive can be controlled with the Electronic Switch Actuator ES/S or with the Electronic Relay ER/U in combination with the Universal Interface US/U and a Room Thermostat. The easy and quick snap-on mounting on all common valves occurs via Valve Adapters VA/Z.

Voltimum+ Loyalty Programme Loyalty points: 23

Price range: £ 47.44 - £ 52.10 Excl. VAT

Specifications

Bus system KNX no
Bus system LON -
Mounting method Other
Nominal voltage 230
Other bus systems None
Bus system Powernet -
With bus connection no
Function master/slave -
Number of digital inputs 0
Bus system radio frequency -
Temperature and stroke indication yes
Buttons for manual operation at the drive no

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Dimensioned drawing

TSAK_2XX2_MB_XX_V1-0_9AKK108469A8430_Rev_B.svg

Open

Instructions for use

TSAK_2302_MBA_7s_V1-3_9AKK2017-108771.pdf

Open

Product data sheet

Open

3D / BIM object

TSA-KX.2_BIM_XX_V1_ABB_9AKK107046A4273_RevA.zip

Open

Declaration RoHS

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

TSAK_2302_CE_XX_V1-1_2CDK508154D2702.pdf

Open
