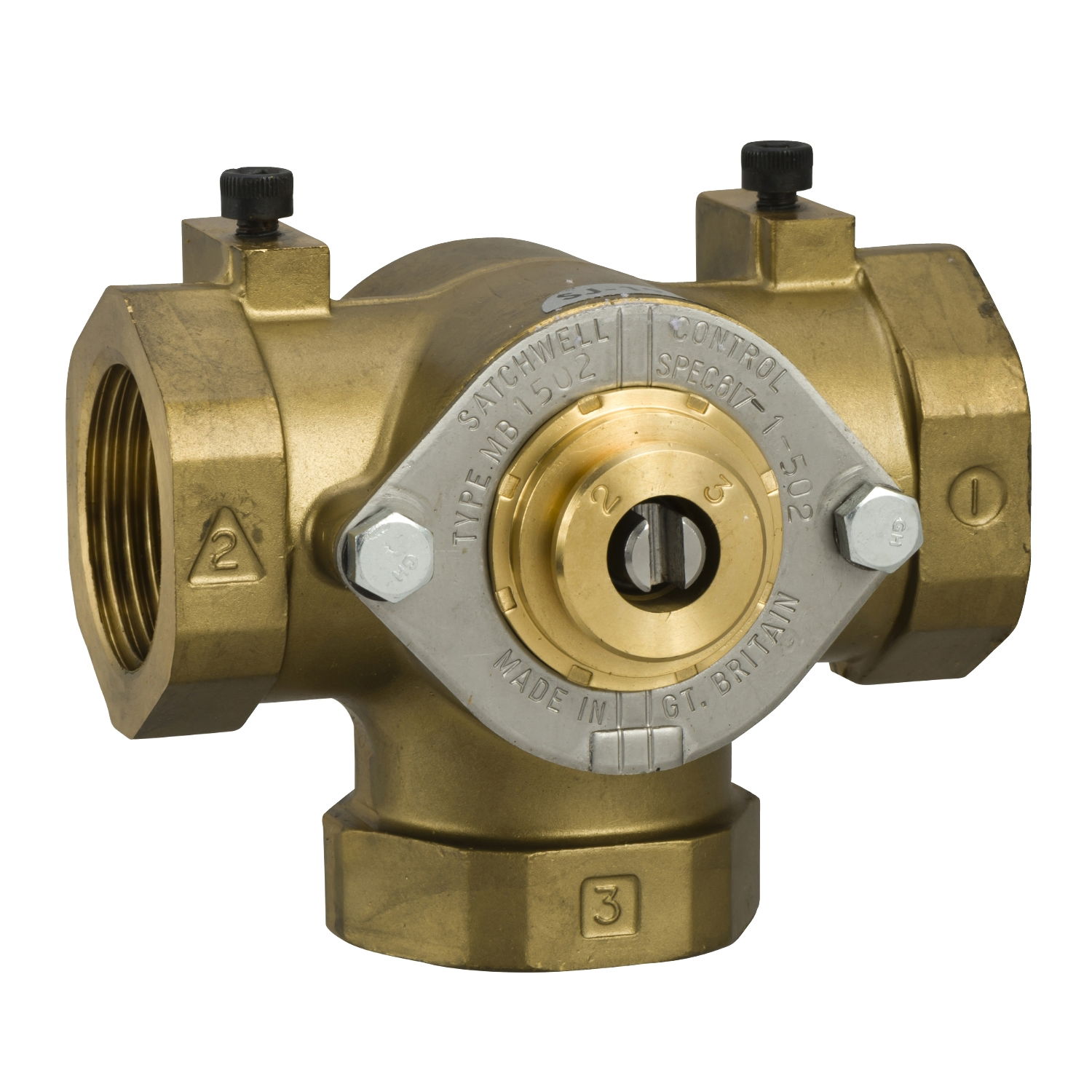

"MB 3-way, Threaded Shoe Valve, 1" (Rp 1)." "The crown plug provides precise fluid control with a rangeability of 50:1." "Valve size: DN25, modified linear, kvs: 8.3 m³/h." "Constructed and flanged to a PN10 pressure class." "The valve provide a working temperature range of 2 °C to 120 °C." "90 ° operating angle."
Product identifiers
SKU: MB1502
EAN: 3606480936241
GTIN: 3606480936241
MPN: MB1502
Loyalty points:
162
Price: £ 432.54 Excl. VAT
Categories
Features
|
Depth
|
120 mm
|
|
Width
|
95 mm
|
|
Height
|
84 mm
|
|
Frequency
|
-
|
|
Kvs value
|
8.3
|
|
Connections
|
Other
|
|
Transmission
|
-
|
|
Control signal
|
-
|
|
Operating time
|
-
|
|
Supply voltage
|
-
|
|
Explosion-proof
|
FALSE
|
|
Closing pressure
|
-
|
|
Housing material
|
Brass
|
|
Material quality
|
Other
|
|
Nominal diameter
|
1 inch (25)
|
|
With end contacts
|
FALSE
|
|
Auxiliary contacts
|
FALSE
|
|
Surface protection
|
Untreated
|
|
Ambient temperature
|
|
|
Control ratio (Svo)
|
-
|
|
Characteristic curve
|
Equal percentage
|
|
KVS value for bypass
|
-
|
|
Length of connection 1
|
-
|
|
Length of connection 2
|
-
|
|
Length of connection 3
|
-
|
|
Flange compression class
|
PN 10
|
|
Article compression class
|
PN 10
|
|
Degree of protection (IP)
|
-
|
|
Leakage loss of Kvs value
|
0.5 %
|
|
Max. electric power input
|
-
|
|
Position reporting system
|
-
|
|
Zero-pressure return flow
|
None
|
|
Adjustable operating range
|
-
|
|
With coupling connection 1
|
-
|
|
With coupling connection 2
|
-
|
|
With coupling connection 3
|
-
|
|
Allowable relative humidity
|
|
|
Working length connection 1
|
-
|
|
Working length connection 2
|
-
|
|
Working length connection 3
|
-
|
|
Suitable for manual operation
|
FALSE
|
|
Characteristic curve for bypass
|
-
|
|
Medium temperature (continuous)
|
|
|
Installation method, distributive
|
FALSE
|
|
Adjustable position feedback signal
|
-
|
|
Outer pipe diameter all connections
|
25 mm
|
|
Leakage loss of KVS value for bypass
|
-
|
|
Max. pressure difference in opened position
|
-
|
