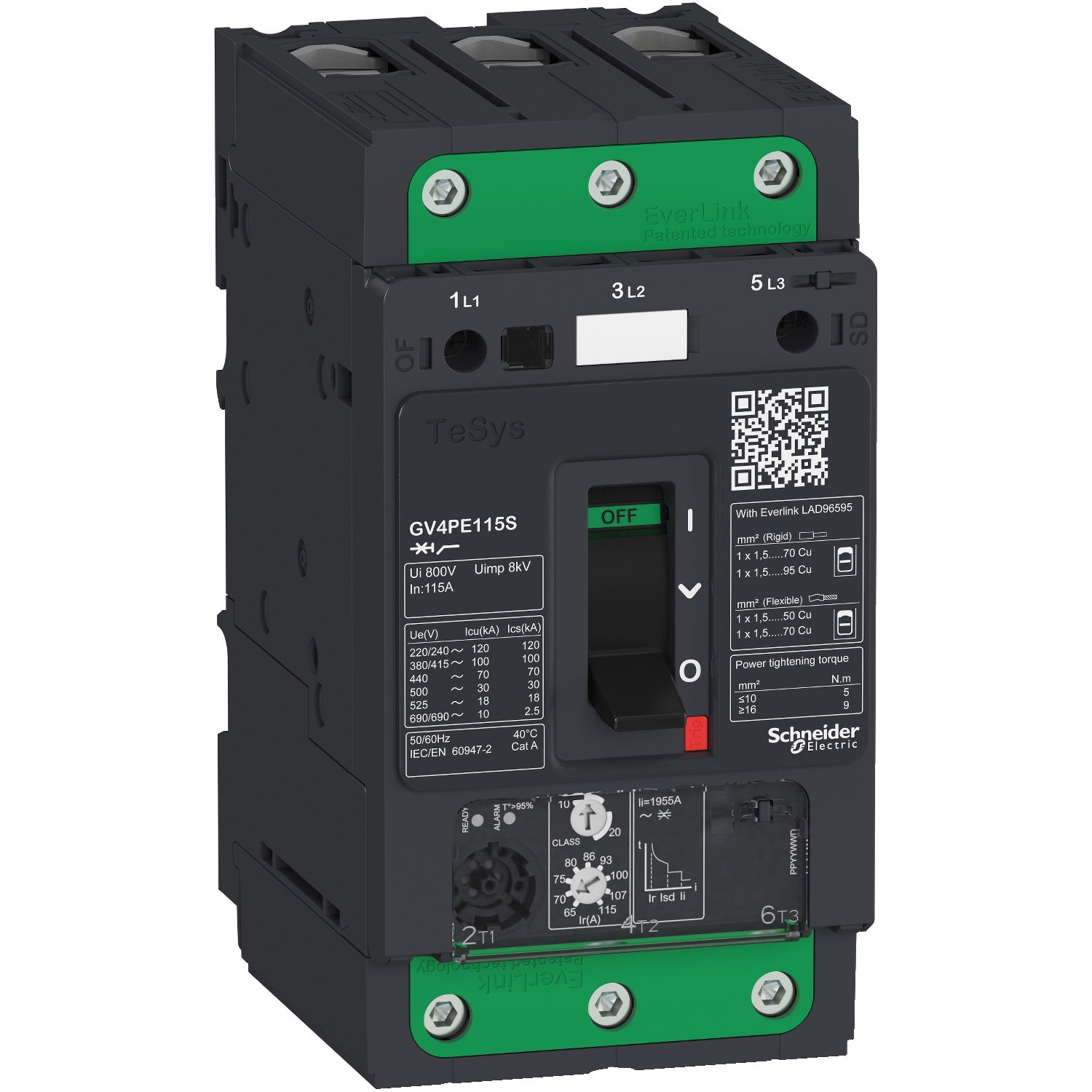

TeSys GV4 - thermal magnetic circuit breaker - 115A 3P - with Everlink

Link copied
SKU
EAN
GTIN
MPN

TeSys GV4 - thermal magnetic circuit breaker - 115A 3P - with Everlink by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 3 of them. Trade prices range from £282.32 to £459.84 excl. VAT. Voltimum+ members earn 56 points per unit.

TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 25kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 65-115A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).

Voltimum+ Loyalty Programme Loyalty points: 56

Price range: £ 282.32 - £ 459.84 Excl. VAT

Specifications

Depth 116 mm
Width 81 mm
Height 155 mm
Power loss 13.8 W
Number of poles 3
Device construction Complete device in housing
Switch off technique Electronic
Phase failure sensitive yes
Type of control element Rocker lever
Rated permanent current Iu 115 A
With integrated auxiliary switch no
Rated operation power at AC-3, 230 V 30 kW
With integrated under voltage release no
Adjustment range undelayed short-circuit release

Documents

Declaration of Conformity (Sustainability)

GV4PE115B REACh Regulation

Open

User guide

TeSys Power - Deca Motor Circuit Breakers Frame 4 - Use in Explosive Atmospheres

Open

Instruction sheet

TeSys GV4P - Motor Circuit Breakers - Instruction Sheet

Open

Product data sheet

Open

Catalog

TeSys - Catalog 2026 - Innovative and connected solutions for motor starters

Open

Declaration of Conformity (Sustainability)

GV4PE115B EU RoHS Directive

Open

Environmental Disclosure

MotBreak GV4P Therm/Mag 115A 50kA Elink

Open

Circularity Profile

MotBreak GV4P Therm/Mag 115A 50kA Elink

Open
