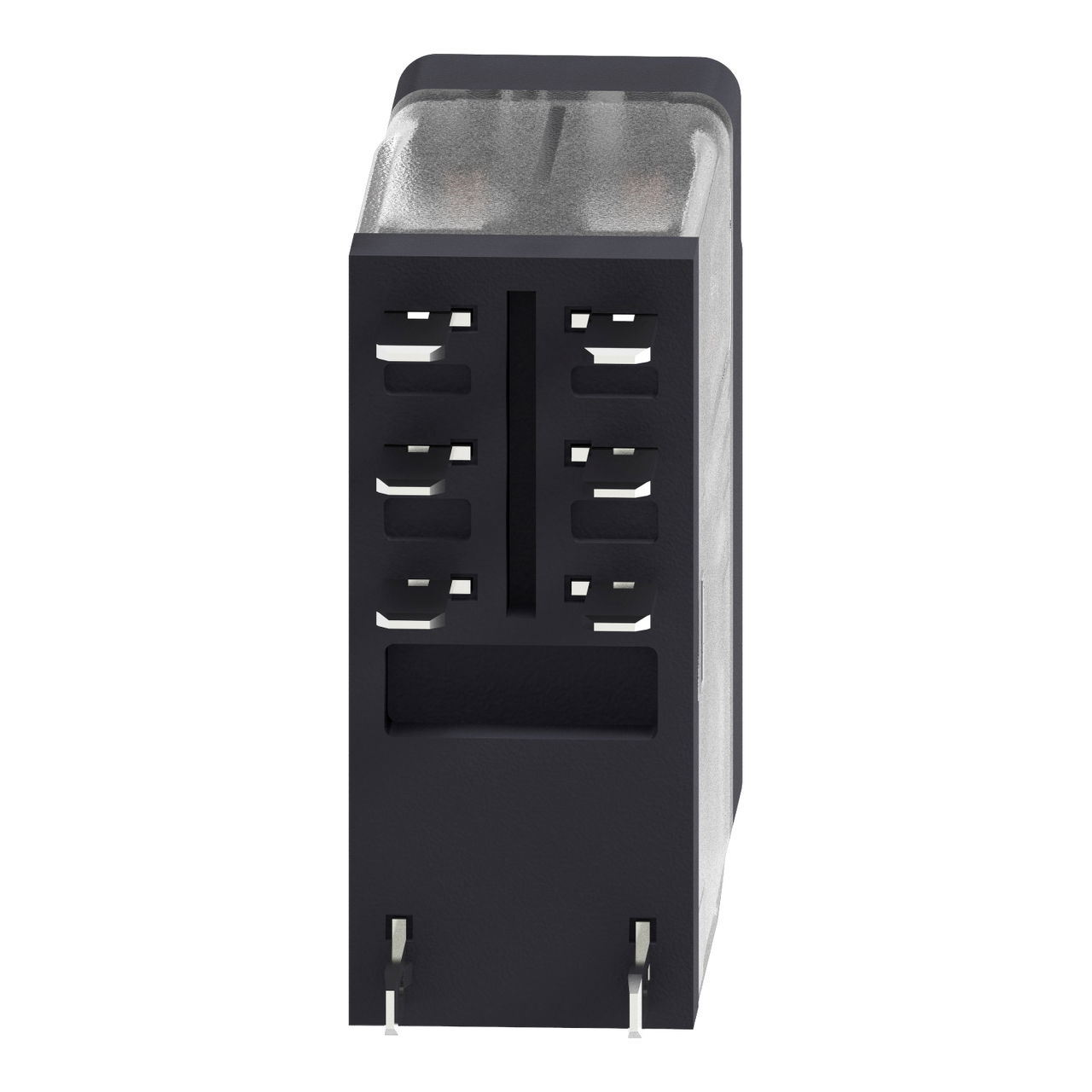

Interface plug-in relay, 5 A, 2 CO, lockable test button, 24 V DC – Image 2 of 10

Interface plug-in relay, 5 A, 2 CO, lockable test button, 24 V DC – Image 3 of 10

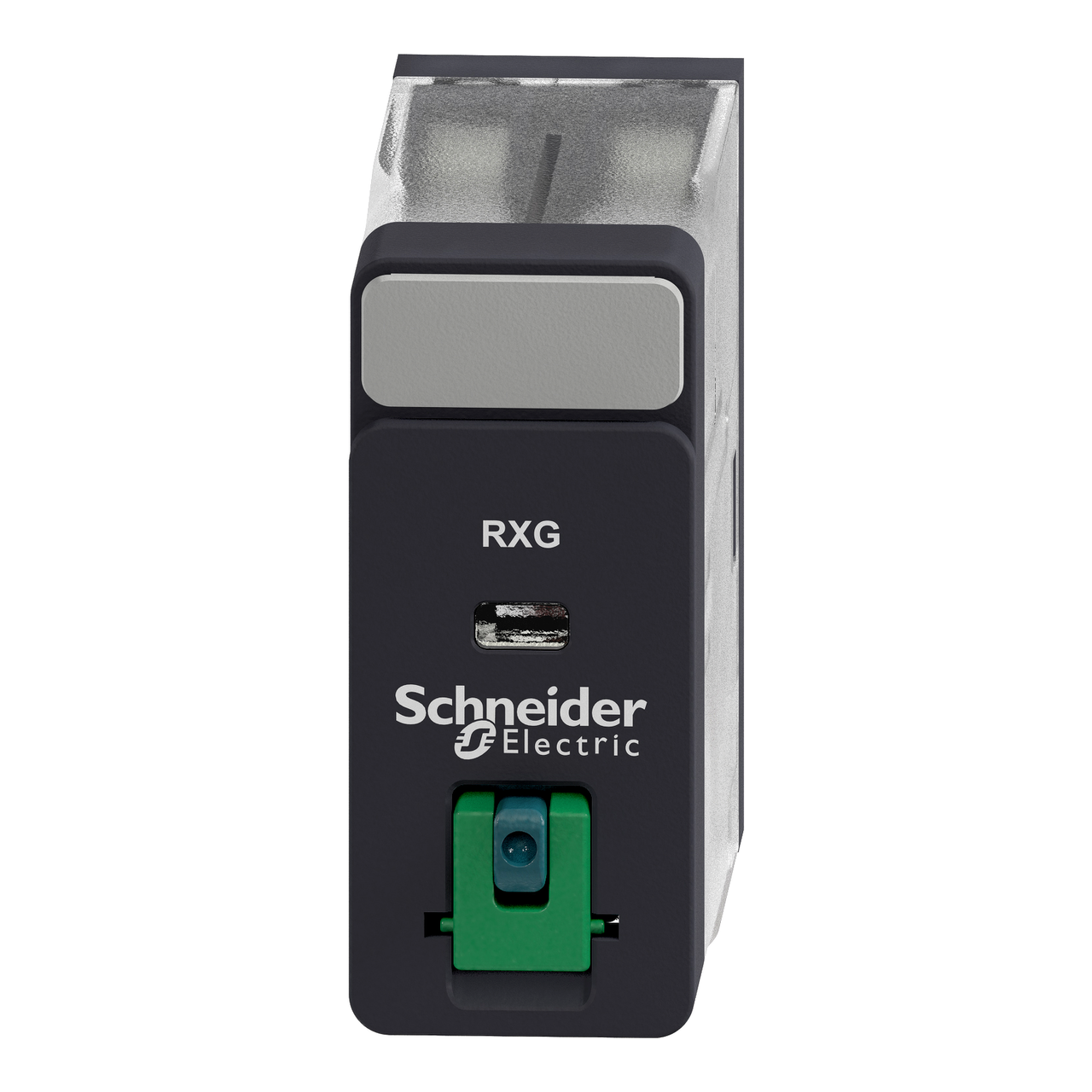

Interface plug-in relay, 5 A, 2 CO, lockable test button, 24 V DC – Image 4 of 10

Interface plug-in relay, 5 A, 2 CO, lockable test button, 24 V DC – Image 5 of 10

Interface plug-in relay, 5 A, 2 CO, lockable test button, 24 V DC – Image 6 of 10

Interface plug-in relay, 5 A, 2 CO, lockable test button, 24 V DC – Image 7 of 10

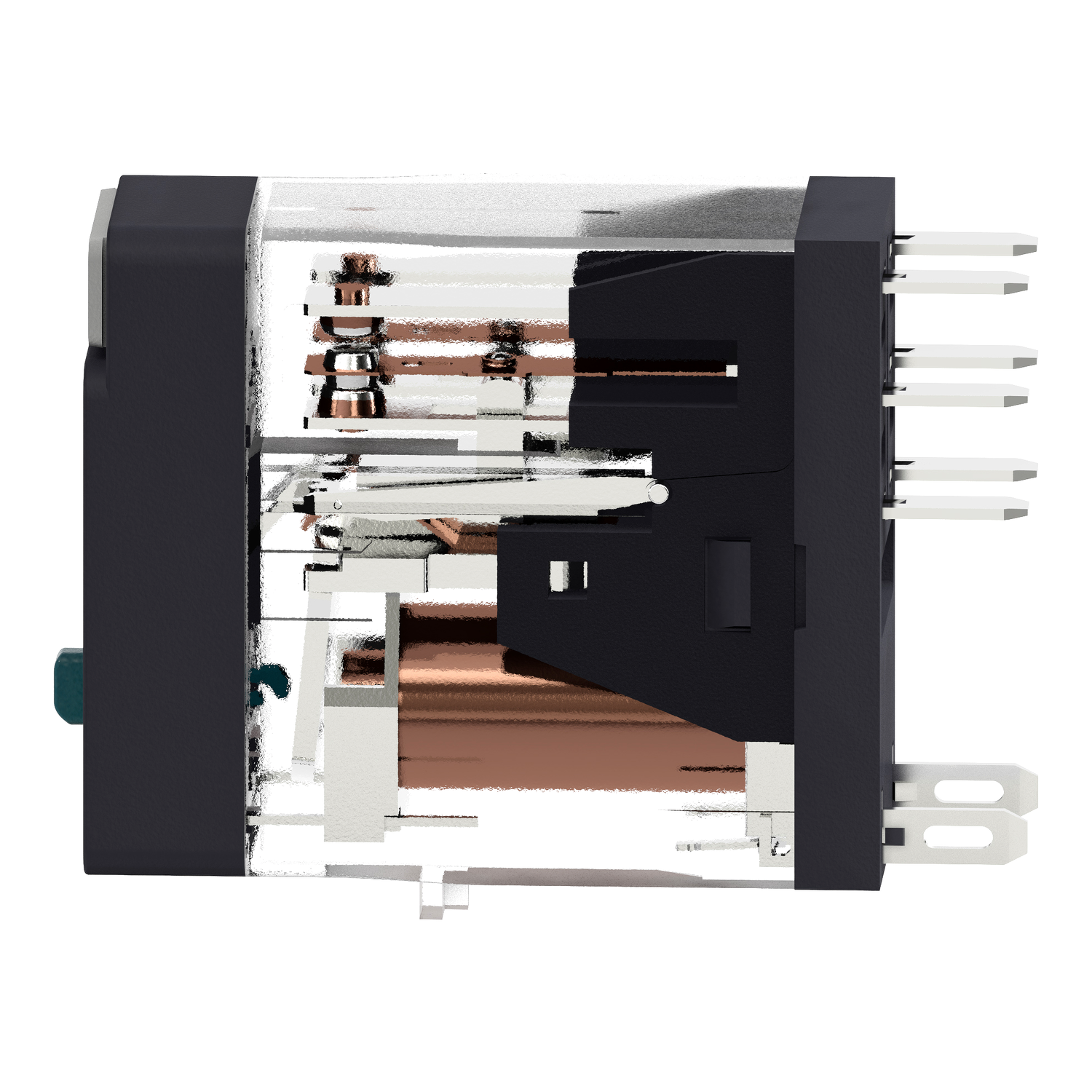

Interface plug-in relay, 5 A, 2 CO, lockable test button, 24 V DC – Image 8 of 10

1 / 10

Interface plug-in relay, 5 A, 2 CO, lockable test button, 24 V DC

Name: Interface plug-in relay, 5 A, 2 CO, lockable test button, 24 V DC
Brand: Schneider Electric
SKU: RXG21BD
Availability: InStock

Interface plug-in relay, 5 A, 2 CO, lockable test button, 24 V DC by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £5.19 to £8.06 excl. VAT. Voltimum+ members earn 1 point per unit.

"This Harmony RXG plug-in relay socket has a coil control voltage of 24V DC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RXG21BD

EAN: 3606480689062

GTIN: 3606480689062

MPN: RXG21BD

Loyalty points: 1

Price range: £ 5.19 - £ 8.06 Excl. VAT

Specifications

Depth	28.8 mm
Width	13 mm
Height	34.5 mm
Nominal current	5 A
Material contact	Other
Drive, polarization	Polarized
With LED indication	no
Complete with socket	no
Operating voltage DC
Max. starting current	-
Type of switch contact	Single contact
With detachable clamps	no
Degree of protection (IP)	IP40
Drive, switching attitude	Mono stable
Material of contact insert	Other
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Voltage type for actuating	DC
Material of contact surface	Other
Type of electric connection	Flat plug-in connection
With forced-guided contacts	yes
Rated control supply voltage DC
Voltage type (operating voltage)	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Number of contacts as change-over contact	2
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
Relay technology category according to IEC 61810-7	-
