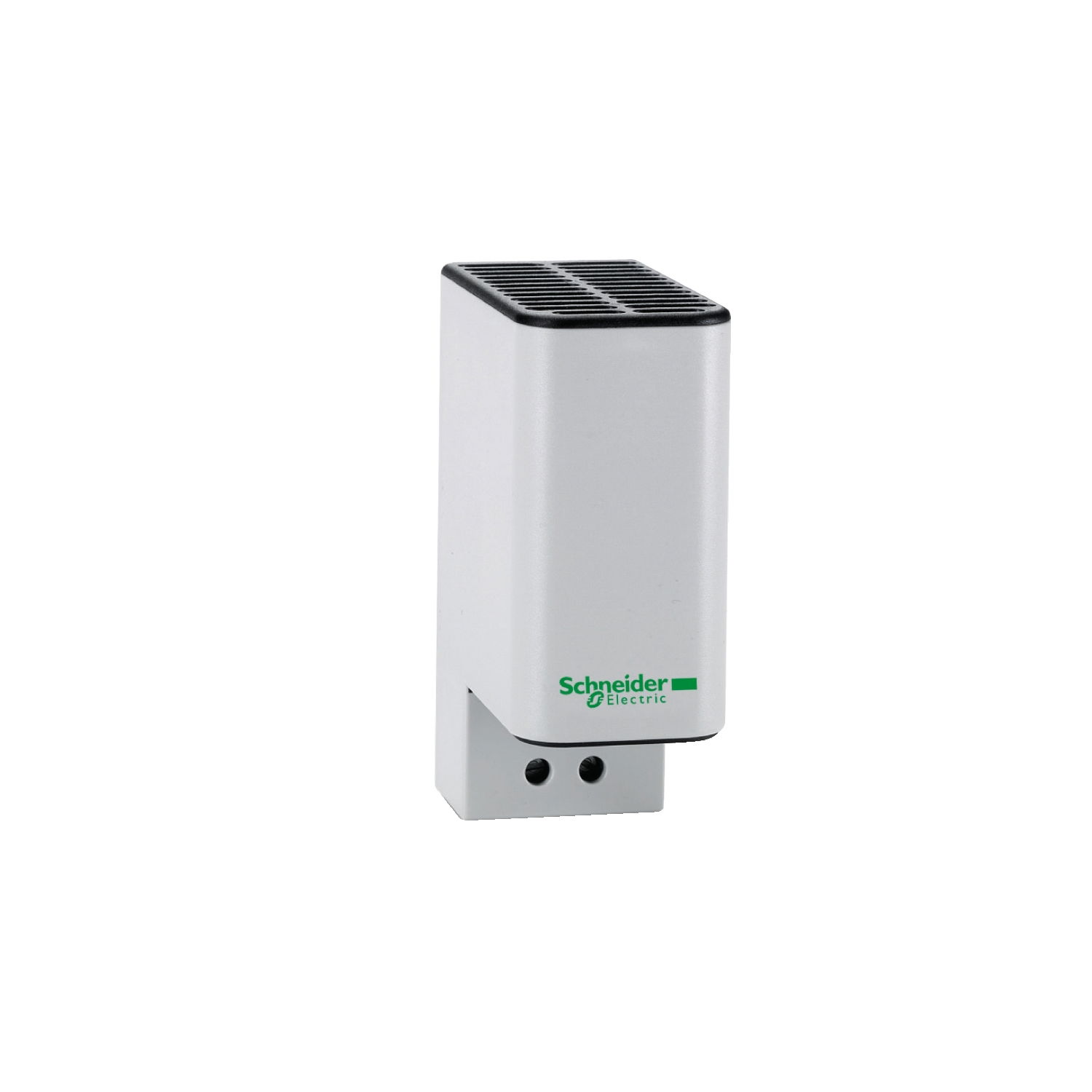

ClimaSys PTC heating resistance 20W,110-250V insulate

Link copied
SKU
EAN
GTIN
MPN

ClimaSys PTC heating resistance 20W,110-250V insulate by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 3 of them. Trade prices range from £44.28 to £44.72 excl. VAT. Voltimum+ members earn 6 points per unit.

ClimaSys PTC heating resistance insulate. 20W, 110-250V AC, 50/60 Hz. (-40 to 70)°C temp for operation. Electrical connection is 4 screw terminals 2.5 mm². 35 mm DIN rail mounting support. Extruded aluminium body. IP20, Insulation Class II. Electrical protection needed, must be installed with a thermal controller.

Voltimum+ Loyalty Programme Loyalty points: 6

Price range: £ 44.28 - £ 44.72 Excl. VAT

Specifications

Depth 75 mm
Width 38 mm
Height 98 mm
With fan no
Rated power 20 W
Voltage type AC
Operating voltage DC
Degree of protection (IP) IP20
Operating voltage AC 60 Hz
With room temperature controller no

Documents

Declaration of Conformity (Sustainability)

NSYCR20WU2C REACh Regulation

Open

User guide

ProClima - Web Software User Guide (English)

Open

Instruction sheet

INSTRUCTIONS COVERED HEATERS

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYCR20WU2C EU RoHS Directive

Open

Declaration of conformity

DoC_UE_Climasys_Heaters

Open

Environmental Disclosure

ClimaSys Resistance heater

Open
