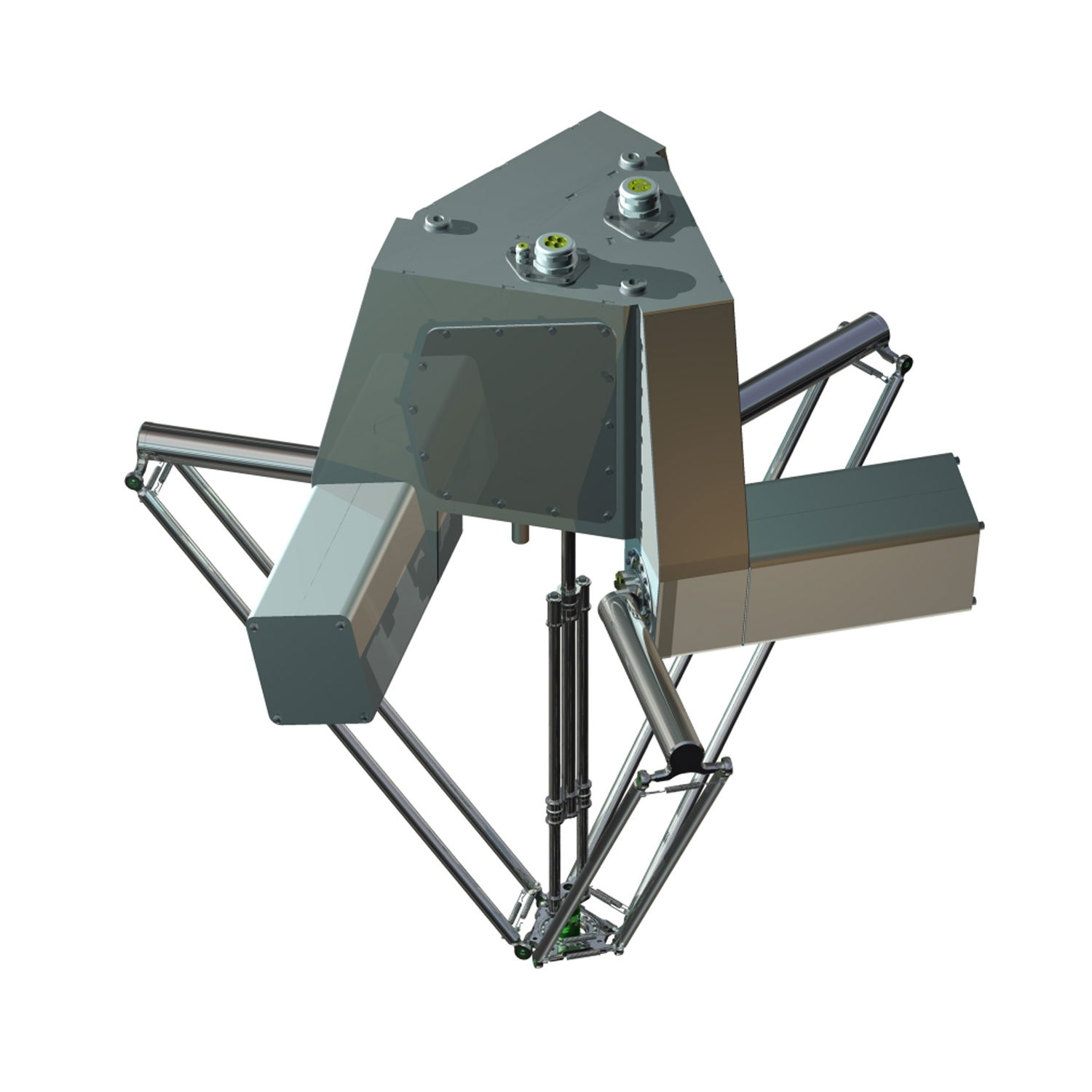

Delta 3 robot, P4, 3-4 axis, 15 kg permissible load, 0-1200 mm working envelop

This robot belongs to Lexium T- P, which is figuring Delta robots for pick & place solutions. This is a P4 Standard delta robot with 3 to 5 axes. Its permanent permissible load reaches 15kg. It has a 1200mm working envelop. Lexium P are Delta 3 robots designed for fast pick-and-place with payloads of up to 15kg. It has a rotational axis and is equipped with Lexium 62 ILM integrated drives. It weighs 120kg. This robotics solution is an add-on to the PacDrive product line, designed to satisfy the rapidly rising demand for the integration of robots into machine design using Lexium components. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. This robot is compatible with spare parts such as motor cover, fasteners, gearbox for main axis, parallel plate, guiding tubes for telescopic axis, sealing set for cover, for motor cover, for gearboxes, ball pins and ball sockets. And more. With its PacDrive-based robotics solution, Schneider Electric has integrated Lexium T and P robots into a standard automation solution. Lexium T, P (Delta 2 and delta 3 kinematics) offers a fully integrated solution for many pick-and-place packaging and handling applications. The stainless kinematics are well suited for the food, pharma, cosmetics, and beverage industries.
