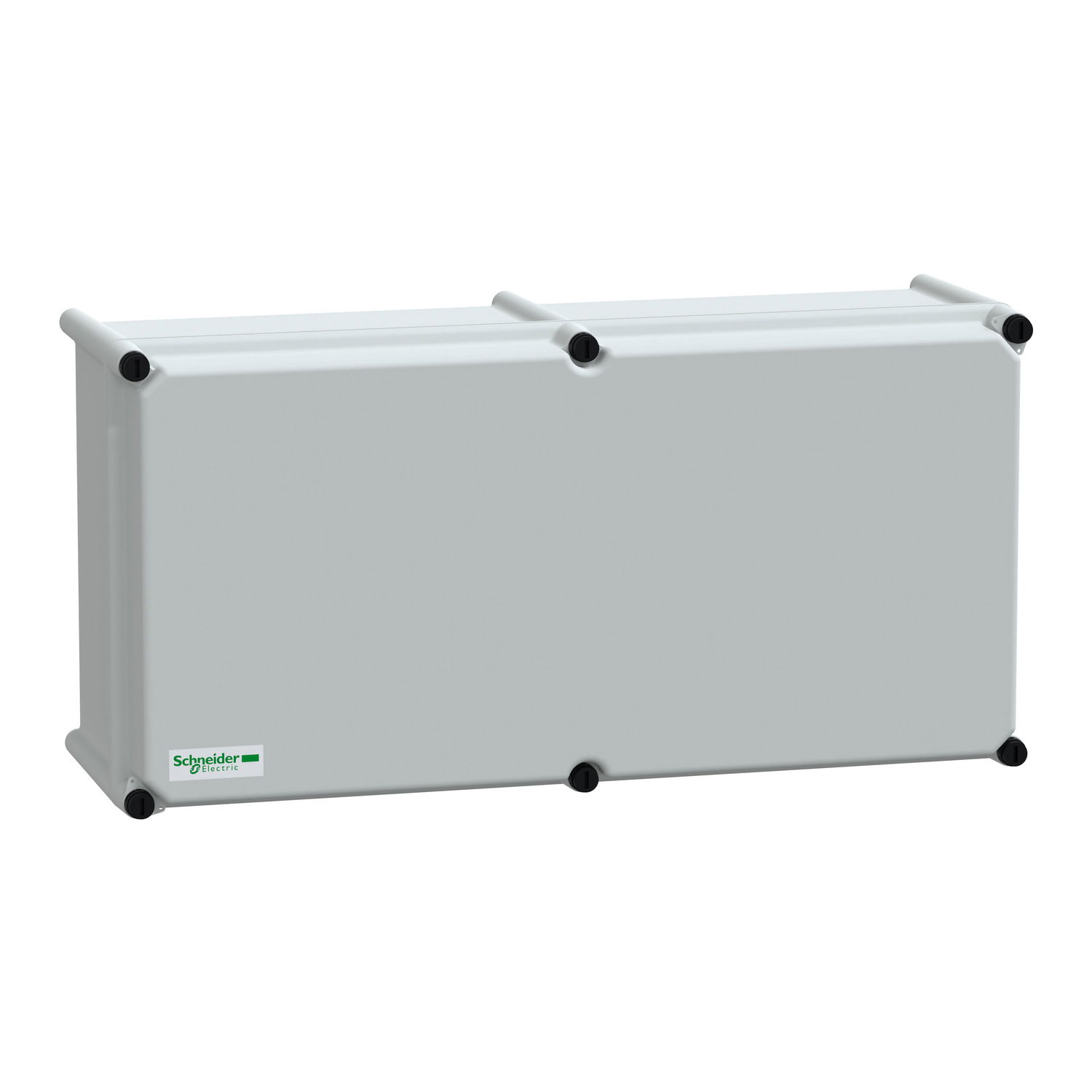

PLS box, polyester rear, opaque PC cover IP65 27x54x18cm

Link copied
SKU
EAN
GTIN
MPN

PLS box, polyester rear, opaque PC cover IP65 27x54x18cm by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, City Electrical Factors and TLA. It is currently in stock at 2 of them. Trade prices range from £97.07 to £122.69 excl. VAT. Voltimum+ members earn 17 points per unit.

Voltimum+ Loyalty Programme Loyalty points: 17

Price range: £ 97.07 - £ 122.69 Excl. VAT

Specifications

Depth 180 mm
Width 540 mm
Colour Grey
Height 270 mm
With lock no
RAL-number 7035
Cover model Closed
Inner depth 164.5 mm
Built-in depth -
Impact strength IK09
Housing material Plastic
Circuit integrity None
Extension possible yes
With mounting plate no
Transparent cover/door no
Suitable for outdoor use yes
Degree of protection (NEMA) 4X
Material plate thickness cabinet 2 mm
Material plate thickness door/cover 2.5 mm
Number of openings for flange plates -

Documents

Declaration of Conformity (Sustainability)

NSYPLSC2754G REACh Regulation

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYPLSC2754G EU RoHS Directive

Open

Environmental Disclosure

PEP-PanelSeT PLS

Open

CAD

Open

CAD

Open

CAD

Open
