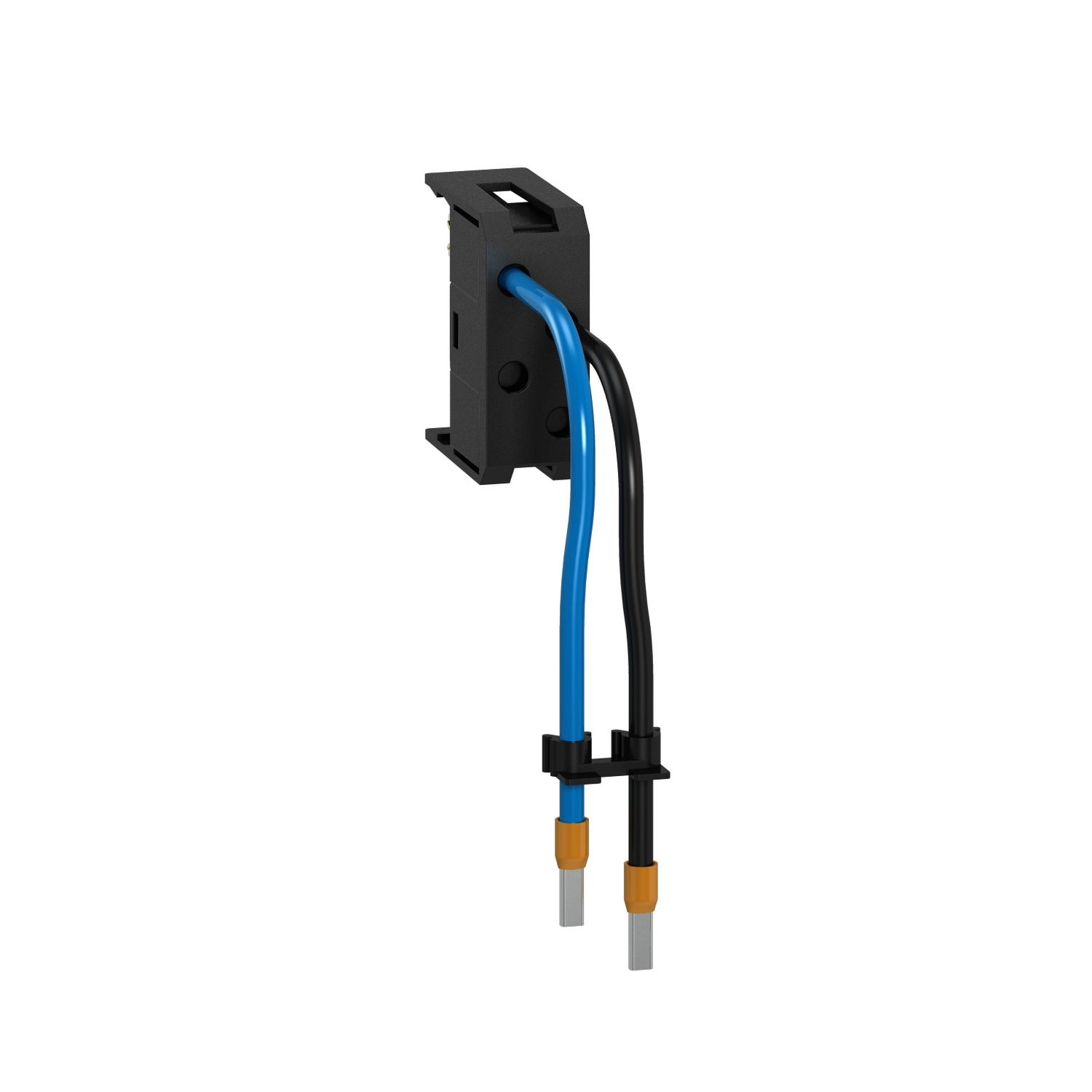

PLUG BI 32A FIL LG 1000MM

Link copied
SKU
EAN
GTIN
MPN

PLUG BI 32A FIL LG 1000MM by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and TLA. It is currently in stock at all of them. Trade prices range from £16.06 to £25.34 excl. VAT. Voltimum+ members earn 1 point per unit.

Linergy 1P + N plug outlet. It provides 1P+N, 1 point and 2 cables with 4 mm². The conventional free air thermal current is 32A. Sold in lots of 6 units. It conforms to IEC 60439 standard. Multi standards certified (CSA, DNV, UL, LROS (Lloyds register of shipping). It is compliant with Green Premium (RoHS/REACH).

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 16.06 - £ 25.34 Excl. VAT

Specifications

Width 38 mm
Colour Grey
Height 46 mm
Length 18 mm
Protection None
RAL-number 7021
With locking yes
Branch off type Cable
Phase selection no
Rated voltage AC 50 Hz
Degree of protection (IP) IP20
Number of NEMA socket outlets 0
Number of conductors (without earthing) 2
