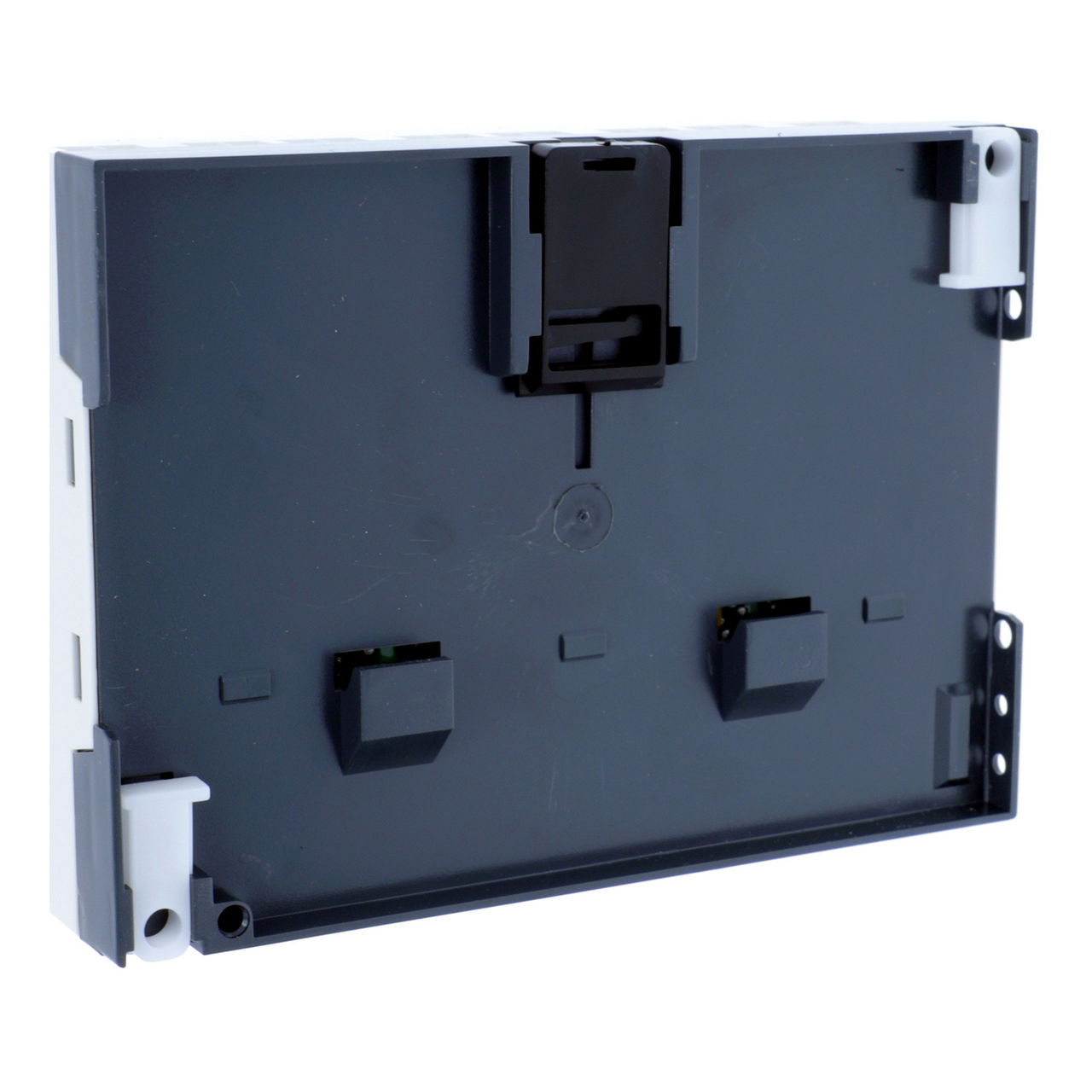

Compact smart relay Zelio Logic - 20 I O - 24 V DC - clock - display
This product is part of Smart Relay - Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This Zelio Logic compact smart relay features 20 I/Os, local display, 0 to 240 with ladder and 0 to 500 with FBD programming control scheme lines. It is a module with rated supply voltage of 24V DC and cycle time of 6ms to 90ms. It offers 12 resistive discrete inputs with voltage of 24V DC, 6 analogue input ranges from 0V to 10V, 0V to 12V and 8 transistor outputs with voltage of 24V. It is an IP20 and IP40 rated product. It weighs 0.28kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-6 Fc and EN/IEC 61000-4-11 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Product identifiers
SKU: SR2B202BD
EAN: 3389110549430
GTIN: 3389110549430
MPN: SR2B202BD
Price range: £ 181.49 - £ 232.04 Excl. VAT
Categories
Features
|
Depth
|
59.5 mm
|
|
Width
|
124.6 mm
|
|
Height
|
90 mm
|
|
Expandable
|
no
|
|
Redundancy
|
no
|
|
Basic device
|
yes
|
|
With display
|
yes
|
|
IO link master
|
no
|
|
Expansion device
|
no
|
|
Power consumption
|
3 W
|
|
Supply voltage DC
|
|
|
Switching current
|
0.5 A
|
|
With relay output
|
no
|
|
Radio standard GSM
|
no
|
|
Radio standard GPRS
|
no
|
|
Radio standard UMTS
|
no
|
|
Rack-assembly possible
|
no
|
|
With optical interface
|
no
|
|
With time switch clock
|
yes
|
|
Front built-in possible
|
yes
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Number of digital inputs
|
12
|
|
Radio standard Bluetooth
|
no
|
|
Degree of protection (IP)
|
IP20
|
|
Number of analogue inputs
|
6
|
|
Number of digital outputs
|
8
|
|
Number of analogue outputs
|
0
|
|
Radio standard WLAN 802.11
|
no
|
|
SIL according to IEC 61508
|
None
|
|
Suitable for rail mounting
|
yes
|
|
Number of HW-interfaces USB
|
0
|
|
Supporting protocol for ASI
|
no
|
|
Supporting protocol for CAN
|
no
|
|
Supporting protocol for KNX
|
no
|
|
Supporting protocol for LON
|
no
|
|
Number of HW-interfaces other
|
1
|
|
Number of interfaces PROFINET
|
0
|
|
Suitable for safety functions
|
no
|
|
Voltage type (supply voltage)
|
DC
|
|
Wall mounting/direct mounting
|
yes
|
|
Number of HW-interfaces RS-232
|
1
|
|
Number of HW-interfaces RS-422
|
0
|
|
Number of HW-interfaces RS-485
|
0
|
|
Supporting protocol for Modbus
|
no
|
|
Supporting protocol for SERCOS
|
no
|
|
Supporting protocol for TCP/IP
|
no
|
|
Supporting protocol for SUCONET
|
no
|
|
Number of HW-interfaces parallel
|
0
|
|
Number of HW-interfaces wireless
|
0
|
|
Supporting protocol for EtherCAT
|
no
|
|
Supporting protocol for INTERBUS
|
no
|
|
Supporting protocol for PROFIBUS
|
no
|
|
Appendant operation agent (Ex ia)
|
no
|
|
Appendant operation agent (Ex ib)
|
no
|
|
Explosion safety category for gas
|
None
|
|
Supporting protocol for DeviceNet
|
no
|
|
Supporting protocol for PROFIsafe
|
no
|
|
Explosion safety category for dust
|
None
|
|
Number of HW-interfaces serial TTY
|
0
|
|
Supporting protocol for EtherNet/IP
|
no
|
|
Supporting protocol for PROFINET IO
|
no
|
|
Supporting protocol for SafetyBUS p
|
no
|
|
Supporting protocol for Data-Highway
|
no
|
|
Supporting protocol for PROFINET CBA
|
no
|
|
Supporting protocol for INTERBUS-Safety
|
no
|
|
Supporting protocol for DeviceNet Safety
|
no
|
|
Supporting protocol for other bus systems
|
no
|
|
Certified for UL hazardous location class I
|
no
|
|
Number of HW-interfaces industrial Ethernet
|
0
|
|
Supporting protocol for Foundation Fieldbus
|
no
|
|
Certified for UL hazardous location class II
|
no
|
|
Certified for UL hazardous location class III
|
no
|
|
Performance level according to EN ISO 13849-1
|
None
|
|
Certified for UL hazardous location division 1
|
no
|
|
Certified for UL hazardous location division 2
|
no
|
|
Supporting protocol for AS-Interface Safety at Work
|
no
|
|
Certified for UL hazardous location group D (propane)
|
no
|
|
Certified for UL hazardous location group B (hydrogen)
|
no
|
|
Certified for UL hazardous location group C (ethylene)
|
no
|
|
Certified for UL hazardous location group A (acetylene)
|
no
|
|
Certified for UL hazardous location group E (metal dusts)
|
no
|
|
Certified for UL hazardous location group F (carbonaceous dusts)
|
no
|
|
Certified for UL hazardous location group G (non-conductive dusts)
|
no
|
