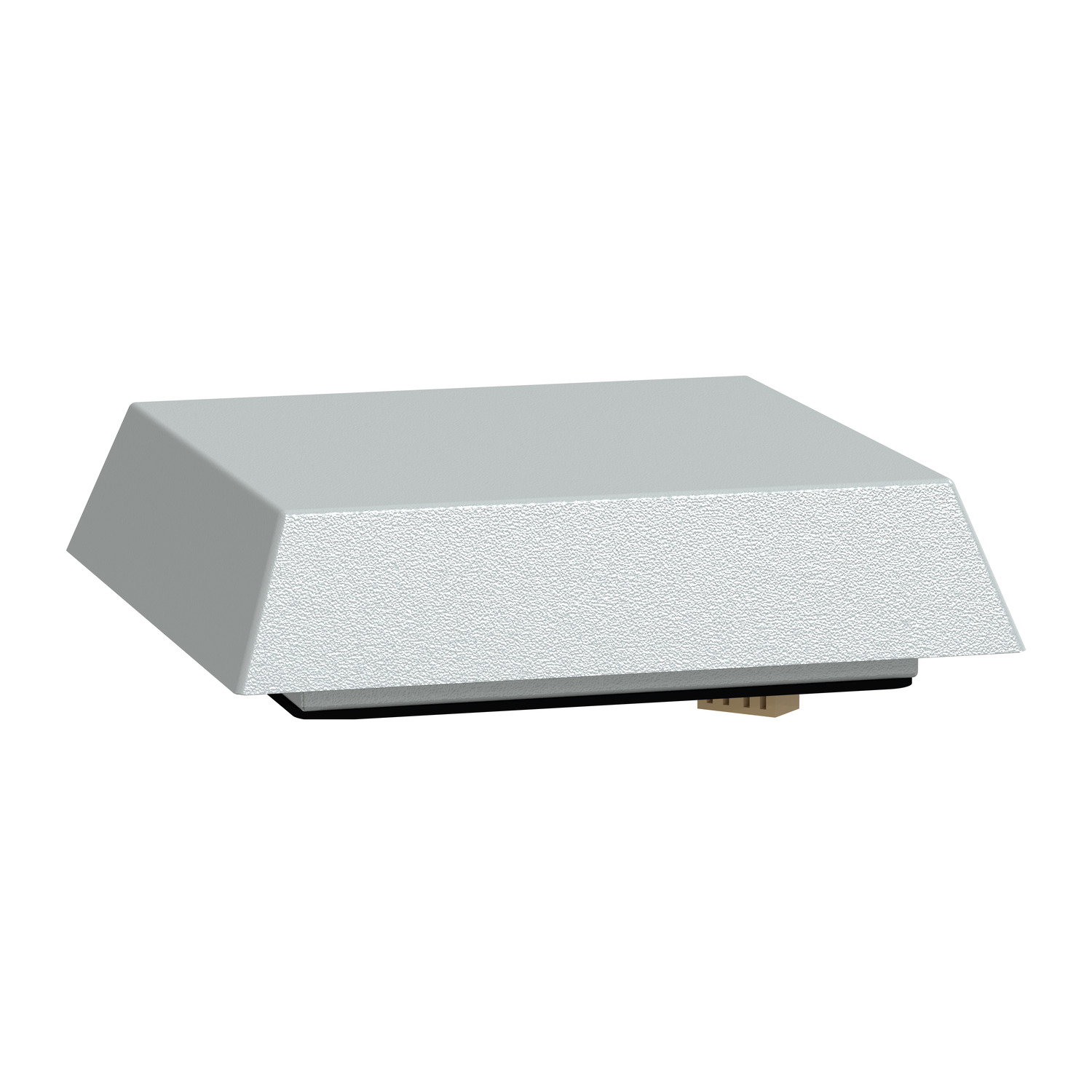

ClimaSys forced vent. roof, 575m3/h, 230V, with roof outlet grille and filter G2

ClimaSys forced vent. roof, 575m3/h, 230V, with roof outlet grille and filter G2 by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £588.83 to £622.75 excl. VAT. Voltimum+ members earn 77 points per unit.

ClimaSys 85W top hood with fan 228 x 228mm with G2 filter ensures effective temperature control inside Prisma P, Prisma PH, Prisma iPM M and enclosure enclosures The fan performs free flow rate of 575 m3/h at 50 Hz and 350 m3/h with outlet grille cut-out 291 x 291mm The external width is 340mm, height is 96mm and depth is 340mm The accessory is made up of 1 hood for top of enclosure, 1 fan and 1 fixing elements The hood color is grey (RAL 7035) Ingress protection rating is IP54 Input voltage is 230 V 50/60 Hz Noise level is 64-64 dB Protection IP54.

Product identifiers

SKU: NSYCVF575M230MF
EAN: 3606480151392
GTIN: 3606480151392
MPN: NSYCVF575M230MF

Voltimum+ Loyalty Programme Loyalty points: 77

Price range: £ 588.83 - £ 622.75 Excl. VAT

Categories

Weatherproof Enclosures Enclosures & Panels

ETIM group

Control cabinet systems

Specifications

Depth 340 mm
Width 340 mm
Colour Grey
Height 96 mm
RAL-number 7035
EMC-version no
Rated power 85 W
With filter no
Air circulator yes
Number of fans 1
Roof ventilator yes
With protective cover no
Degree of protection (IP) IP54
Operating voltage AC 60 Hz
Degree of protection (NEMA) 13
Suitable for 19 inch rack mounting no
