Schneider Electric
Popularity Top 10% More about Popularity
Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales and basket transfers. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

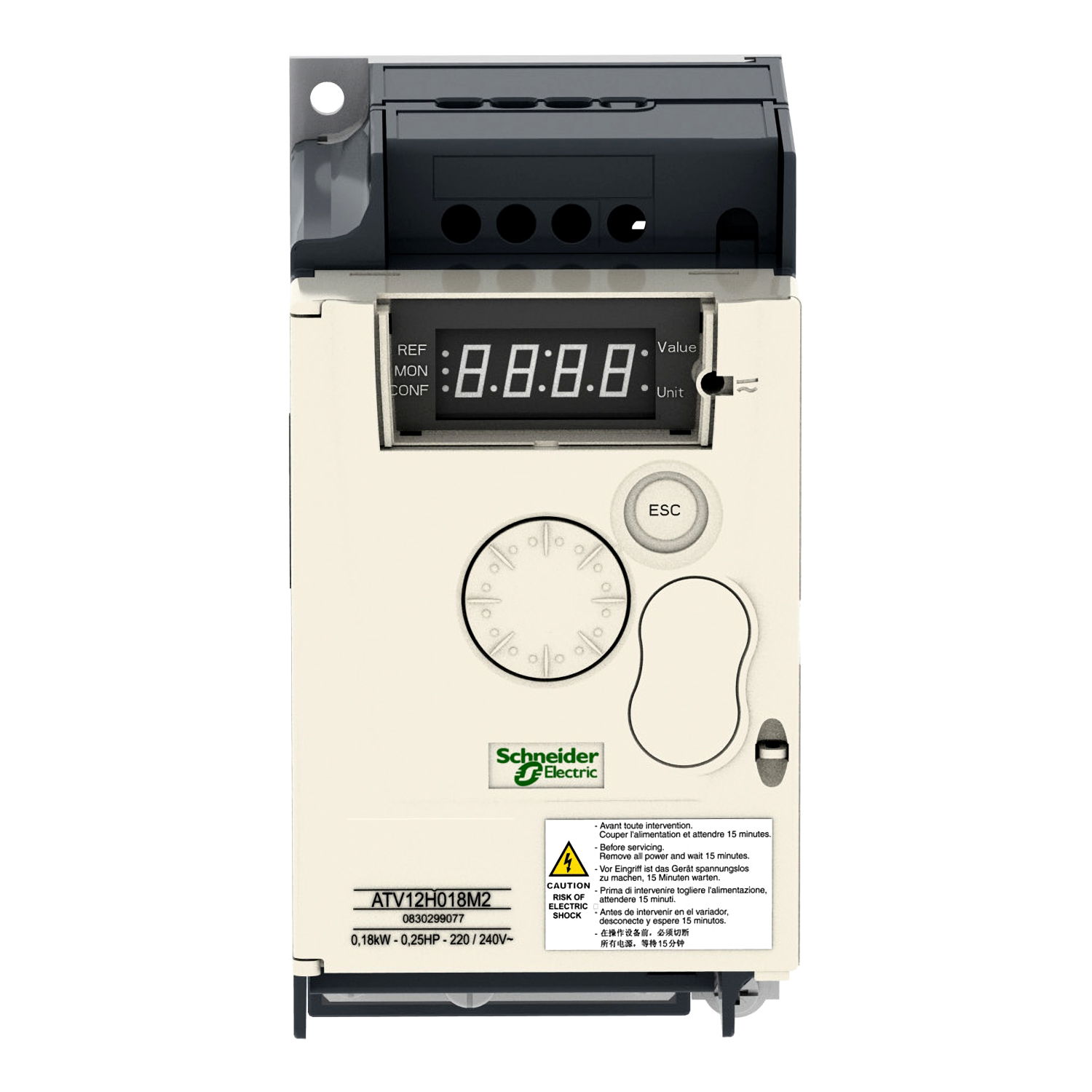

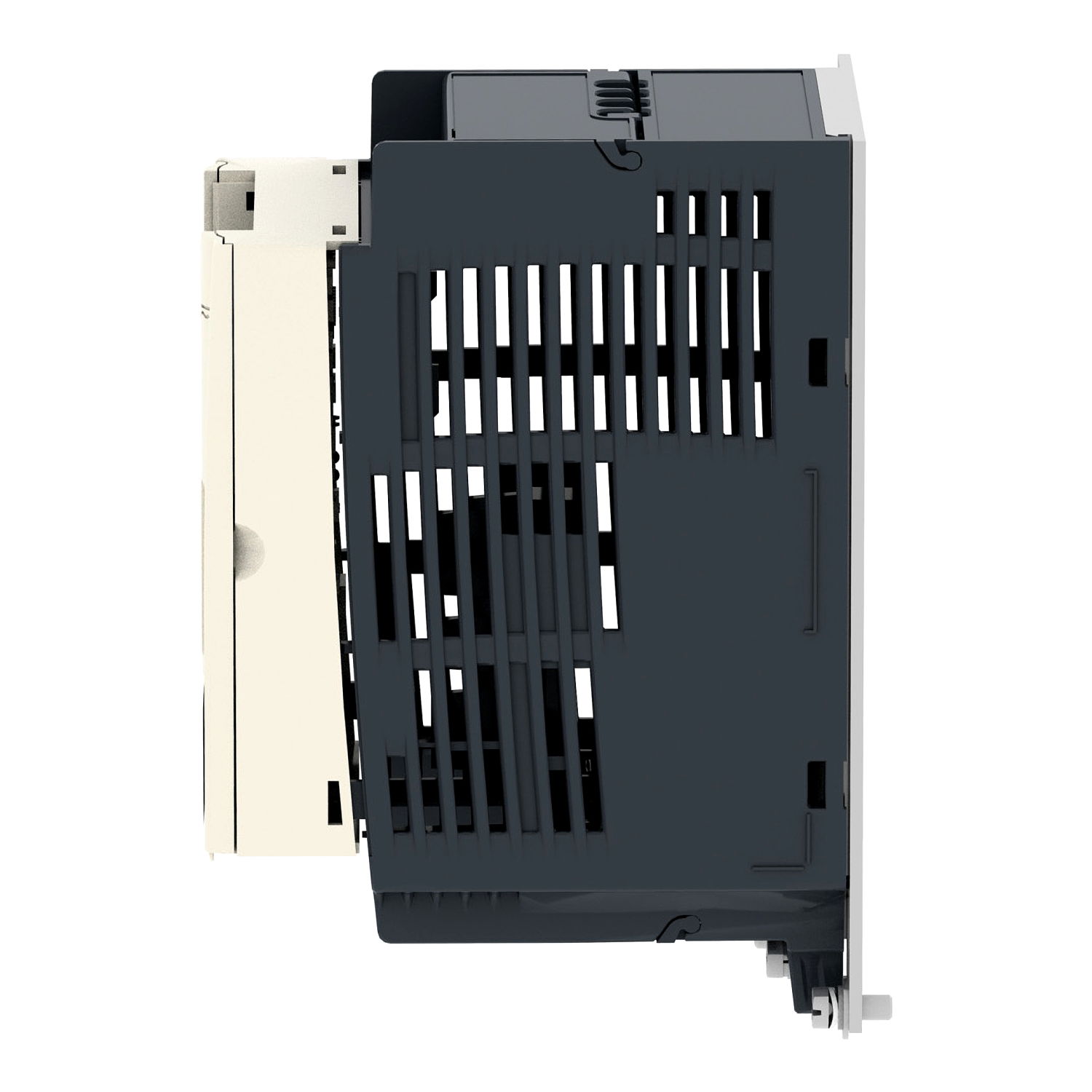

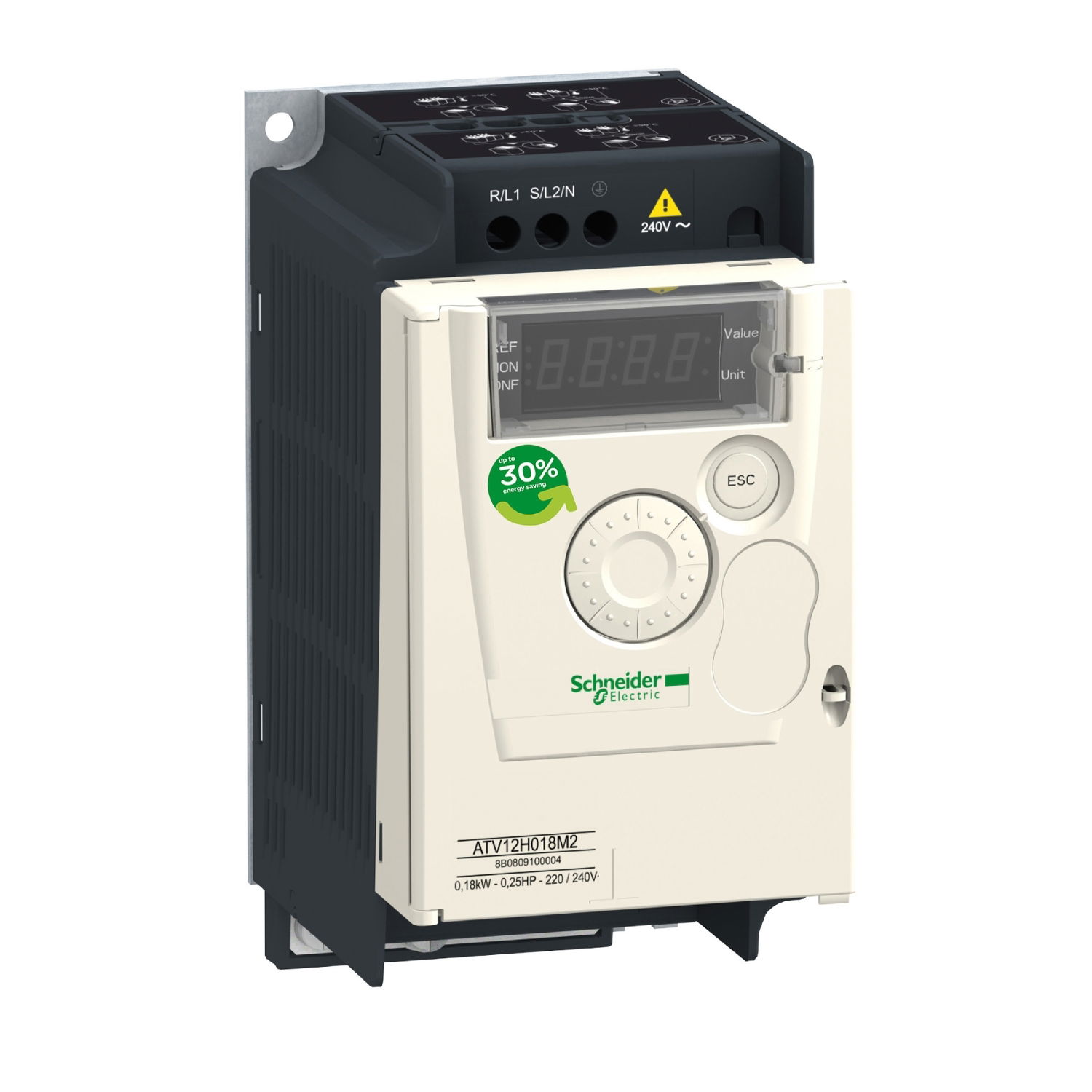

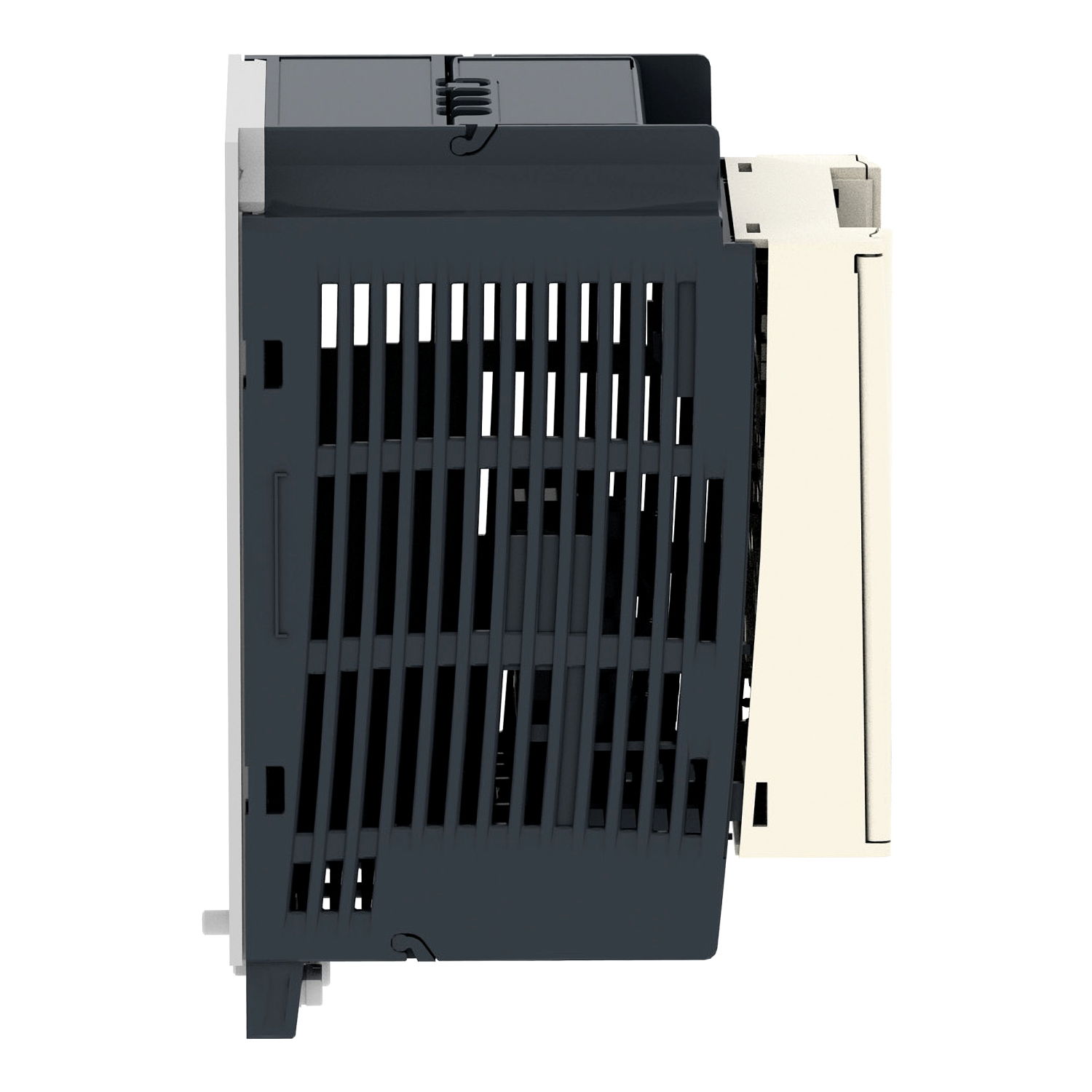

Variable speed drive ATV12 - 0.37kW - 0.55hp - 200..240V - 1ph - with heat sink

Variable speed drive ATV12 - 0.37kW - 0.55hp - 200..240V - 1ph - with heat sink by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at all of them. Trade prices range from £114.40 to £152.91 excl. VAT. Voltimum+ members earn 20 points per unit.

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.37kW / 0.55hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

Product identifiers

SKU: ATV12H037M2
EAN: 3606480071058
GTIN: 3606480071058
MPN: ATV12H037M2

Voltimum+ Loyalty Programme Loyalty points: 20

Price range: £ 114.40 - £ 152.91 Excl. VAT

Categories

Contactors & Motor Starters Switchgear & Circuit Protection

ETIM group

Low-voltage industrial components

Specifications

Depth 121.2 mm
Width 72 mm
Height 143 mm
Mains voltage
Mains frequency 50/60 Hz
Power consumption -
Type of converter I converter
With PC connection yes
With control element yes
Number of phases input 1
Number of phases output 3
Degree of protection (IP) IP20
Number of digital outputs 1
Number of analogue outputs 1
Number of HW-interfaces USB 0
Supporting protocol for CAN no
Supporting protocol for LON no
Number of HW-interfaces other 8
Integrated breaking resistance no
Number of HW-interfaces RS-422 0
Supporting protocol for BACnet no
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Supporting protocol for INTERBUS no
Supporting protocol for DeviceNet no
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO no
Supporting protocol for Data-Highway no
Supporting protocol for INTERBUS-Safety no
Relative symmetric net voltage tolerance 10 %
Supporting protocol for other bus systems no
Number of HW-interfaces industrial Ethernet 0
Max. output at linear load at rated output voltage 0.37 kW
Max. output at quadratic load at rated output voltage 0.37 kW

Documents

Declaration of Conformity (Sustainability)

ATV12H037M2 REACh Regulation

Open

User guide

ATV12 user manual

Open

Instruction sheet

ATV12 Quick Start annex - SCCR

Open

Product data sheet

Open

Catalog

Altivar_Process_ATV600_Catalog

Open

Declaration of Conformity (Sustainability)

ATV12H037M2 EU RoHS Directive

Open

Declaration of conformity

ATV12 EU DECLARATION

Open

Circularity Profile

ALTIVAR 12 - 0.18-0.37 kW, Product End-of-Life Instructions

Open
