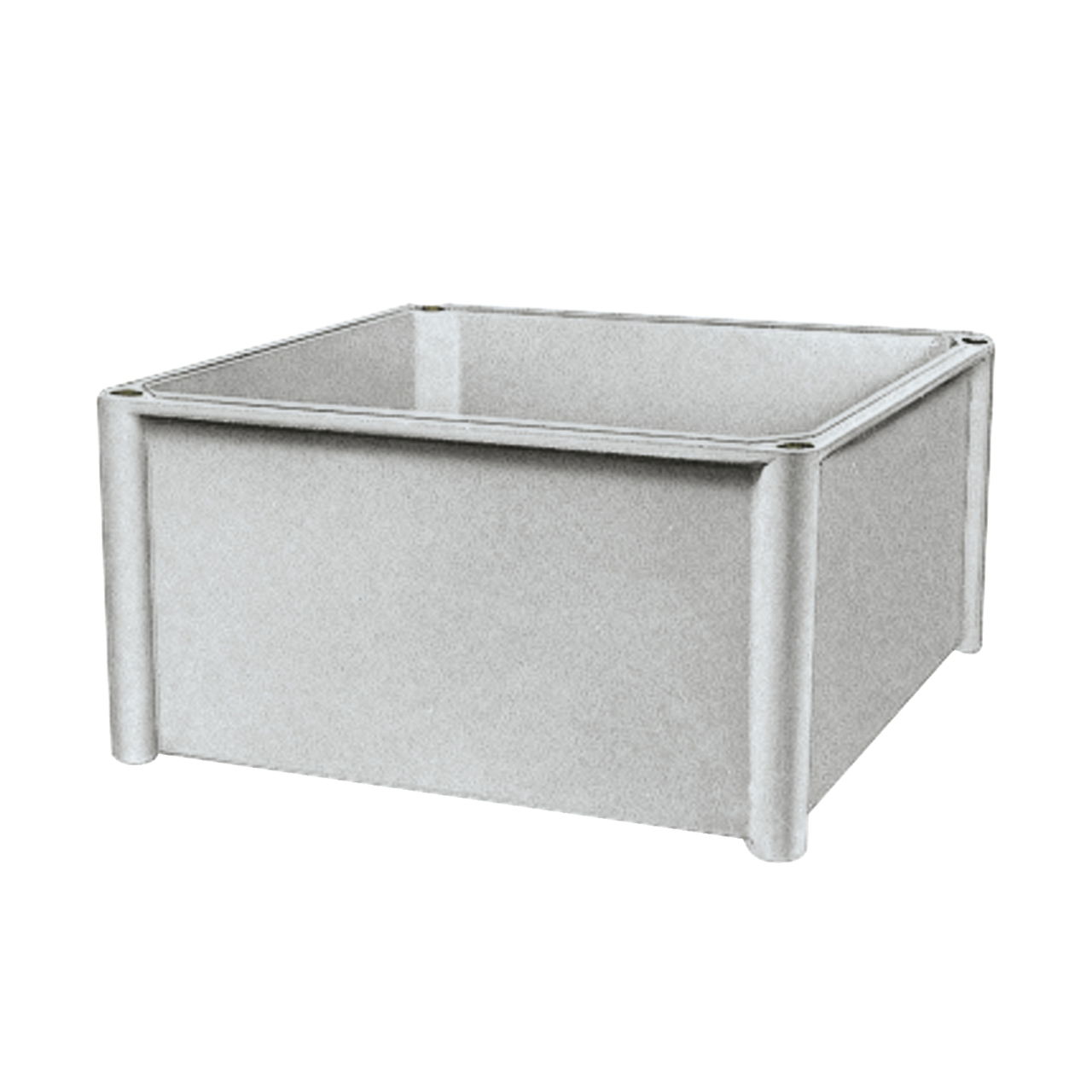

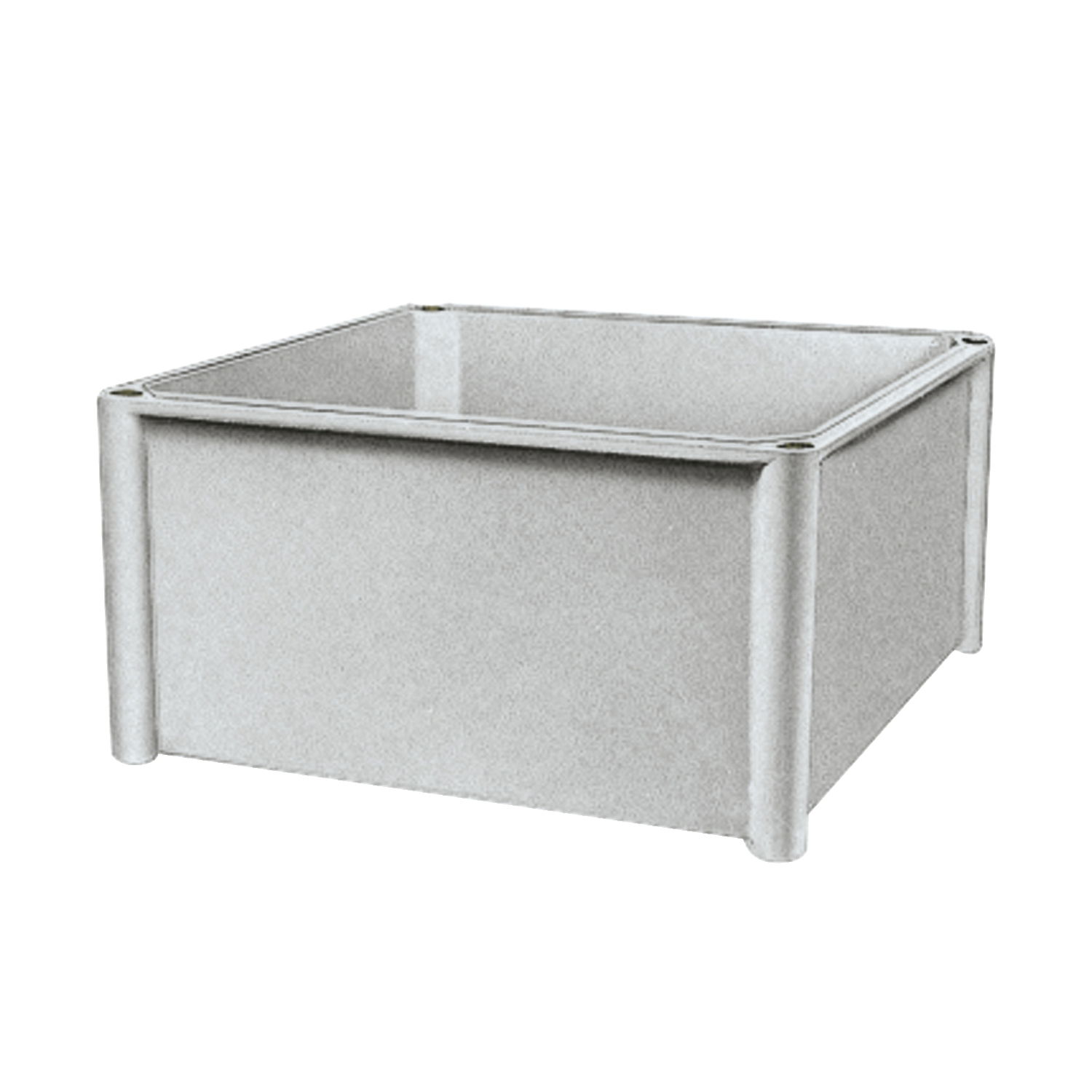

Polyester rear part of PLS box 27x54x13.5cm

Name: Polyester rear part of PLS box 27x54x13.5cm
Brand: Schneider Electric
SKU: NSYFPLS2754G
Availability: InStock

Product identifiers

SKU: NSYFPLS2754G

EAN: 3606480774003

GTIN: 3606480774003

MPN: NSYFPLS2754G

Loyalty points: 7

Price: £ 57.42 Excl. VAT

Distribution boards

Specifications

Depth	135 mm
Width	540 mm
Colour	Grey
Height	270 mm
With lock	no
RAL-number	7035
Cover model	None
Inner depth	122 mm
Type of door	None
Built-in depth	-
Number of rows	-
Impact strength	IK09
Mounting method	Surface mounted
Housing material	Plastic
Type of covering	None
Circuit integrity	None
Number of modules	-
Extension possible	yes
Surface protection	Untreated
With mounting plate	no
Nominal current (In)	-
Transparent cover/door	no
Number of conduit inlets	-
Suitable for outdoor use	yes
Degree of protection (IP)	IP66
Degree of protection (NEMA)	4X
Cover with overpressure release	no
Material plate thickness cabinet	2 mm
Suitable for lightning protection	no
Material plate thickness door/cover	-
Width in number of modular spacings	-
Number of openings for flange plates	-
Protection class according to IEC 61140	II
