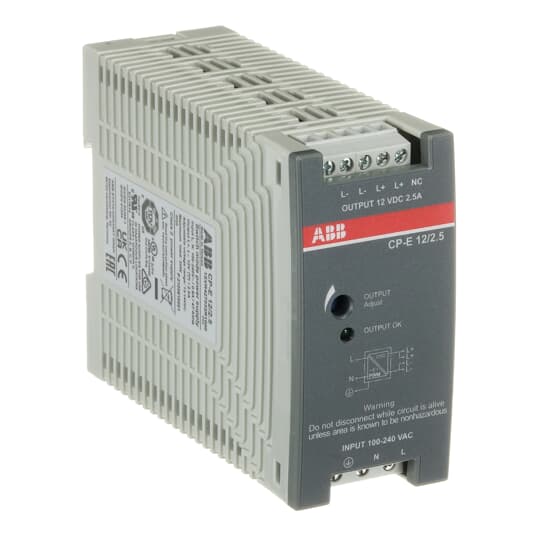

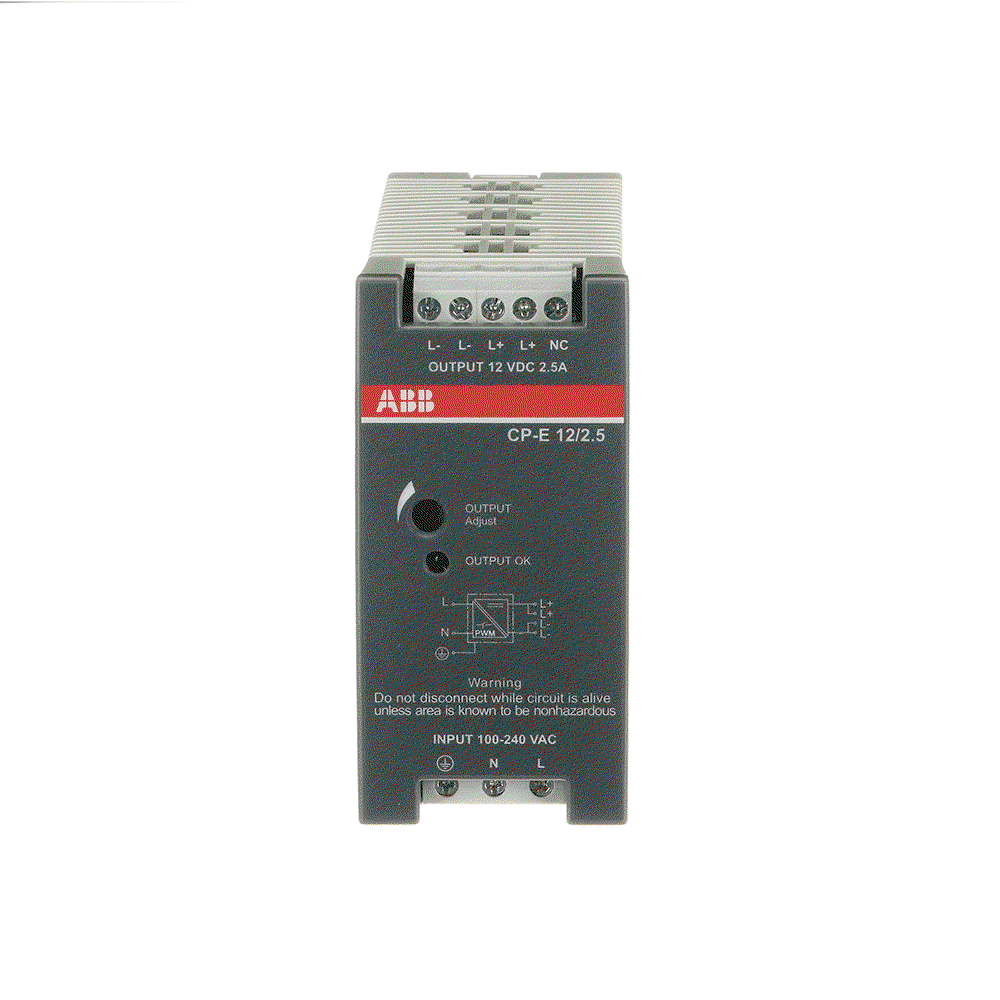

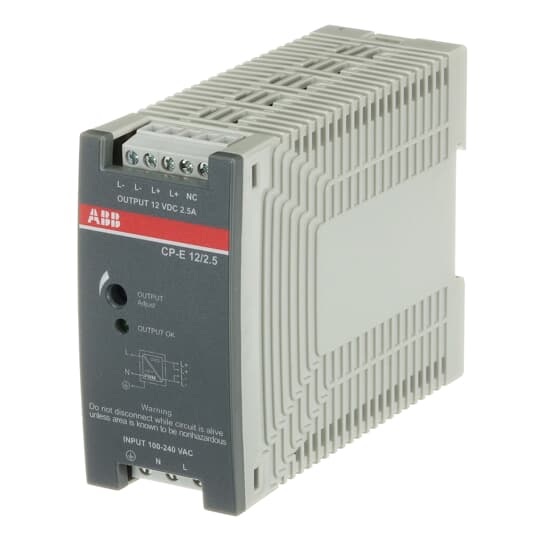

CP-E 12/2.5 Power supply In:100-240VAC Out: 12VDC/2.5A

Link copied
SKU
EAN
GTIN
MPN

CP-E 12/2.5 Power supply In:100-240VAC Out: 12VDC/2.5A by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, RS Components and Rexel Group. It is currently in stock at 2 of them. Trade prices range from £64.51 to £92.78 excl. VAT. Voltimum+ members earn 51 points per unit.

The CP-E 12/2.5 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 85-264 V AC and 90-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 30 W, rated output current is 2.5 A at an output voltage of 12 V DC. The output voltage is adjustable within a range of 12 to 14 V DC. The power supply provides a U/I output characteristic and allows parallel operation to enable redundancy. A redundancy unit is available as accessory.

Voltimum+ Loyalty Programme Loyalty points: 51

Price range: £ 64.51 - £ 92.78 Excl. VAT

Specifications

Depth 114
Width 40.5
Height 90
Stabilized yes
Power output 30
Built-in width 40.5
Built-in height 90
Modular version no
Short-circuit-proof yes
Max. output current 2 0
Wall mounting possible no
Direct mounting possible no
Output voltage stabilized yes
Suitable for rail mounting yes
Type of electric connection Screw connection
2nd secondary output voltage
Secondary voltage adjustable no
Rated supply voltage AC 60 Hz
Voltage type (supply voltage) AC/DC
Nominal value output current 2 0
Nominal value output voltage 1 12
Nominal value output voltage 3 0
Performance level according to EN ISO 13849-1 None
