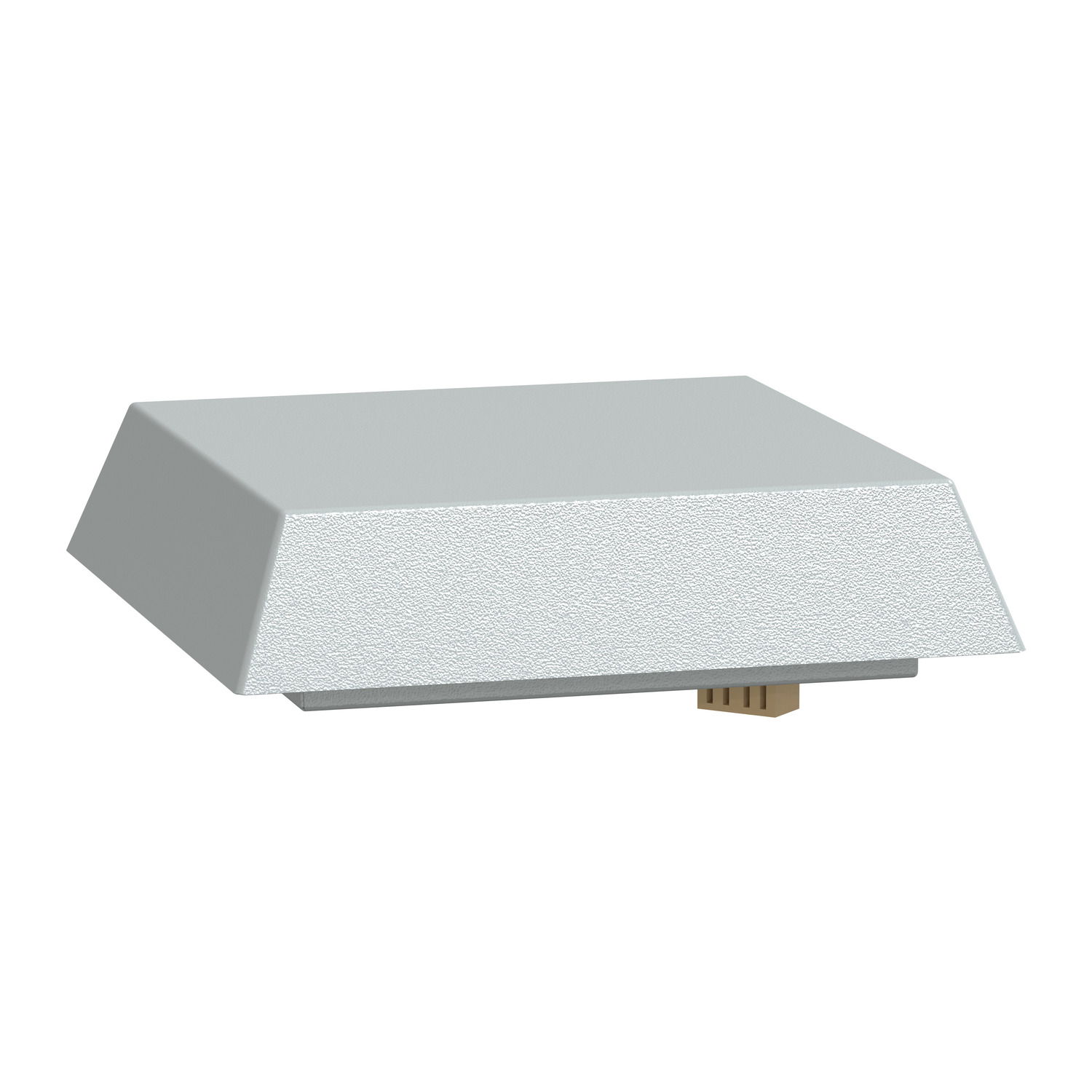

ClimaSys forced vent. roof, 570m3/h, 115V, with roof outlet grille and filter G2

ClimaSys forced vent. roof, 570m3/h, 115V, with roof outlet grille and filter G2

"ClimaSys 85W top hood with fan 228 x 228mm with G2 filter ensures effective temperature control inside enclosures" "The fan performs free flow rate of 570 m3/h at 50 Hz and 350 m3/h with outlet grille cut-out 291 x 291mm" "The external width is 340mm, height is 96mm and depth is 340mm" "The accessory is made up of 1 hood for top of enclosure, 1 fan and 1 fixing elements" "The hood color is grey (RAL 7035)" "Ingress protection rating is IP54" "Input voltage is 115 V 50/60 Hz" "Noise level is 64-64 dB"

Product identifiers

SKU: NSYCVF570M115MF
EAN: 3606480151408
GTIN: 3606480151408
MPN: NSYCVF570M115MF

Voltimum+ Loyalty Programme Loyalty points: 1

Price: £ 744.00 Excl. VAT

Specifications

Depth 340 mm
Width 340 mm
Colour Grey
Height 96 mm
RAL-number 7035
EMC-version no
Rated power 85 W
With filter no
Air circulator yes
Number of fans 1
Roof ventilator yes
With protective cover no
Degree of protection (IP) IP54
Operating voltage AC 60 Hz
Degree of protection (NEMA) 13
Suitable for 19 inch rack mounting no
