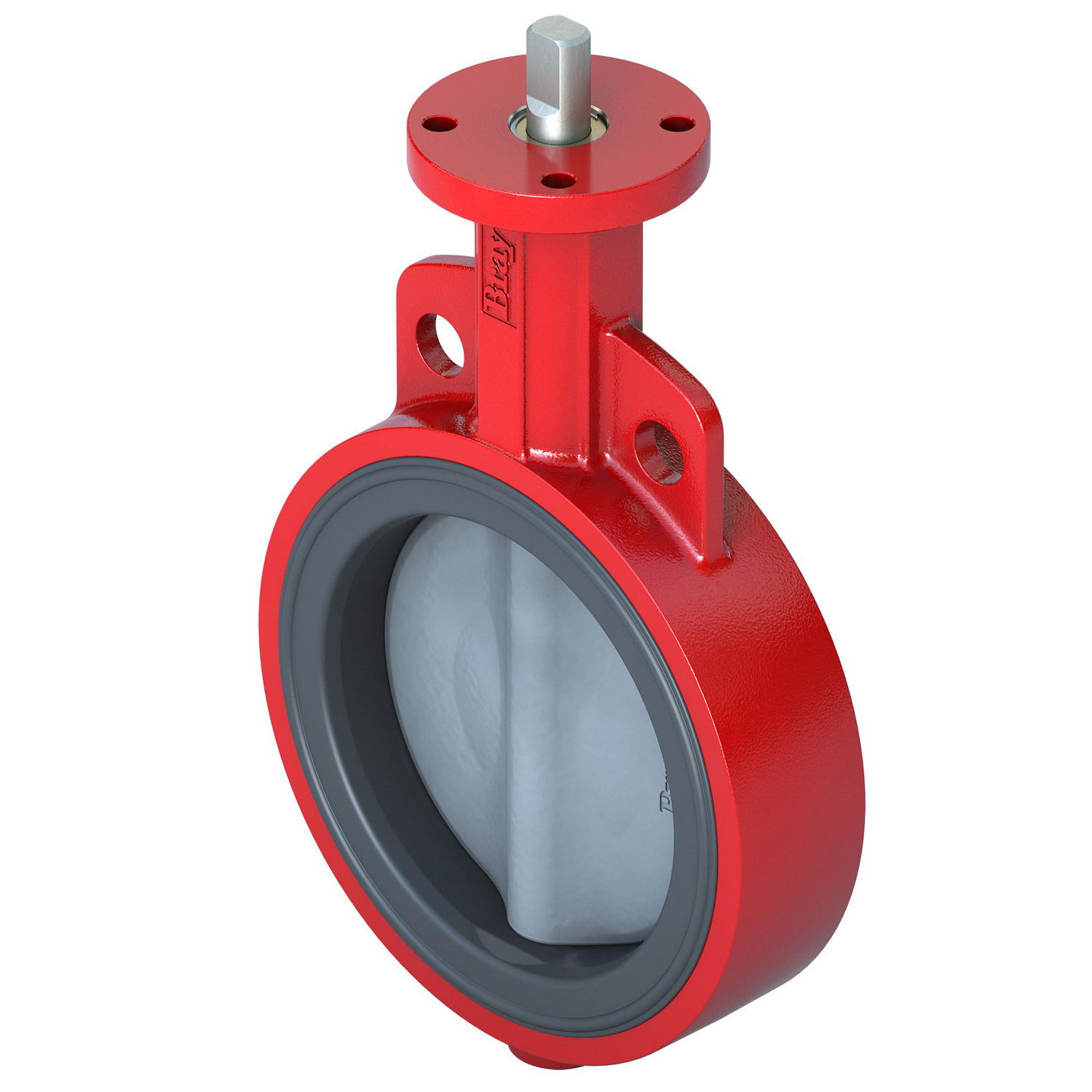

VF209W High Pressure Butterfly Valve, 2-Way, DN80, Wafer Flanged, Nylon Disc, EPDM Liner, Kvs 397 m³/h, Max ∆P 1200 kPa

Link copied
SKU
EAN
GTIN
MPN
"The VF209W is a premium high pressure butterfly valve for heavy duty HVAC and industrial applications." "The valve is used as an isolation valve or a control valve." "The valve disc is coated with Nylon 11 thermoplastic material ensuring excellent durabiility against corrosion." "Optimised seat and disc design for high close off pressures and Nylon valve disc coating for a better friciton resistance and protection for aggressive water." "Valve size: DN80, Flange, Flow capacity, Kvs: 397 m³/h." "Constructed and flanged to PN6, PN10, PN16 pressure classes. ΔPm of maximum 1200 Kpa." "EPDM seals provide a working temperature range of -29 °C to + 121 °C, and a tight closing of the butterfly valve with the maximum close-of pressure." "The flow characteristic is near equal percent up to 70° disc angle." "The valve is manufatured in accordance with conformity assessment procedure: PED 97/23/EC. Category III."

Voltimum+ Loyalty Programme Loyalty points: 60

Price: £ 362.00 Excl. VAT

Categories

Specifications

Passage -
Sealing Ethylene-propylene diene monomer rubber (EPDM)
EFDE0010 no
EFNL0001 no
EFNL0002 no
EFSE0002 no
Standard EN
Fire-safe no
Operation Other
Valve design Centric
Housing lining Not replaceable
UL quality mark no
Material quality Cast iron EN-GJL-250 (GG 25)
Nominal diameter 3 inch (80)
LPCB quality mark no
Diameter handwheel 160 mm
Construction length 262 mm
Length of connection 1 -
Flange compression class Other
Length operating element 262 mm
Material valve butterfly Other
Material primary spindle seal Ethylene-propylene diene monomer rubber (EPDM)
Material quality valve butterfly Other
Outer pipe diameter all connections 80 mm
