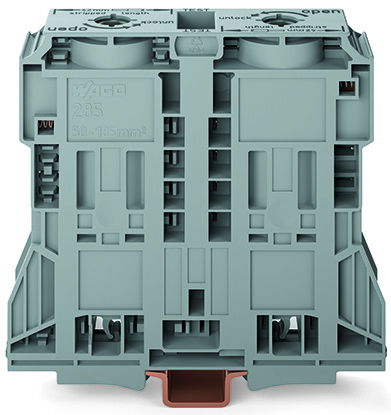

2-conductor through terminal block 185 mm² lateral marker slots gray

Name: 2-conductor through terminal block 185 mm² lateral marker slots gray
Brand: Wago
SKU: 285-1185
Availability: InStock

2-conductor through terminal block; 185 mm²; lateral marker slots; only for DIN 35 x 15 rail; POWER CAGE CLAMP; 185,00 mm²; gray

Product identifiers

SKU: 285-1185

EAN: 4055143067065

GTIN: 4055143067065

MPN: 285-1185

Price range: £ 32.67 - £ 40.84 Excl. VAT

Terminal blocks

Specifications

Depth	116
Width	32
Colour	Grey
Height	130
EFNA0008	V0
Rated voltage	1000
Mounting method	DIN rail (top hat rail) 35 mm
Number of levels	1
Rated current In	353
Operating temperature	105 - 105
Closing plate required	no
Material insulation body	Thermoplastic
Internally connected stages	no
Explosion-tested version 'Ex e'	no
Suitable for conductor material	-
Type of electrical connection 1	Spring clamp connection
Type of electrical connection 2	Spring clamp connection
Number of clamp positions per level	2
Connectable conductor cross section solid-core	50 - 185
Connectable conductor cross section multi-wired	50 - 185
Connectable conductor cross section fine-strand with cable end sleeve	50 - 185
Connectable conductor cross section fine-strand without cable end sleeve	50 - 185
