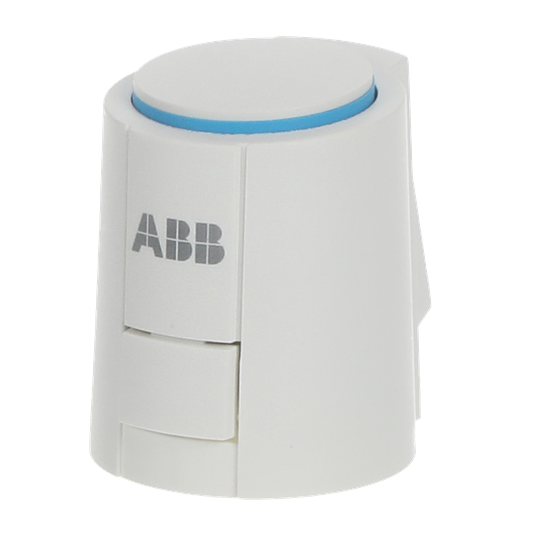

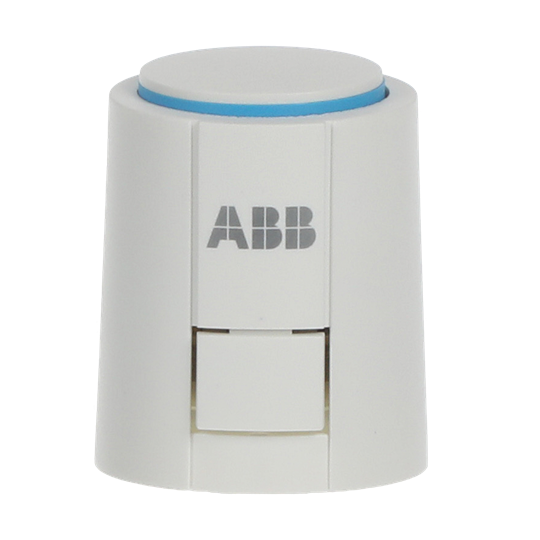

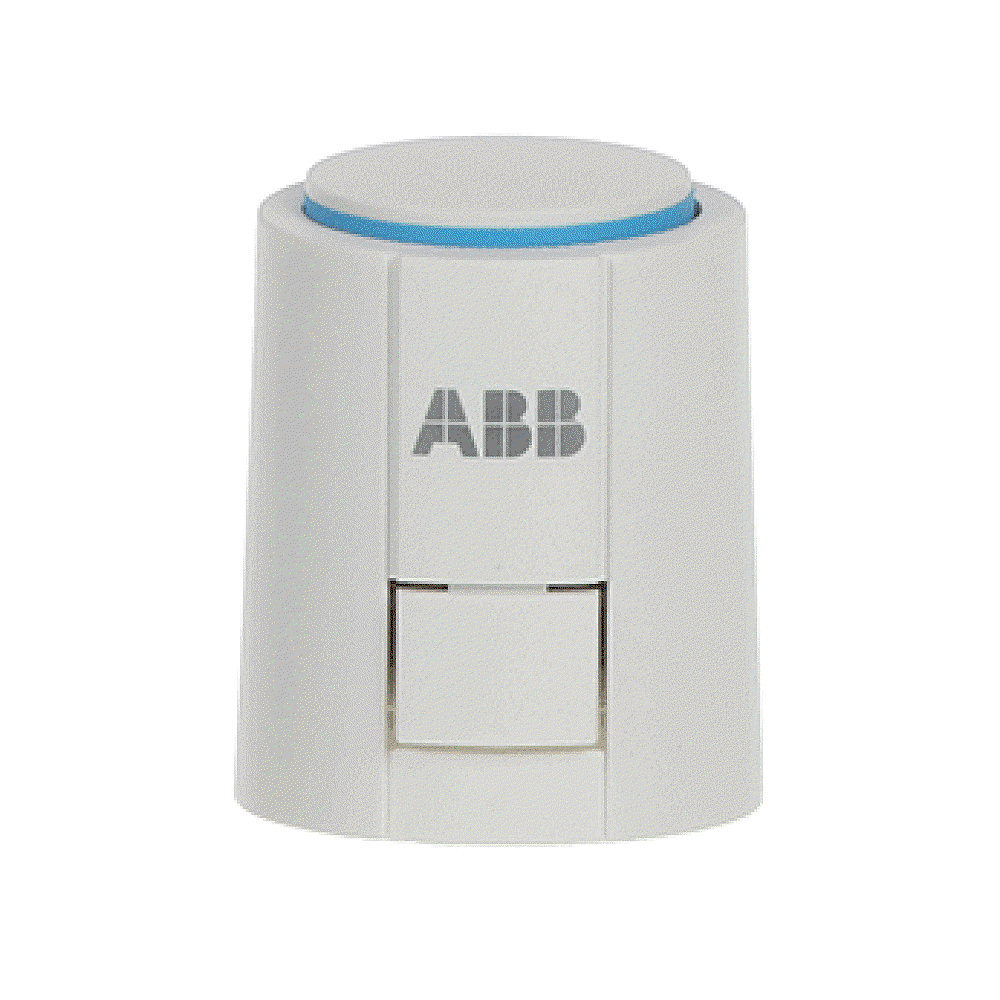

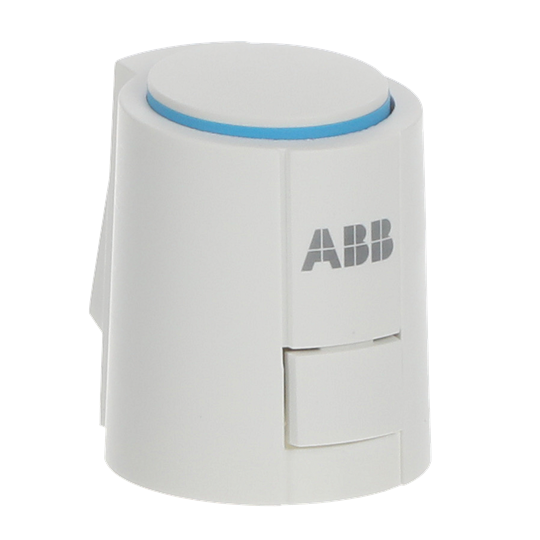

TSA/K24.2 Thermoelectric Valve Drive, 24 V
The Thermoelectric Valve Drives TSA/K are suited for opening and closing valves in Heating, Ventilating and Air-Conditioning (HVAC) systems. The devices are normally closed available in 230 V AC and 24 V AC/DC with pluggable connecting cable. The shapely housing protects the device against splash water. The device is especially suited to control radiators, converter heaters and cooling ceilings for single room temperature controlling. The valve drive can be controlled with the Electronic Switch Actuator ES/S or with the Electronic Relay ER/U in combination with the Universal Interface US/U and a Room Thermostat. The easy and quick snap-on mounting on all common valves occurs via Valve Adapters VA/Z.
Product identifiers
SKU: 2CDG120050R0011
EAN: 4016779950688
GTIN: 4016779950688
MPN: TSA/K24.2
Loyalty points: 23
Price range: £ 47.44 - £ 51.98 Excl. VAT
Categories
Features
|
Bus system KNX
|
no
|
|
Bus system LON
|
no
|
|
Mounting method
|
Other
|
|
Nominal voltage
|
24 V
|
|
Other bus systems
|
None
|
|
Bus system Powernet
|
no
|
|
With bus connection
|
no
|
|
Function master/slave
|
-
|
|
Voltage supply over bus
|
no
|
|
Number of digital inputs
|
|
|
Degree of protection (IP)
|
IP54
|
|
Bus system radio frequency
|
no
|
|
Radio frequency bidirectional
|
no
|
|
Temperature and stroke indication
|
yes
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
Buttons for manual operation at the drive
|
no
|
|
Temperature control with built-in continuous control
|
no
|
