Popularity Top 10%

Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Harmony XB4, Emergency stop switching off, metal, red mushroom Ø40, Ø22, trigger latching turn to release, 1 NC

Link copied

SKU
EAN
GTIN
MPN

Harmony XB4, Emergency stop switching off, metal, red mushroom Ø40, Ø22, trigger latching turn to release, 1 NC by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £19.91 to £35.23 excl. VAT. Voltimum+ members earn 4 points per unit.

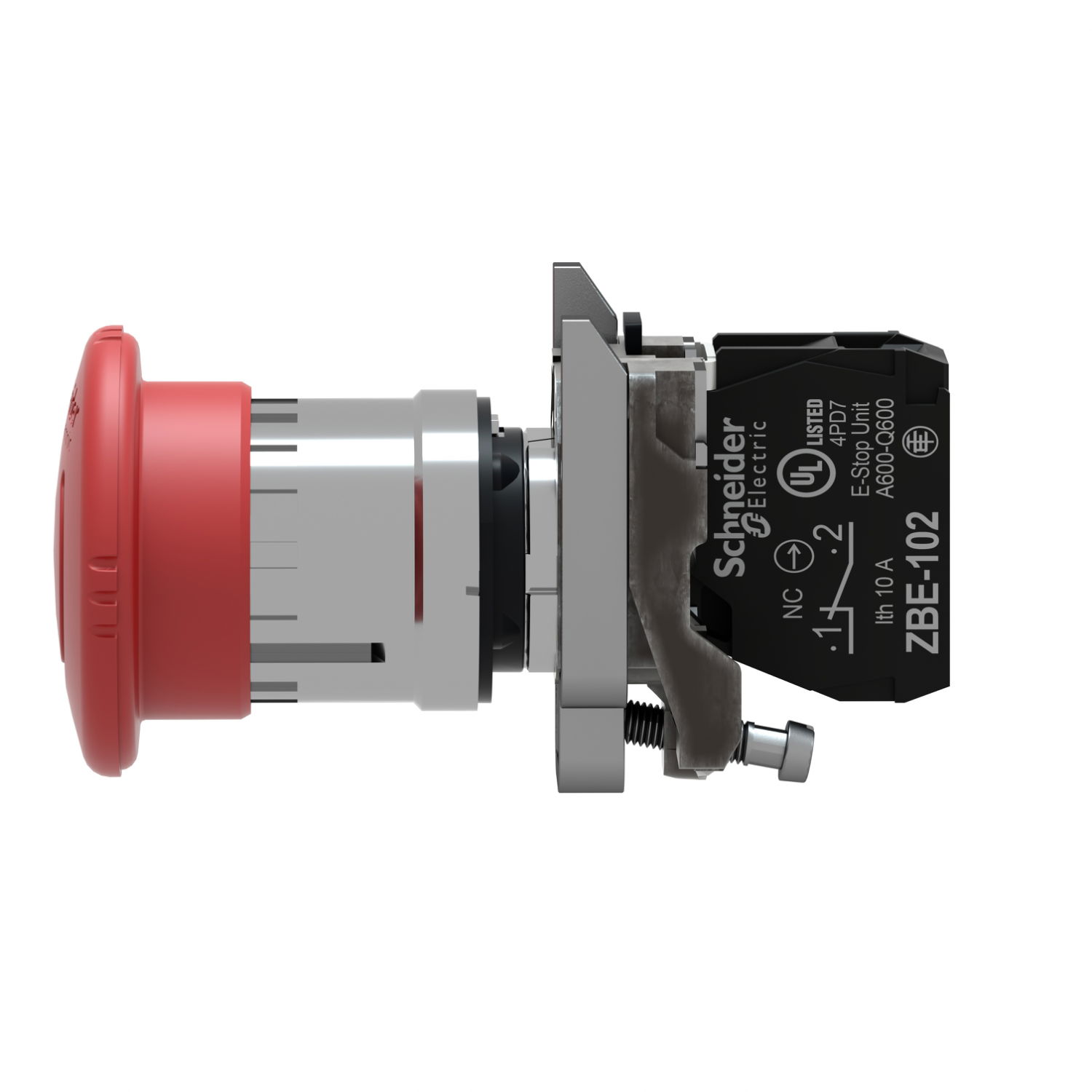

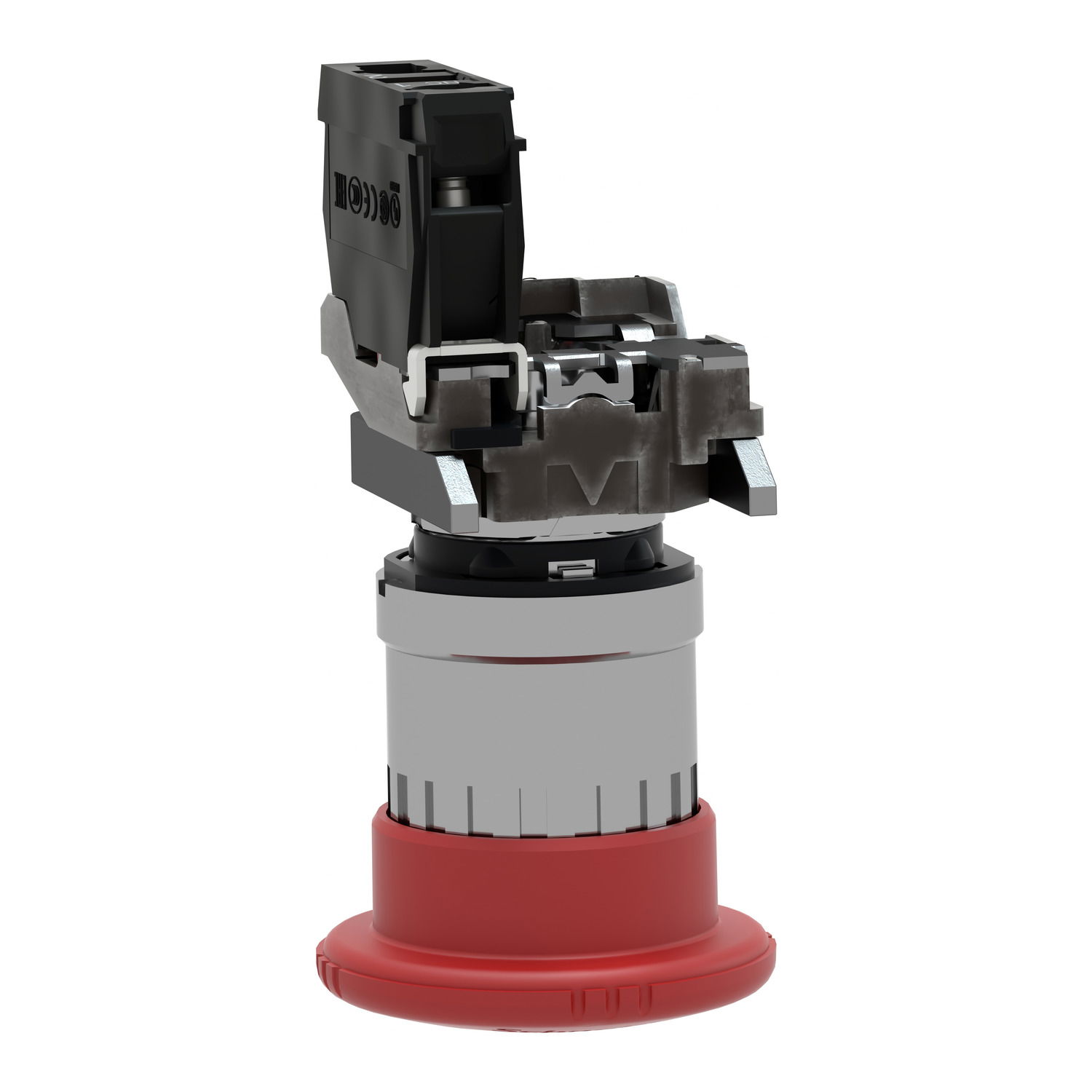

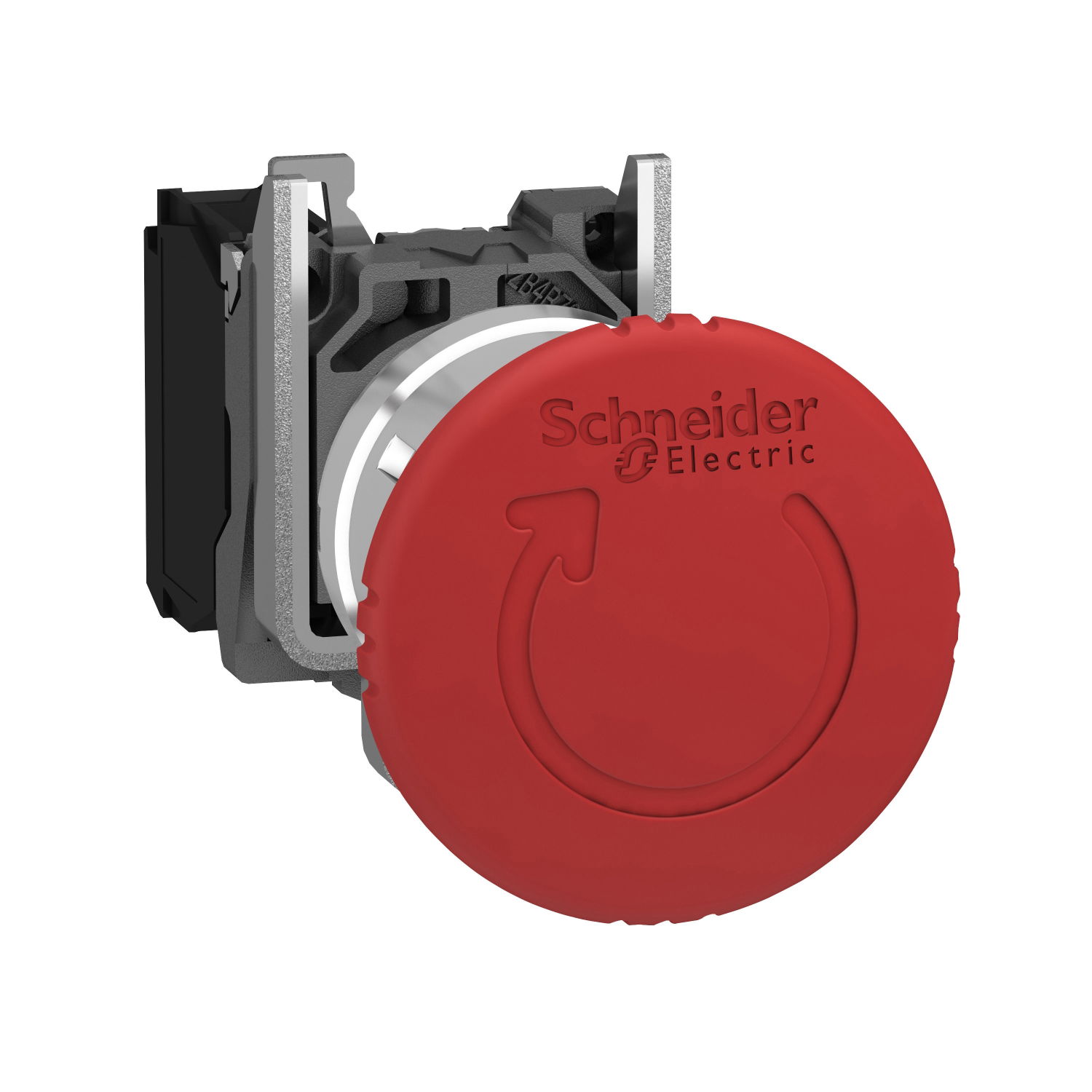

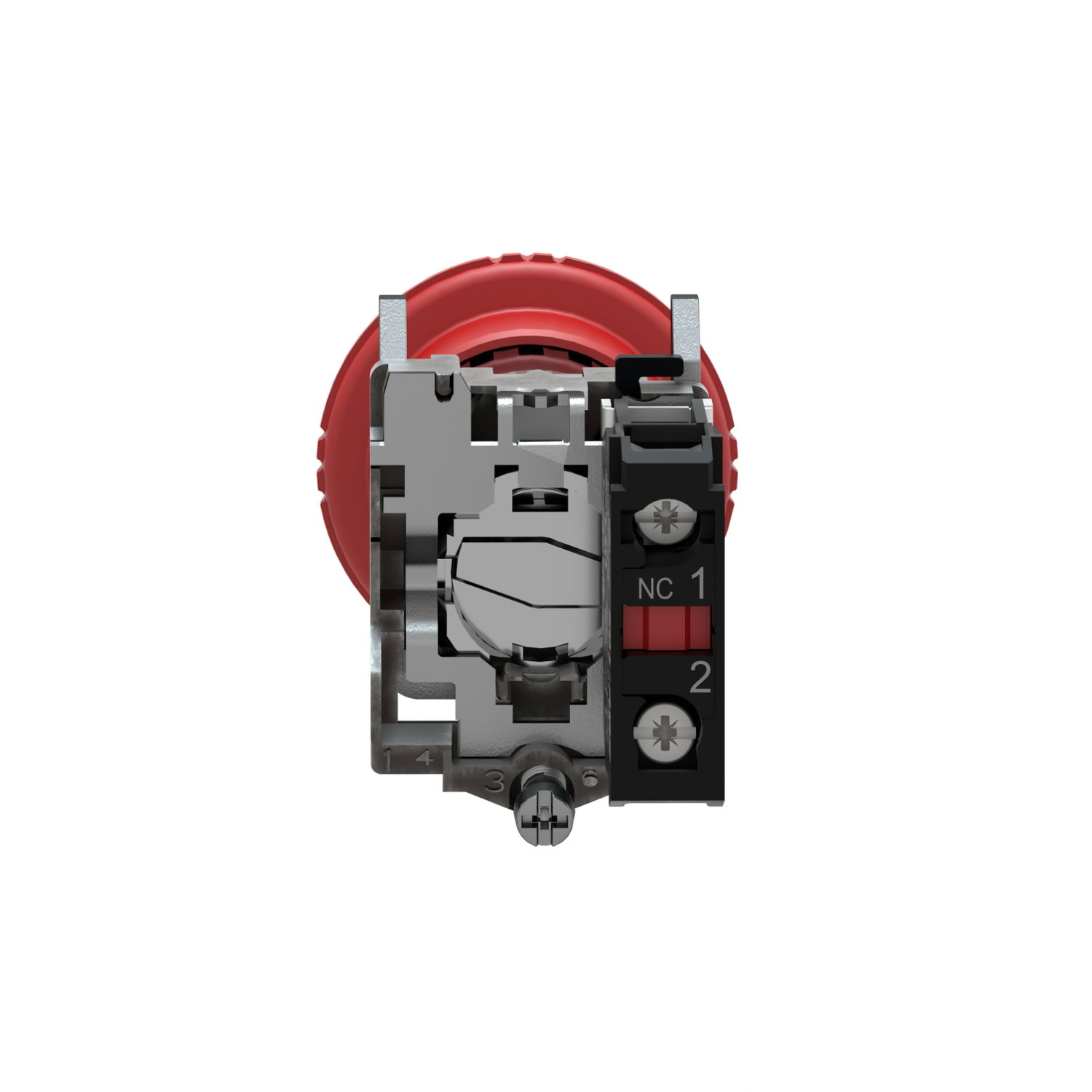

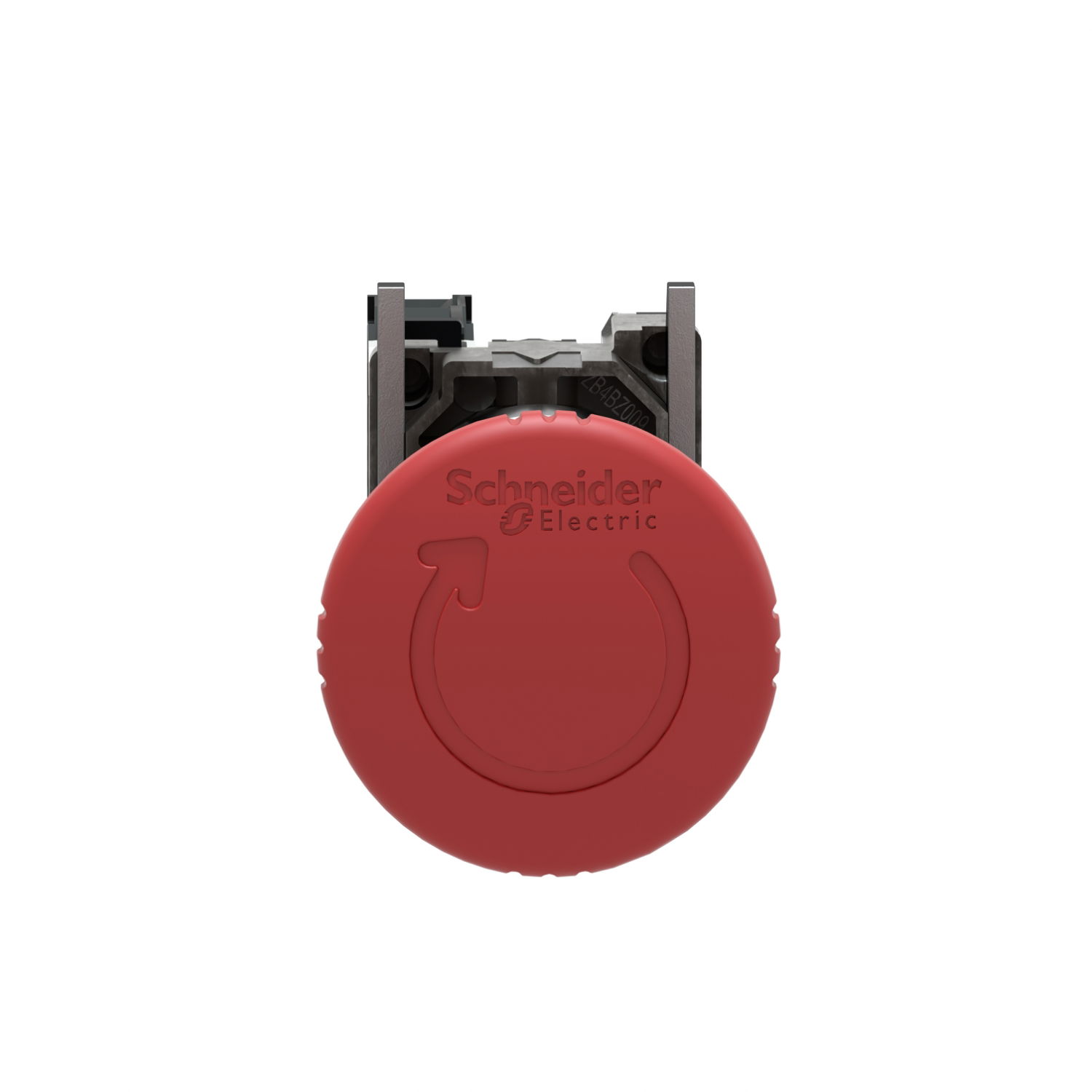

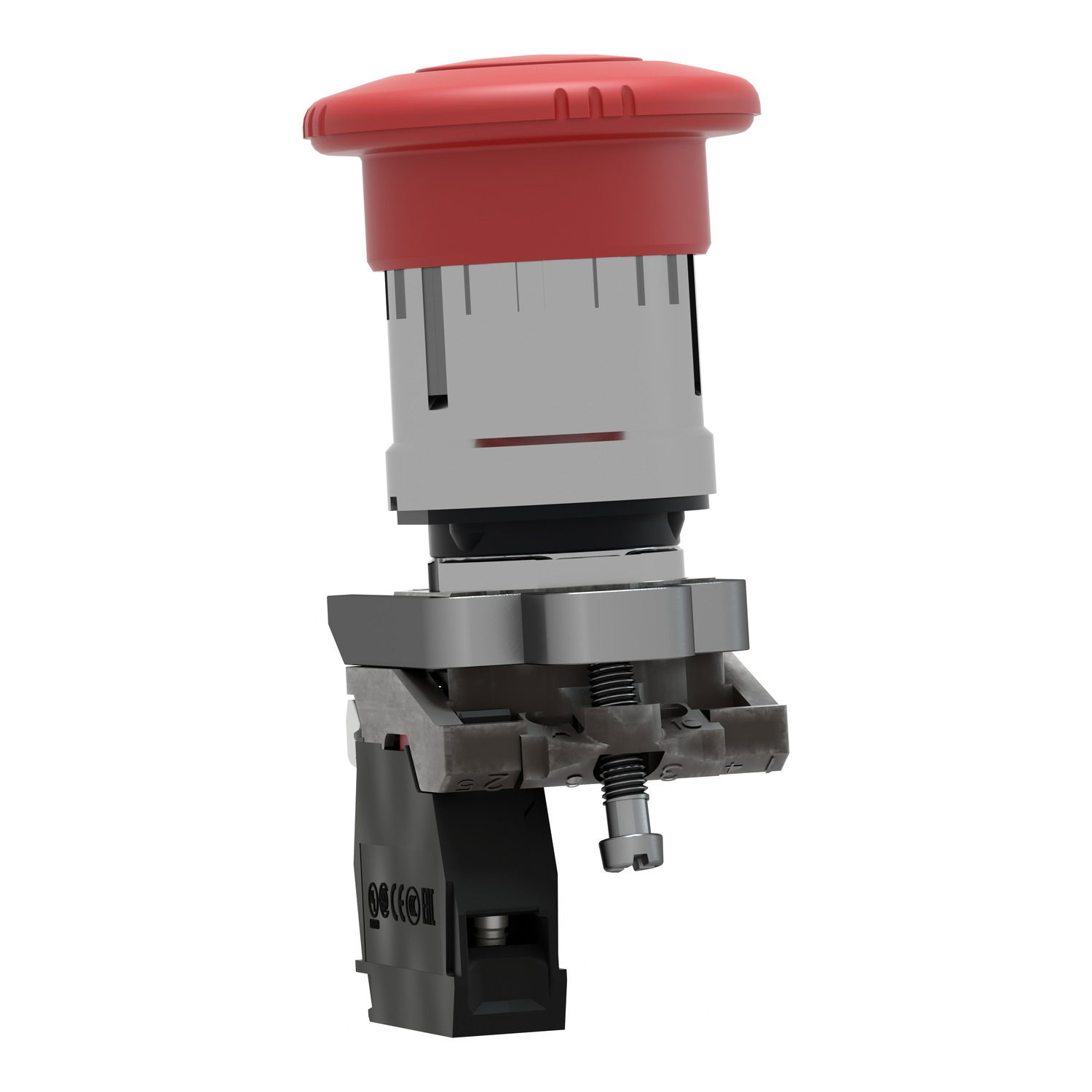

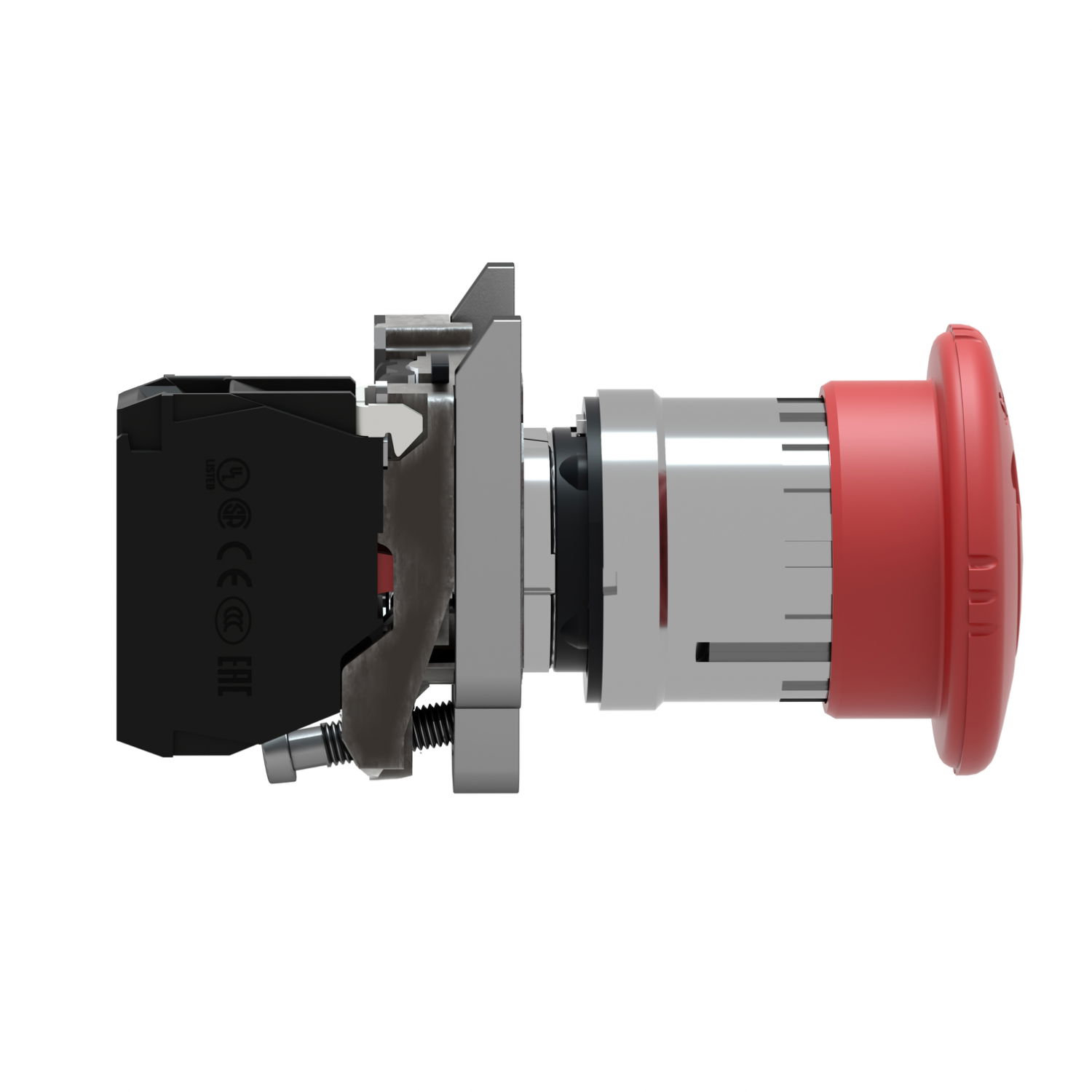

This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched turn to release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

Loyalty points: 4

Price range: £ 19.91 - £ 35.23 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Diameter cap	40 mm
Hole diameter	22.5 mm
With lighting	no
Mounting method	Built-in
Unlocking method	Turn-release
Supply voltage lamp	-
Degree of protection (IP)	IP66
Degree of protection (NEMA)	Other
Connection type auxiliary circuit	Screw connection
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	1

Documents

Declaration of Conformity (Sustainability)

XB4BS8442 REACh Regulation
