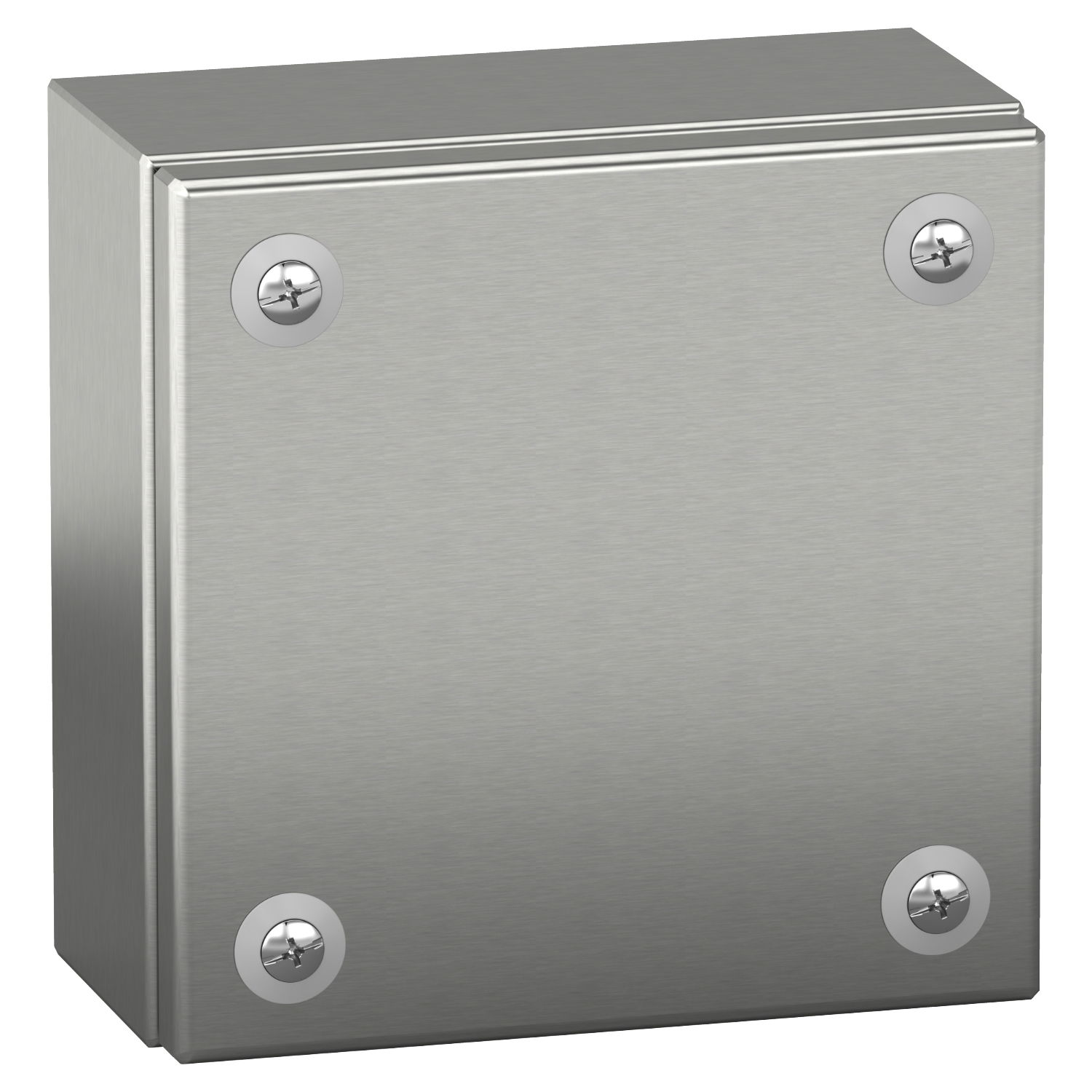

"Stainless steel wall mounted industrial box, PanelSeT SBX, 150x150x80 mm, IP66"

Link copied
SKU
EAN
GTIN
MPN

"Stainless steel wall mounted industrial box, PanelSeT SBX, 150x150x80 mm, IP66" by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £169.71 excl. VAT. Voltimum+ members earn 20 points per unit.

The PanelSeT SBX is a multi-purpose stainless steel industrial box ideal for use in harsh environments It has a nominal height, width and depth of 150mm, 150mm and 80mm respectively and is made with a Scotch-Brite® brushed surface finish It has a single piece body folded and welded, with 4 cover screws and a cover that can be removed for maintenance purposes It has a captive screw PZ2 outside the sealed area and is wall mounted The net weight of the enclosure is 1,1kg It is certified by BV | BVM | UL and meets the IEC 62208 standards It has a high degree of protection with IK10 (IEC62262) and IP66 (IEC60529) ratings It can be stored in temperatures between -35-60 °C and operated in temperatures between -35-80 °C The enclosure meets the directives IEC 62208 and UL508A, certified by BV and UL respectively. Also compliant with marine requirements of BV Marine Division.

Voltimum+ Loyalty Programme Loyalty points: 20

Price: £ 169.71 Excl. VAT

Specifications

Depth 80 mm
Shape Square
Width 150 mm
Colour Grey
Length 150 mm
EFUK0020 no
EFUK0021 yes
Material Stainless steel
RAL-number 7035
Halogen free yes
Type of inlet -
For Ex-zone gas None
Mounting method Surface mounted
Cover attachment Screwed
Number of inlets 0
Extension possible no
Operating temperature
Explosion-tested version no
Degree of protection (NEMA) 4
Rated insulation voltage Ui -
Material plate thickness cabinet 1.2 mm

Documents

Declaration of Conformity (Sustainability)

NSYSBX15158 REACh Regulation

Open

Instruction sheet

PanelSeT SBX - Stainless Steel Industrial Boxes and Accessories - Instruction sheet

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYSBX15158 EU RoHS Directive

Open

Environmental Disclosure

PanelSeT SBX – Stainless Steel Industrial Box

Open

CAD

PanelSeT SBX - NSYSBX15158 - Stainless Steel Industrial Box 150x150x80 - 2D CAD

Open
