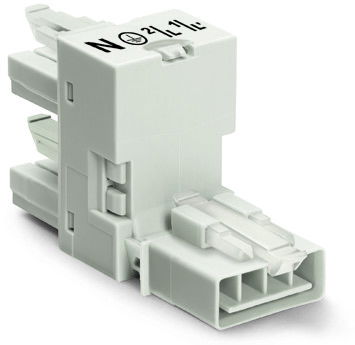

H-distribution connector 4-pole Cod. A white

Name: H-distribution connector 4-pole Cod. A white
Brand: Wago
SKU: 890-995
Availability: InStock

h-distribution connector; 4-pole; Cod. A; 1 input; 2 outputs; outputs on one side; 3 locking levers; for flying leads; white

Product identifiers

SKU: 890-995

EAN: 4050821255185

GTIN: 4050821255185

MPN: 890-995

Loyalty points: 7 (x50)

Price: £ 7.15 Excl. VAT

Pluggable building installation systems

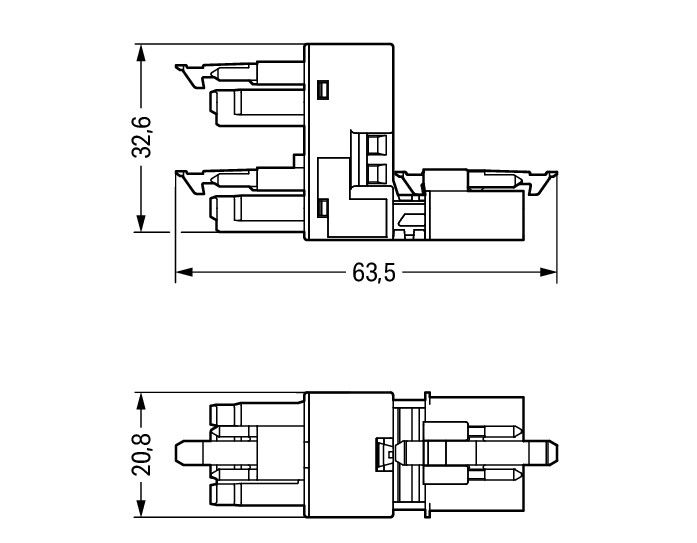

Specifications

Width	20.8
Height	32.6
Length	63.5
Fire load	0.08472
Halogen free	yes
Phase pickup	-
Rated current	16
Rated voltage	400
Number of poles	4
Type of locking	Integrated in plug-in connector
Contact material	CuSn
Housing material	Polyamide (PA)
Number of inputs	4
Pollution degree	3
Mechanical coding	yes
Number of outputs	8
Pole codification	Other
Rated surge voltage	6
Type of distributor	h–distributor
Mounting possibility	With separate adapter
Continuity resistance	1
Degree of protection (IP)	IP20
Rated current to luminaire	16
Surface treatment contacts	Tinned
Colour coding/contact insert	White
Type of integrated switching	None
RAL-number coding/contact insert	-
Colour of the separate adapter piece	-
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
