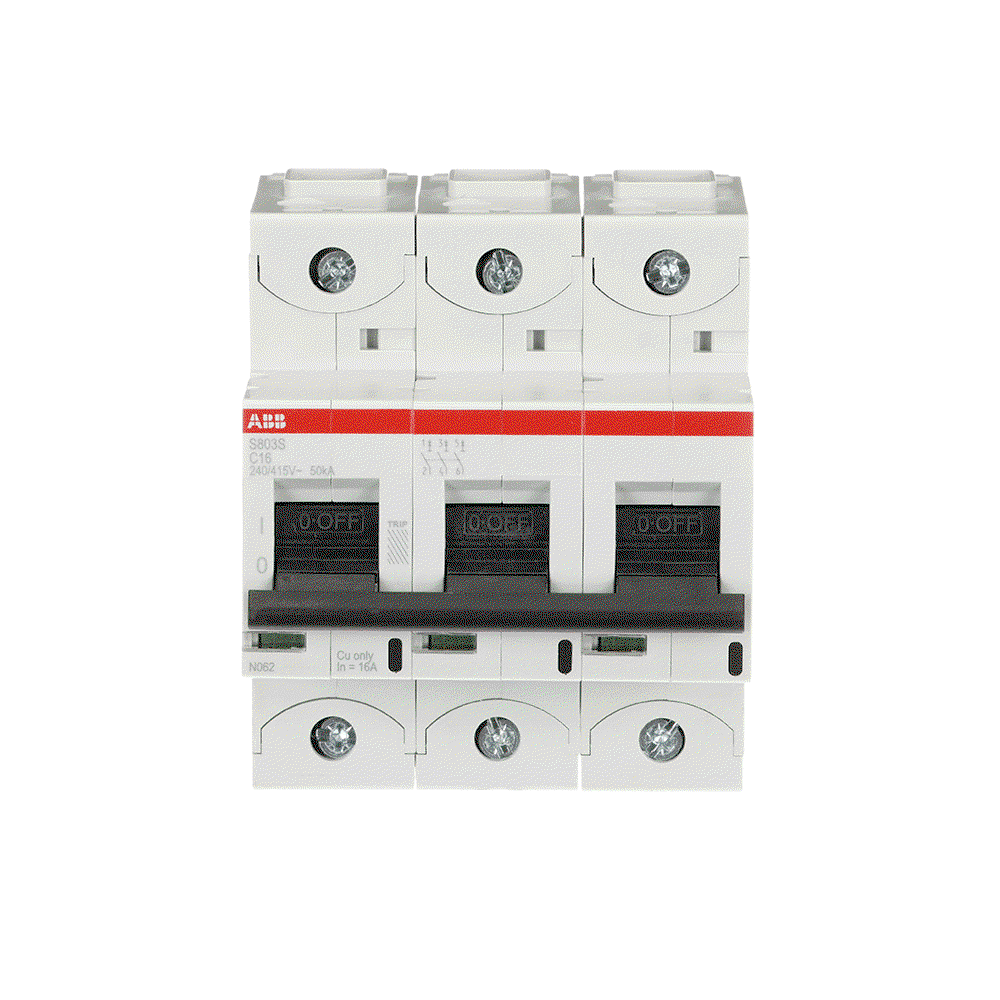

S803S-C16 High Performance MCB
S803S-C16 High Performance MCB
S803S-C16 High Performance MCB by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £196.66 excl. VAT. Voltimum+ members earn 111 points per unit.
The S803S-C16 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 16 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-C16 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-C16 more comfortable. Due to the fast arc extinction of S803S-C16 your application will be secured.
Product identifiers
SKU: 2CCS863001R0164
EAN: 7612271200749
GTIN: 7612271200749
MPN: S803S-C16
Loyalty points:
111
Price: £ 196.66 Excl. VAT
Categories
Specifications
| Frequency | |
| Power loss | 9.3 |
| Voltage type | AC/DC |
| Rated current | 16 |
| Rated voltage | 400 |
| Built-in depth | 82.5 |
| Explosion-proof | no |
| Pollution degree | 3 |
Documents
Deeplink product page
Deeplink REACH
9AKK108468A3036 EU REACH Declaration S800 range.pdf
Instructions for use
Instruction Manual S800 - Rev. N.pdf
Product data sheet
Declaration RoHS
2CCC005083D0202 EU Declaration S800S,N,C,B.pdf
Declaration EPD (Environmental Product Declaration)
