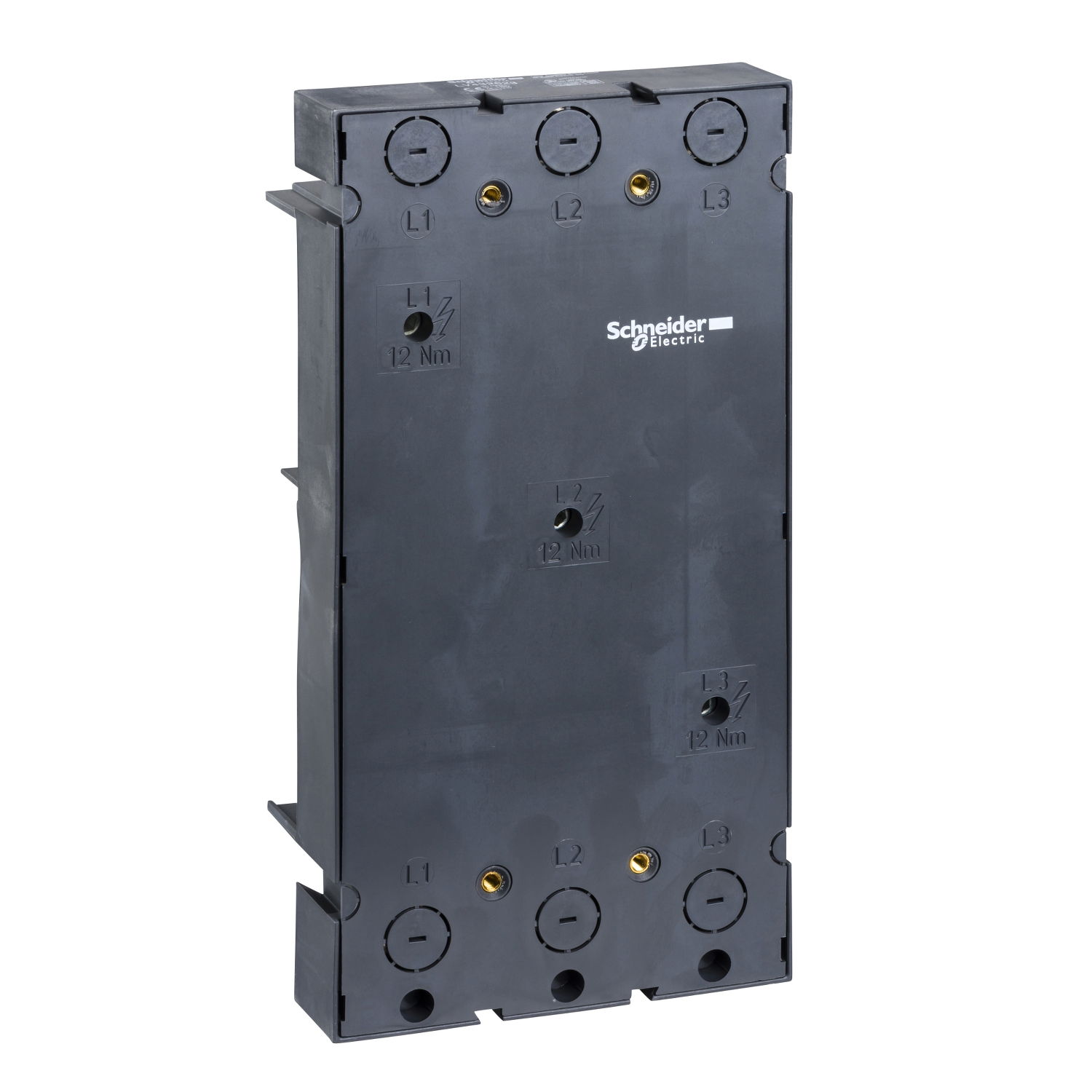

PLATINE COMPACT NSX 400-630 3P IEC/UL FOR 60 BUSBARS INTERAXIS
PLATINE COMPACT NSX 400-630 3P IEC/UL FOR 60 BUSBARS INTERAXIS
PLATINE COMPACT NSX 400-630 3P IEC/UL FOR 60 BUSBARS INTERAXIS by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and TLA. It is currently in stock at all of them. Trade prices range from £254.58 to £367.33 excl. VAT. Voltimum+ members earn 1 point per unit.
The NSX mounting plate system for busbar simplifies the installation of 3 poles NSX 400-630 circuit breaker. Power distribution is performed by a busbar. The mounting plate is fitted directly on the busbar, by snap-on-mounting. thus implementing mechanical and electrical connection. The busbar interaxis is 60 mm. Depending on the cross section of the bars, the busbar associated to terminals can withstand a maximum current of 630A. This system offers numerous benefits as space saving in cabinets and easy connection. This system also offer fast, safe and reliable electrical and mechanical connection. This system also offer IP20 protection by using busbars and end covers. This system also offer easier maintenance and equipment flexibility and modularity.
Product identifiers
SKU: LV432623
EAN: 3606480022487
GTIN: 3606480022487
MPN: LV432623
Loyalty points:
1
Price range: £ 254.58 - £ 367.33 Excl. VAT
Categories
ETIM group
Specifications
| Rail width | - |
| Busbar distance | 60 mm |
| Rated current In | 630 A |
| Width of the adapter | 139 mm |
| Max. busbar thickness | 10 mm |
| Min. busbar thickness | 5 mm |
| Mounting rail armament | None |
| Type of electric connection | - |
