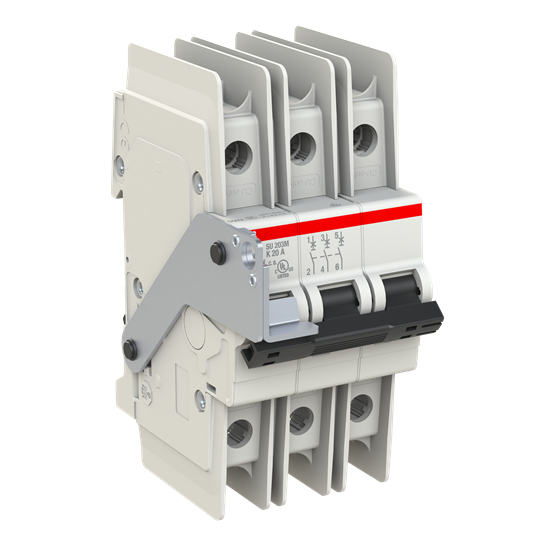

Miniature Circuit Breaker - SU200M - 3P - 20 A - K - (400 V AC) 11.2 kA

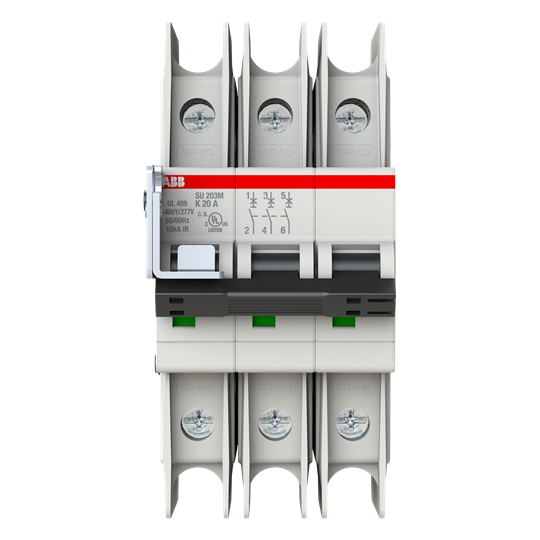

Miniature Circuit Breaker - SU200M - 3P - 20 A - K - (400 V AC) 11.2 kA – Image 2 of 3

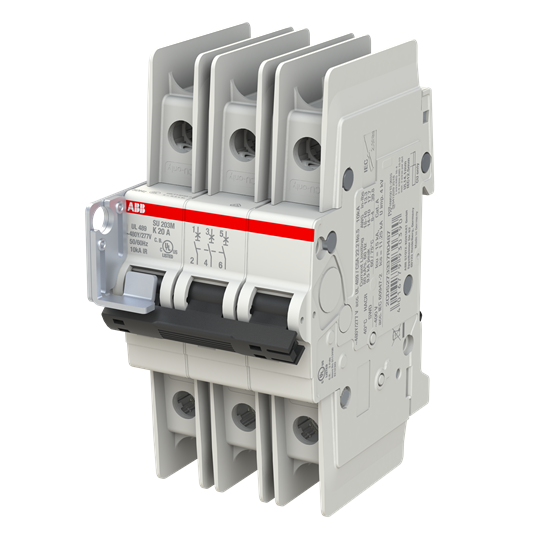

Miniature Circuit Breaker - SU200M - 3P - 20 A - K - (400 V AC) 11.2 kA – Image 3 of 3

1 / 3

Miniature Circuit Breaker - SU200M - 3P - 20 A - K - (400 V AC) 11.2 kA

Name: Miniature Circuit Breaker - SU200M - 3P - 20 A - K - (400 V AC) 11.2 kA
Brand: ABB
SKU: 2CDS273337R0487
Availability: InStock

Miniature Circuit Breaker - SU200M - 3P - 20 A - K - (400 V AC) 11.2 kA by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £158.29 to £214.25 excl. VAT. Voltimum+ members earn 94 points per unit.

SU203M-K20 Miniature Circuit Breaker K-Char., UL10kA, IEC15kA, 20A, 3P UL489

Product identifiers

SKU: 2CDS273337R0487

EAN: 4016779930390

GTIN: 4016779930390

MPN: SU203M-K20

Loyalty points: 94

Price range: £ 158.29 - £ 214.25 Excl. VAT

Specifications

Frequency
Power loss	7.5
Voltage type	AC/DC
Rated current	20
Rated voltage	400
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	K
Number of poles (total)	3
Degree of protection (IP)	IP20
Number of protected poles	3
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	3
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	-
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
