Categories
Features
|
Model
|

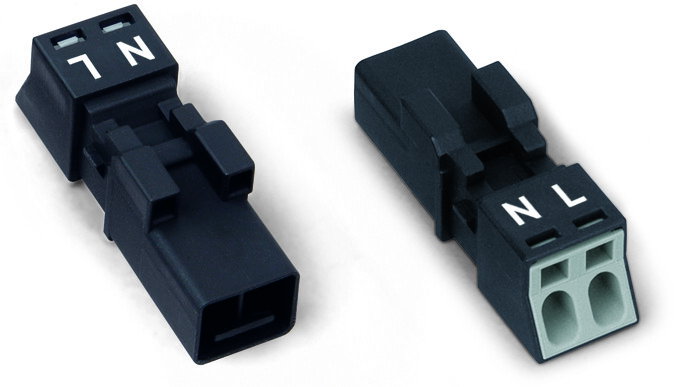

Plug
|
|

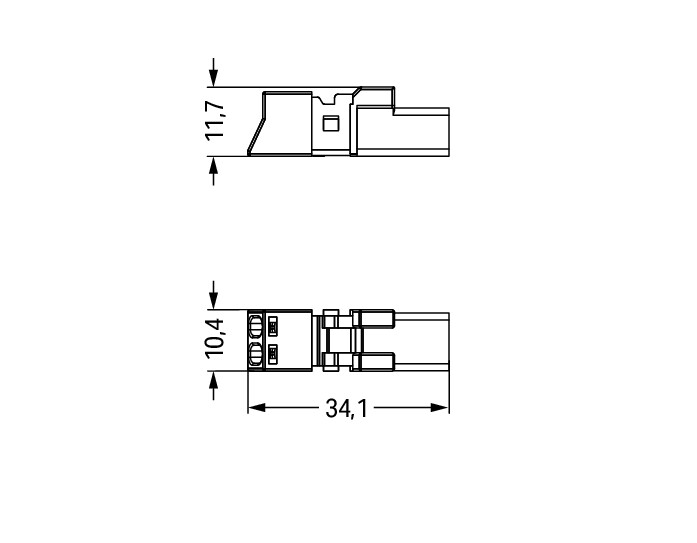

Width
|
10.4 mm
|
|
Height
|
11.7 mm
|
|
Length
|
34.1 mm
|
|
Fire load
|
0.01583 kWh
|
|
Halogen free
|
yes
|
|
Rated current
|
16 A
|
|
Rated voltage
|
250 V
|
|
Cable diameter
|
|
|
Connection type
|
Spring clamp connection
|
|
Number of poles
|
2
|
|
Type of locking
|
Separate
|
|
Contact material
|
CuSn
|
|
Housing material
|
Polyamide (PA)
|
|
Pollution degree
|
3
|
|
Mechanical coding
|
yes
|
|
Pole codification
|
-
|
|
With strain relief
|
no
|
|
Rated surge voltage
|
4 kV
|
|
Continuity resistance
|
1 mOhm
|
|
Degree of protection (IP)
|
IP20
|
|
Surface treatment contacts
|
Tinned
|
|
Colour coding/contact insert
|
-
|
|
Number of connections per pole
|
1
|
|
RAL-number coding/contact insert
|
-
|
|
Connection cross section (solid-core)
|
0.25 - 1.5 mm²
|
|
Connection cross section (fine-strand)
|
0.25 - 1.5 mm²
|
|
Max. continuous temperature resistance contact part
|
85 °C
|
|
Max. continuous temperature resistance strain relief
|
105 °C
|
