PCB terminal block 16 mm² Pin spacing 10 mm gray

Name: PCB terminal block 16 mm² Pin spacing 10 mm gray
Brand: Wago
SKU: 2636-1105/020-000
Availability: InStock

PCB terminal block; 16 mm²; Pin spacing 10 mm; 5-pole; Push-in CAGE CLAMP®; 16,00 mm²; gray

Product identifiers

SKU: 2636-1105/020-000

EAN: 4066966504392

GTIN: 4066966504392

MPN: 2636-1105/020-000

Price range: £ 11.31 - £ 15.60 Excl. VAT

Connectors

Specifications

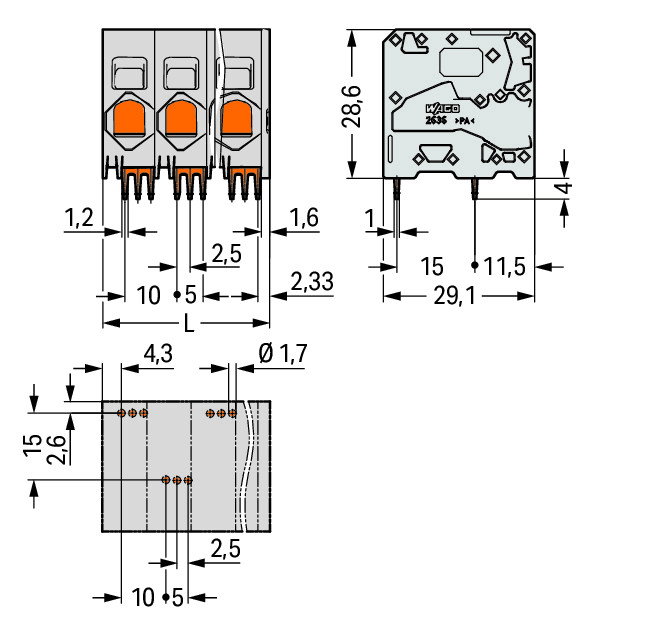

Height	28.6
EFNA0008	V0
Length pin	4
Rated voltage	1000
Housing colour	Grey
Type of banding	None
Number of levels	1
Pollution degree	2
Rated current In	76
Type of fastening	Solder
Connection type PCB	Soldering connection
Rated surge voltage	8
Operating temperature	-60 - 105
Over voltage category	III
Type of PCB fastening	Connecting contact
Diameter connection pin	-
Material insulation body	Thermoplastic
Connection type conductor	Spring clamp connection
Material connection surface	Tin
Modular spacing connections	10
RAL-number (similar) housing	-
Angle PCB/conductor connection	0°/180° (horizontal)
Number of electrical connections	5
Degree of protection (IP), mounted	-
Connectable conductor cross section solid-core	0.75 - 16
Connectable conductor cross section multi-wired	0.75 - 16
Connectable conductor cross section fine-strand with cable end sleeve	0.75 - 16
Connectable conductor cross section fine-strand without cable end sleeve	0.75 - 25
