Control station, plastic, Emergency stop function, 1 mushroom head push button Ø 40, red, 1 NC + 1 NC, ATEX

Link copied
SKU
EAN
GTIN
MPN

Control station, plastic, Emergency stop function, 1 mushroom head push button Ø 40, red, 1 NC + 1 NC, ATEX by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and TLA. It is currently in stock at 1 of them. Trade prices range from £156.39 to £246.80 excl. VAT. Voltimum+ members earn 32 points per unit.

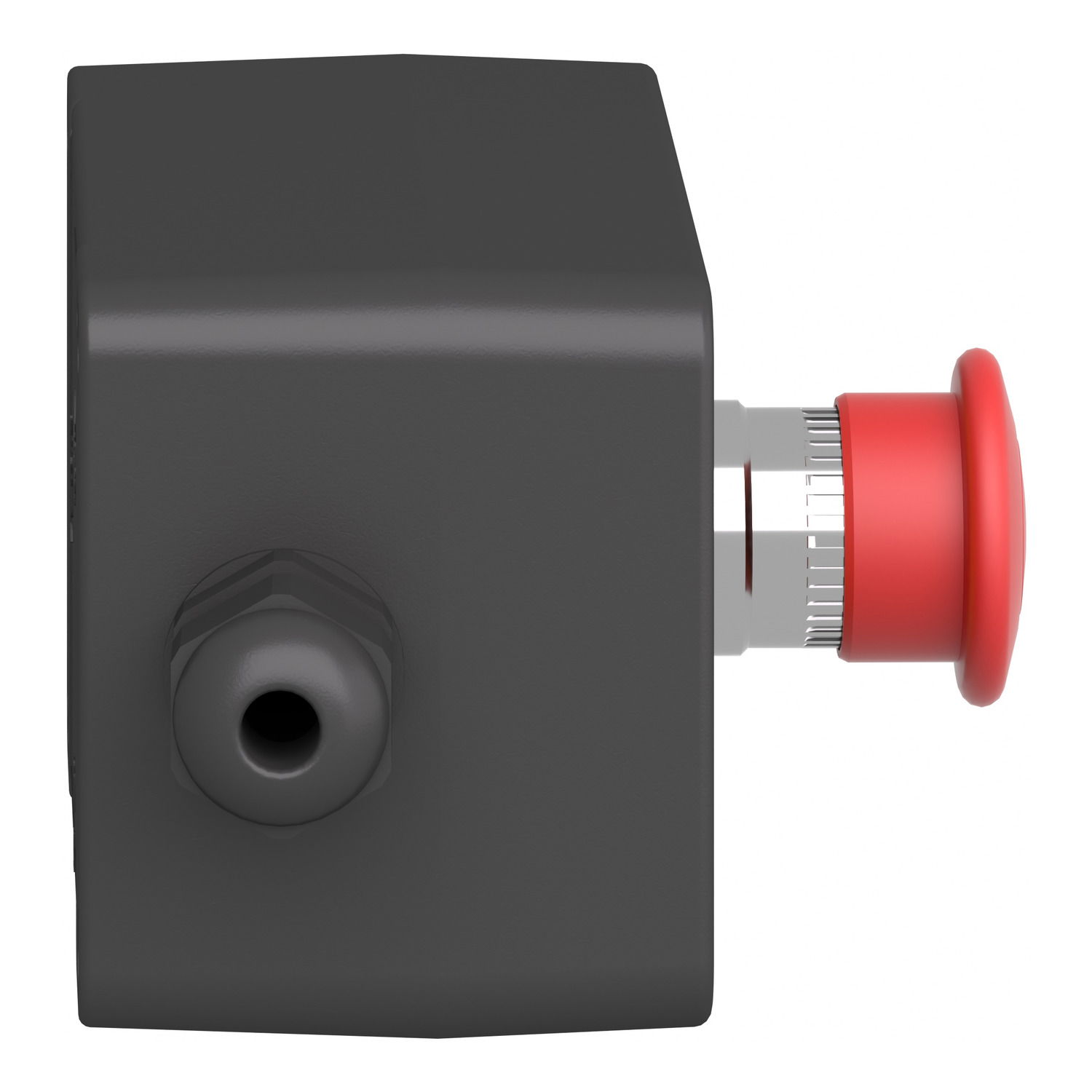

This Harmony XAW red 40mm mushroom-head control station for E-Stop function operates with a trigger-action mechanism. It is part of the Harmony XAW ATEX D range, offering metal and thermoplastic control stations for explosive dust atmospheres. It features a 2NC-contact mushroom‑head pushbutton with a black metal with fiberglass housing and a single-entry ISO M20 cable gland. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. This pushbutton head is ideal for situations where quick actions are required for a process or machine to function correctly. The dimensions of the control station are 85mm (width) x 70mm (height) x 146mm (depth), and it weighs 0.830kg (1.830Ib). The range of ATEX metal or plastic control stations is designed for industrial hazardous locations with dust where a potential explosive atmosphere may occur.

Voltimum+ Loyalty Programme Loyalty points: 32

Price range: £ 156.39 - £ 246.80 Excl. VAT

Specifications

Housing colour Grey
Housing material Metal
Power consumption -
Colour housing cover Black
Number of key switches 0
Number of push buttons 0
Degree of protection (IP) IP65
Number of indicator lights 0
Number of command positions 1
Suitable for emergency stop no
Rated control supply voltage AC 50 Hz
Number of mushroom-shaped push-buttons 1
Number of contacts as normally open contact 0

Documents

Declaration of Conformity (Sustainability)

XAWG198EX REACh Regulation

Open

Instruction sheet

XAWF...EX - XAW G...EX Control Stations for explosive atmosphere, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover catalog Harmony XAW ATEX D Complete metal or plastic stations for explosive atmospheres

Open

Declaration of Conformity (Sustainability)

XAWG198EX EU RoHS Directive

Open

Declaration of conformity

XAW...EX Control Stations for explosive atmosphere

Open

Environmental Disclosure

XAP Empty control station

Open

CAD

Open
