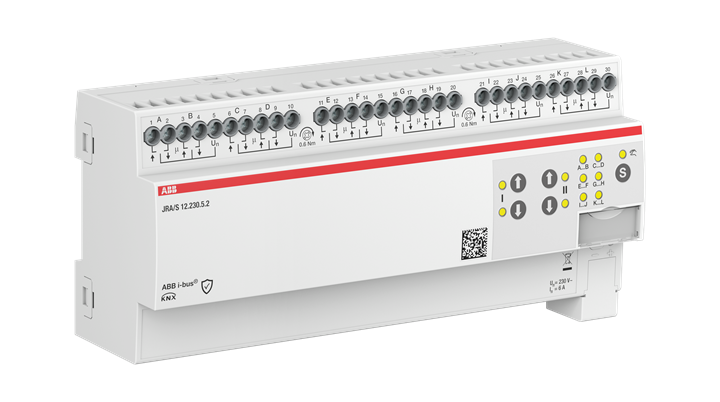

JRA/S12.230.5.2 Blind/Roller Shutter Act, Travel Det, 12-f, 230 V AC, Man Op, MDRC

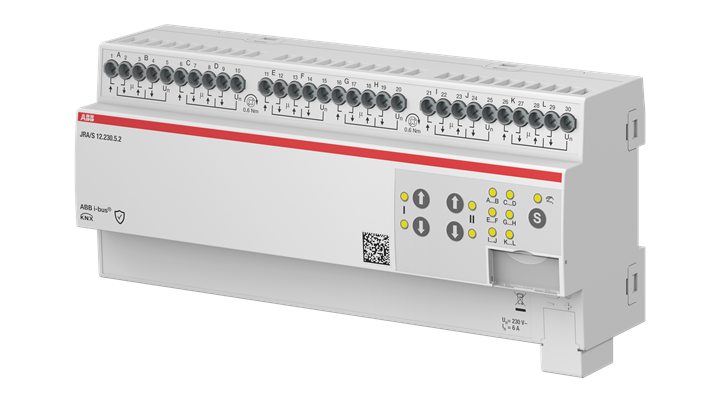

JRA/S12.230.5.2 Blind/Roller Shutter Act, Travel Det, 12-f, 230 V AC, Man Op, MDRC – Image 2 of 3

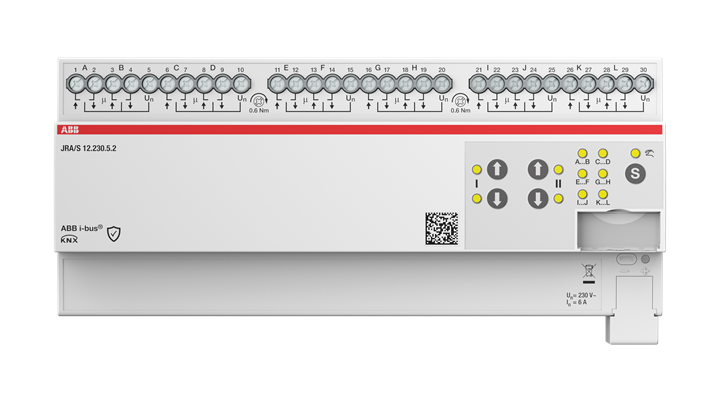

JRA/S12.230.5.2 Blind/Roller Shutter Act, Travel Det, 12-f, 230 V AC, Man Op, MDRC – Image 3 of 3

1 / 3

JRA/S12.230.5.2 Blind/Roller Shutter Act, Travel Det, 12-f, 230 V AC, Man Op, MDRC

Name: JRA/S12.230.5.2 Blind/Roller Shutter Act, Travel Det, 12-f, 230 V AC, Man Op, MDRC
Brand: ABB
SKU: 2CDG110291R0011
Price: 786.17 GBP
Availability: OutOfStock

For the control of independent 230 V AC motors via ABB i-bus® KNX. The devices are designed for positioning blinds, roller shutters, awnings and other shading products as well as for controlling doors, windows and ventilation flaps. Additional auxiliary voltage is not needed. The travel times of the motor are detected automatically via current detection. To protect the motor, the output contacts are electromechanically locked against each other. Push buttons are located at the front of the device to control the outputs e.g., during commissioning. The current status of the output is displayed via LEDs if the output is selected.

Product identifiers

SKU: 2CDG110291R0011

EAN: 4053546110968

GTIN: 4053546110968

MPN: JRA/S12.230.5.2

Loyalty points: 79

Price: £ 786.17 Excl. VAT

Specifications

Bus system KNX	yes
Bus system LON	no
Mounting method	DRA (DIN-rail adapter)
Type of current	AC
Number of inputs	-
Other bus systems	None
Power consumption	-
Bus system Powernet	no
With LED indication	yes
With bus connection	yes
Max. switching power	1380
With switch function	-
Bus module detachable	no
Degree of protection (IP)	IP20
Bus system radio frequency	no
Radio frequency bidirectional	-
Switching current (resistive)	-
Local operation/hand operation	-
Bus system KNX-RF (Radio Frequency)	no
Width in number of modular spacings	12
Max. number of venetian-blind outputs	-
Min. depth of built-in installation box	64.5
