Stackable PCB terminal block 2.5 mm² Pin spacing 5/5.08 mm gray

Name: Stackable PCB terminal block 2.5 mm² Pin spacing 5/5.08 mm gray
Brand: Wago
SKU: 236-401
Availability: InStock

Stackable PCB terminal block; 2.5 mm²; Pin spacing 5/5.08 mm; 1-pole; CAGE CLAMP®; commoning option; gray

Product identifiers

SKU: 236-401

EAN: 4044918768658

GTIN: 4044918768658

MPN: 236-401

Price range: £ 0.23 - £ 0.27 Excl. VAT

Connectors

Specifications

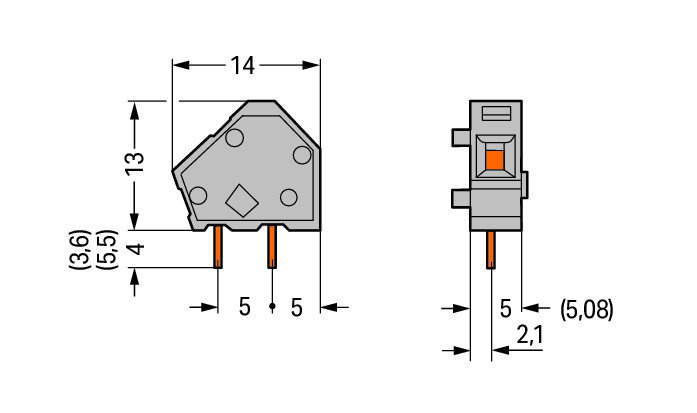

Height	13
EFNA0008	V0
Length pin	4
Rated voltage	320
Housing colour	Grey
Type of banding	None
Number of levels	1
Pollution degree	2
Rated current In	24
Type of fastening	Solder
Connection type PCB	Soldering connection
Rated surge voltage	4
Operating temperature	-60 - 105
Over voltage category	III
Type of PCB fastening	Connecting contact
Diameter connection pin	-
Material insulation body	Thermoplastic
Connection type conductor	Spring clamp connection
Material connection surface	Tin
Modular spacing connections	5
RAL-number (similar) housing	-
Angle PCB/conductor connection	45°/135° (downwards inclined)
Number of electrical connections	1
Degree of protection (IP), mounted	-
Connectable conductor cross section solid-core	0.08 - 2.5
Connectable conductor cross section multi-wired	0.08 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 1.5
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 2.5
