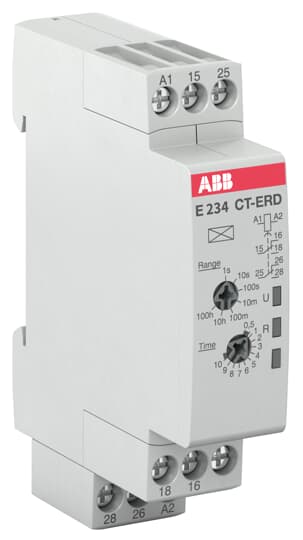

CT-ERD.22 Time relay, ON-delay 2c/o, 24-48VDC, 24-240VAC

Link copied
SKU
EAN
GTIN
MPN

CT-ERD.22 Time relay, ON-delay 2c/o, 24-48VDC, 24-240VAC by ABB is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 2 of them. Trade prices range from £62.16 to £70.29 excl. VAT. Voltimum+ members earn 33 points per unit.

The CT-ERD.22 is a single-function electronic time relay from the CT-D timer range. It provides an ON-delay (delay on make) function with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 5 A.

Voltimum+ Loyalty Programme Loyalty points: 33

Price range: £ 62.16 - £ 70.29 Excl. VAT

Specifications

Depth 63
Width 17.5
Height 80
Time range
Nominal current 5
Material contact -
Function star-delta no
Complete with socket no
Max. starting current -
Degree of protection (IP) IP20
With semiconductor output no
Operating voltage AC 50 Hz
Suitable as remote control no
Material of contact surface -
Type of electric connection Screw connection
Rated control supply voltage DC
Function delay on de-energization no
Outputs, reversible delayed/undelayed no
Rated control supply voltage AC 60 Hz
Function floating contact on de-energization no
Clock function, starting with pulse, variable no
Number of outputs, delayed, change-over contact 0
Number of outputs, undelayed, change-over contact 0
Function flashing, starting with pulse, fixed time no
Number of outputs, delayed, normally closed contact 0
Number of outputs, undelayed, normally closed contact 0

Documents

Deeplink product page

Open

Deeplink REACH

1SVD981001-4501_en_C_REACh Info for Electronic Relays and Controls.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

Open

Product data sheet

Open

Declaration RoHS

1SVD981001-4401_ROHS_Electronic Relays and Controls_revB_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

1SVD981010-0004.pdf

Open
