Schneider Electric
Popularity Top 30% More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

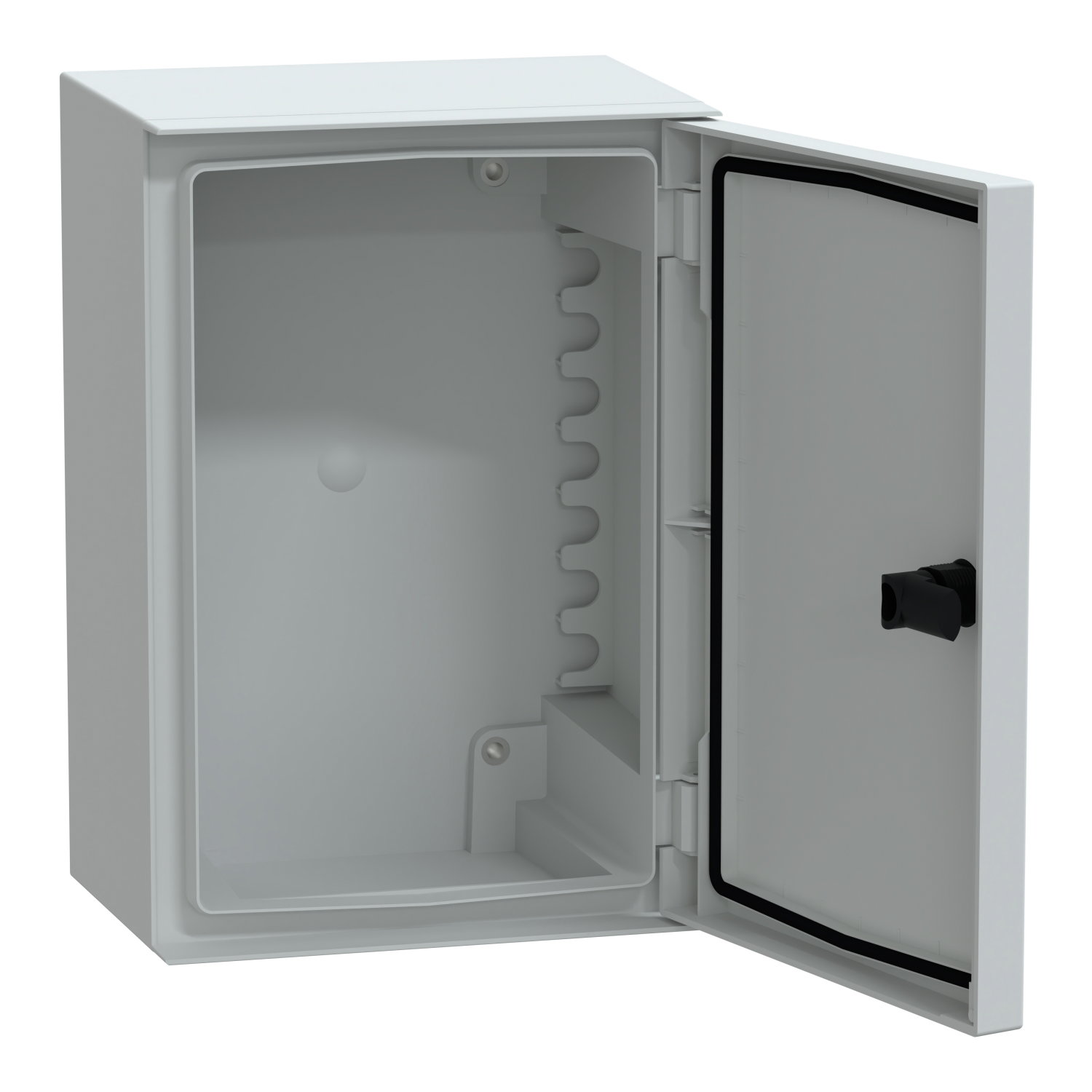

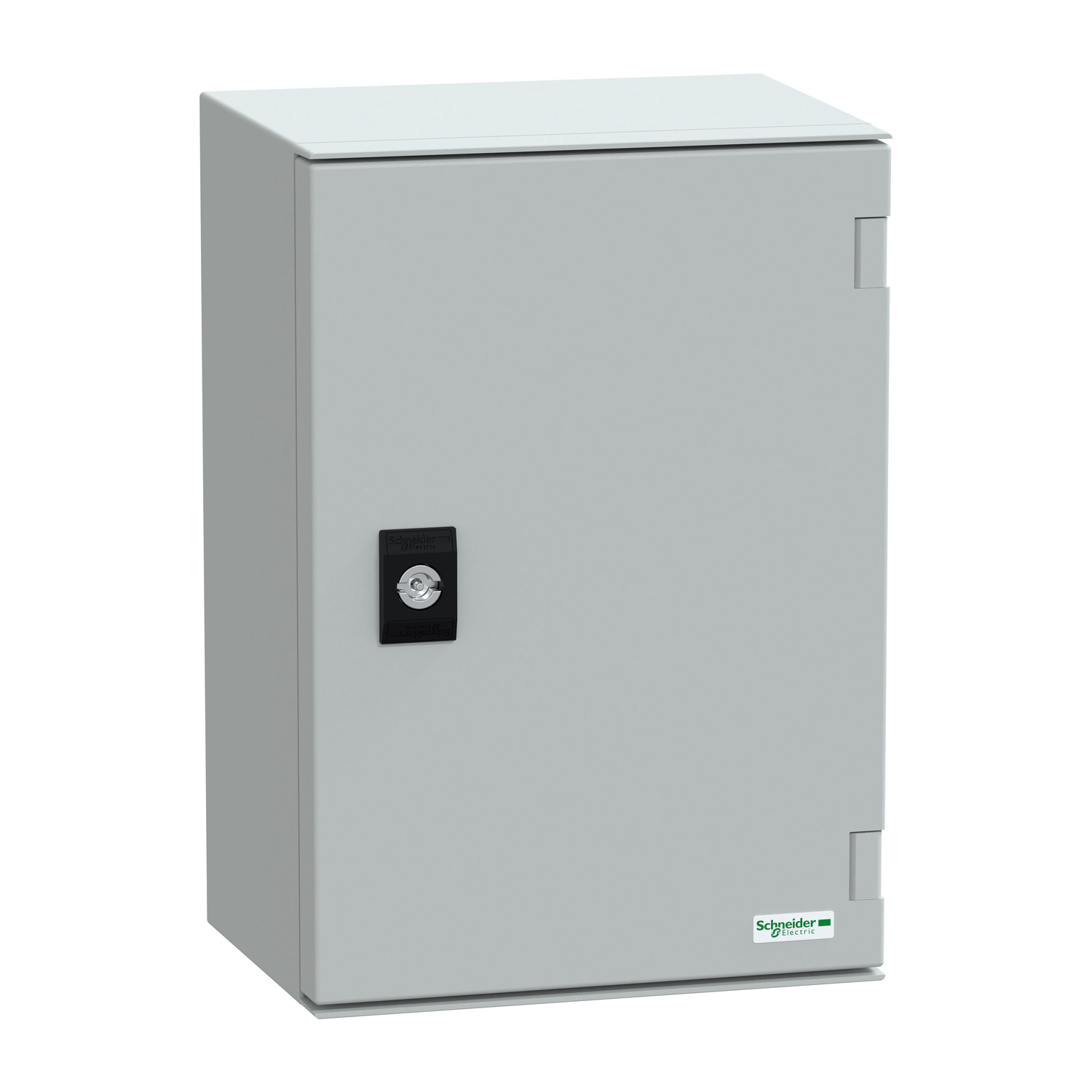

Wall-mounting enclosure ABS/PC monobloc IP66 H310xW215xD160mm

Wall-mounting enclosure ABS/PC monobloc IP66 H310xW215xD160mm by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £60.22 to £81.31 excl. VAT. Voltimum+ members earn 10 points per unit.

PanelSeT PLM wall-mounting ABS/PC enclosure monobloc. 310 x 215 x 160 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 1 lock (3 mm double-bar lock). Accessible front. ABS + PC material. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

Product identifiers

SKU: NSYPLM32G
EAN: 3606480776472
GTIN: 3606480776472
MPN: NSYPLM32G

Voltimum+ Loyalty Programme Loyalty points: 10

Price range: £ 60.22 - £ 81.31 Excl. VAT

Categories

Enclosures & Panels Weatherproof Enclosures

ETIM group

Control cabinet systems

Specifications

Depth 160 mm
Width 215 mm
Colour Grey
Height 310 mm
Material Plastic
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Other
Surface finishing Untreated
With mounting plate no
With ventilation door no
Floor standing wall model -
Suitable for wall built-in yes
Degree of protection (NEMA) 4X
Suitable for metrical mounting -
Max. permissible load of the door(s) according to IEC 62208 18 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
