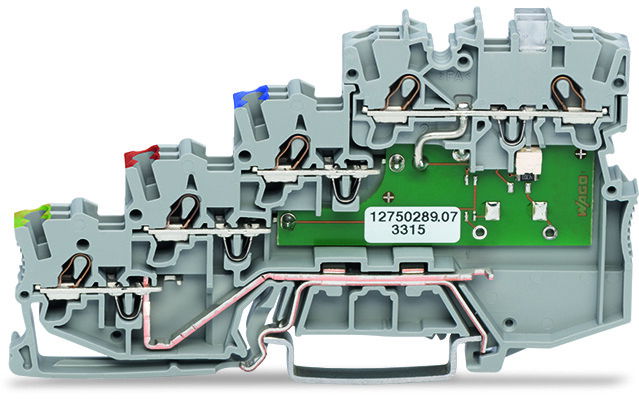

4-conductor sensor terminal block LED (yellow) for PNP-(high-side) switching sensors gray
Wago

4-conductor sensor terminal block LED (yellow) for PNP-(high-side) switching sensors gray

4-conductor sensor terminal block; LED (yellow); for PNP-(high-side) switching sensors; with ground connection via push-in type jumper bars; 1 mm²; Push-in CAGE CLAMP®; 1,00 mm²; gray

Product identifiers

SKU: 2000-5410/1102-950
EAN: 4055143452854
GTIN: 4055143452854
MPN: 2000-5410/1102-950

Voltimum+ Loyalty Programme Loyalty points: 12 (x50)

Price range: £ 12.10 - £ 52.48 Excl. VAT

Categories

Terminal Blocks Terminals, Connectors & Interconnects

Specifications

Depth 52.4
Width 7
Colour Grey
Height 97.3
Rated voltage 24
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 4
Rated current In 13.5
LED switching for PNP
Colour light source Other
Operating temperature 105 - 105
With shield connection no
With power supply function no
Explosion-tested version 'Ex e' no
Type of electrical connection 2 Spring clamp connection
Connectable conductor cross section solid-core 0.5 - 1.5
Inflammability class of insulation material according to UL94 -
Connectable conductor cross section fine-strand without cable end sleeve 0.14 - 1.5

Documents
