2-conductor fuse terminal block with pivoting fuse holder with end plate gray

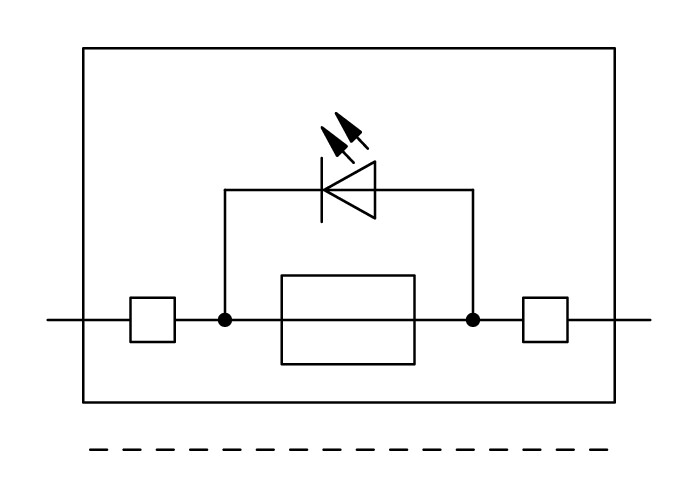

2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for glass cartridge fuse ¼" x 1¼"; with blown fuse indication by LED; 12 - 30 V; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP®; gray
Product identifiers
SKU: 2006-1631/1099-541
EAN: 4045454824082
GTIN: 4045454824082
MPN: 2006-1631/1099-541
Loyalty points:
6
Price range: £ 12.51 - £ 12.77 Excl. VAT
Categories
Features
|
Depth
|
59
|
|
Width
|
10.4
|
|
Colour
|
Grey
|
|
Height
|
96.3
|
|
Rated voltage
|
800
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of levels
|
1
|
|
Rated current In
|
10
|
|
Type of fuse holder
|
Swivelling
|
|
Type of fuse insert
|
G-fuse 5x20 mm
|
|
Operating temperature
|
105 - 105
|
|
Closing plate required
|
no
|
|
Material insulation body
|
Thermoplastic
|
|
Type of electrical connection 1
|
Spring clamp connection
|
|
Type of electrical connection 2
|
Spring clamp connection
|
|
Voltage type for defect indication
|
AC
|
|
Supply voltage for defect-indication
|
12 - 30
|
|
Connectable conductor cross section solid-core
|
1 - 10
|
|
Connectable conductor cross section multi-wired
|
0.5 - 6
|
|
Type of indication element for defect indication
|
LED
|
|
Inflammability class of insulation material according to UL94
|
V0
|
|
Connectable conductor cross section fine-strand with cable end sleeve
|
1.5 - 6
|
|
Connectable conductor cross section fine-strand without cable end sleeve
|
0.5 - 10
|
