Converter module 30 W - 24..28.8 V DC, 5 V DC - 6 A - for regulated SMPS
1 / 7
Converter module 30 W - 24..28.8 V DC, 5 V DC - 6 A - for regulated SMPS
Converter module 30 W - 24..28.8 V DC, 5 V DC - 6 A - for regulated SMPS by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd and Farnell. It is currently in stock at 1 of them. Trade prices range from £98.72 to £170.22 excl. VAT. Voltimum+ members earn 20 points per unit.

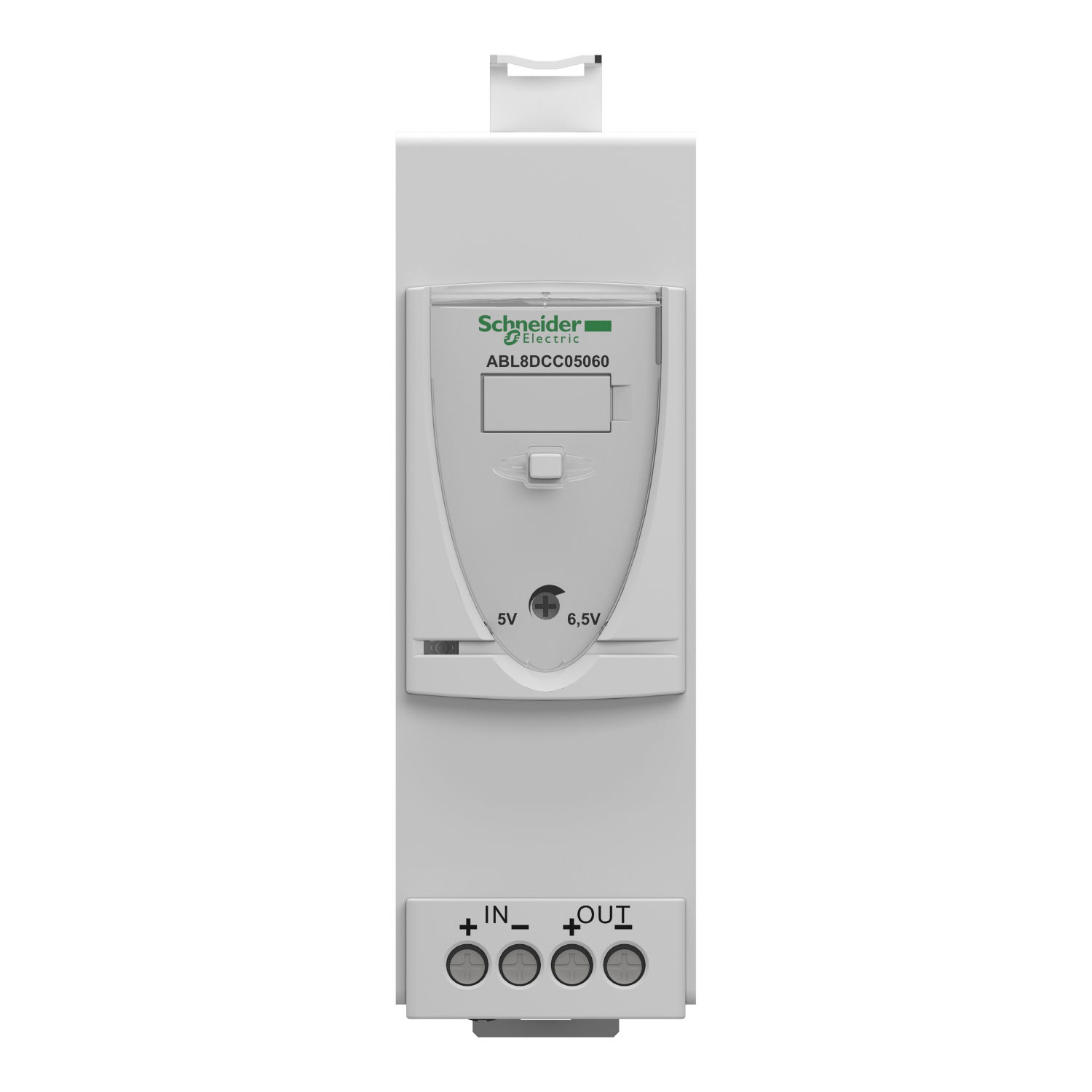

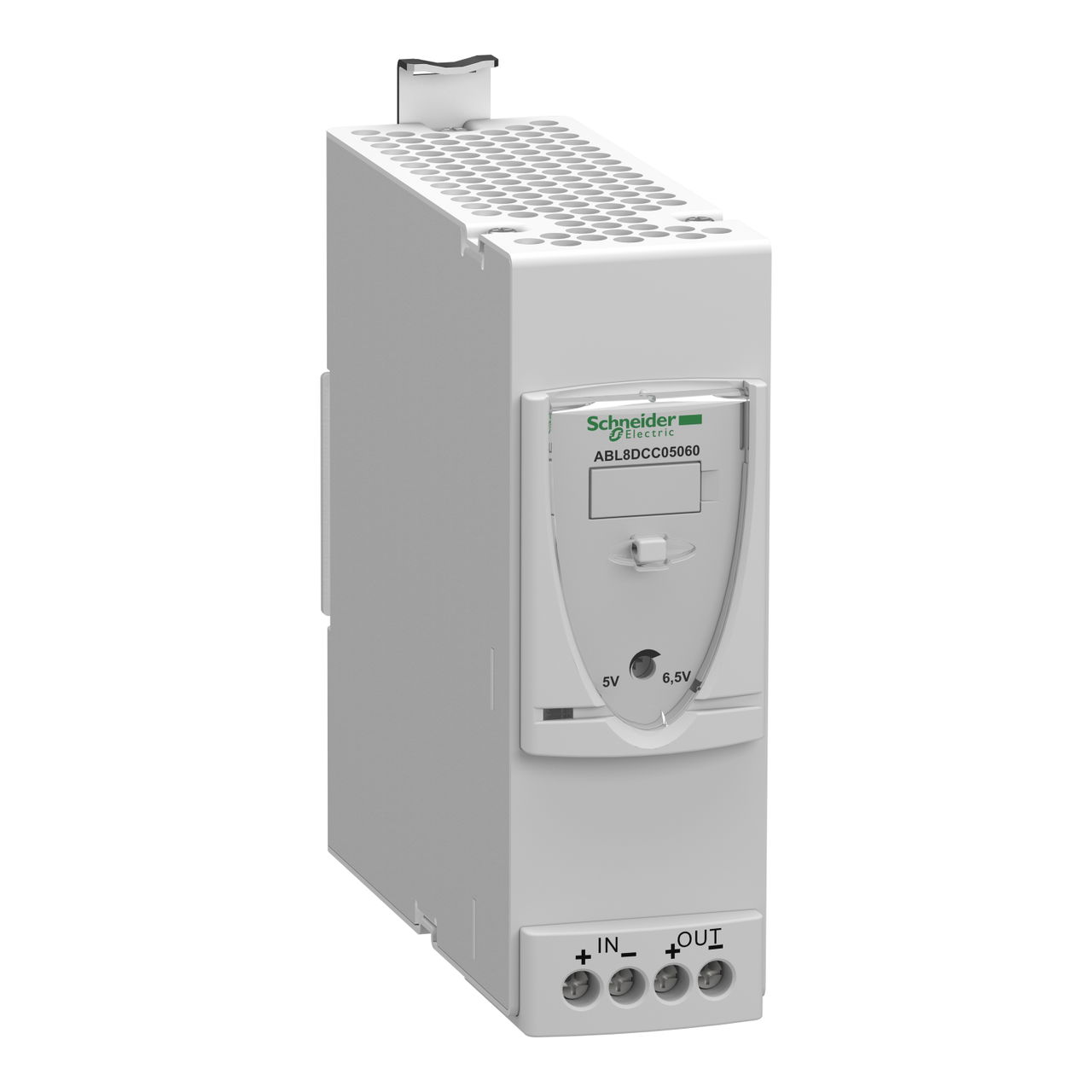

This ABL8 converter module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 0.25A at 5V DC and a rated power output of 30W. This converter module is designed for automation and instrumentation circuits requiring extra low voltage (ELV / SELV). It finely adjusts the output voltage with a rotary trimmer, to take into account the voltage at the end of your auxiliary control circuit. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,300kg. It is a functionnal module for power supply for industrial use, rail mounting. It is certified by RCM, EAC, CCSAus, UL. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Product identifiers
SKU: ABL8DCC05060
EAN: 3389119406888
GTIN: 3389119406888
MPN: ABL8DCC05060
Loyalty points:
20
Price range: £ 98.72 - £ 170.22 Excl. VAT
ETIM group
Specifications
| Depth | 140 mm |
| Width | 44 mm |
| Height | 143 mm |
| Stabilized | yes |
| Power output | 30 W |
| Built-in width | - |
| Built-in height | - |
| Modular version | yes |
