Pro Charger DC
Sync Energy EV DC Pro Charger 120kW

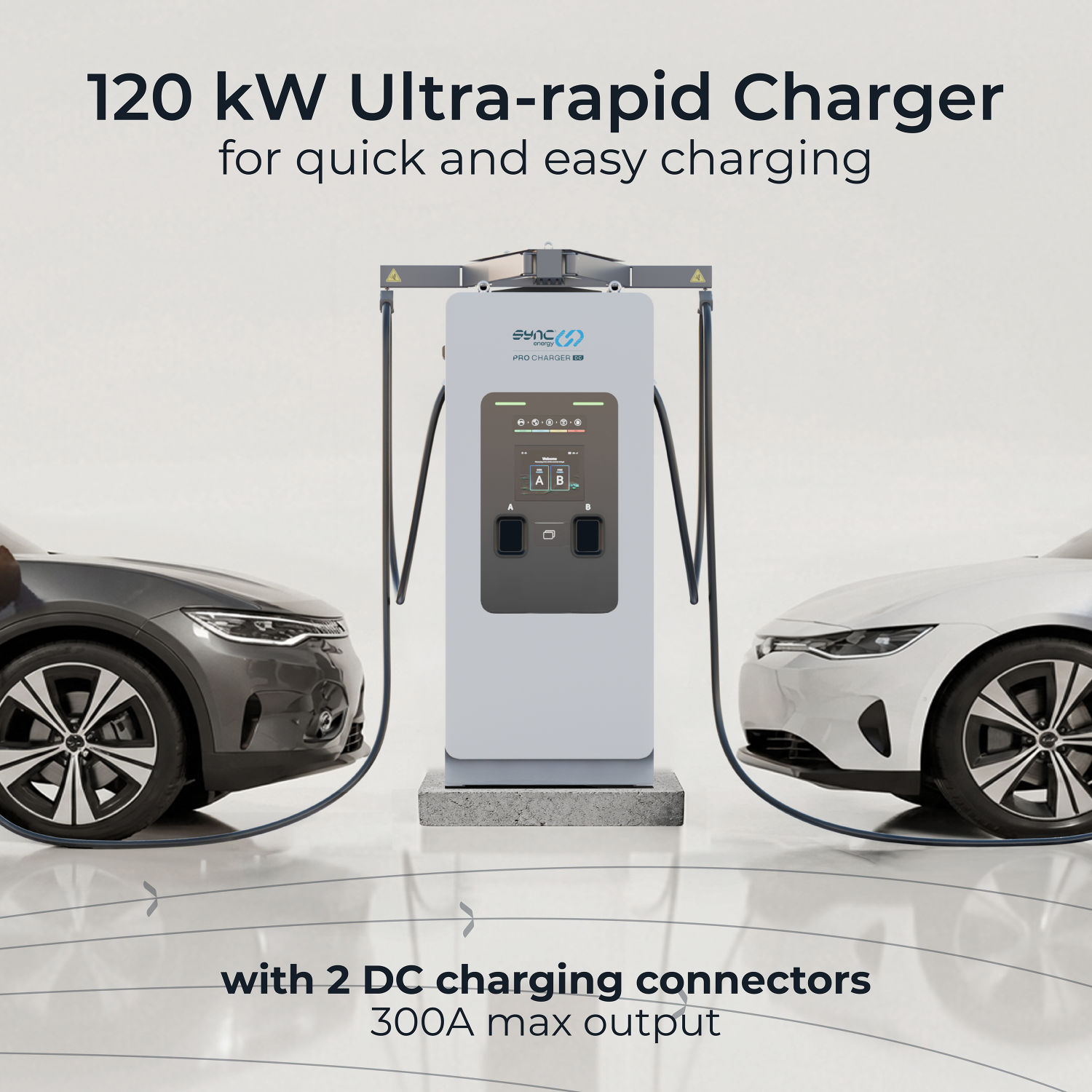

- Ultra-Rapid Charging Mode: Floor mounted, it offers flexible configuration with two 120kW DC charging connection cables (7.5m) delivering up to 300A output. Compatible with most EV car brands.

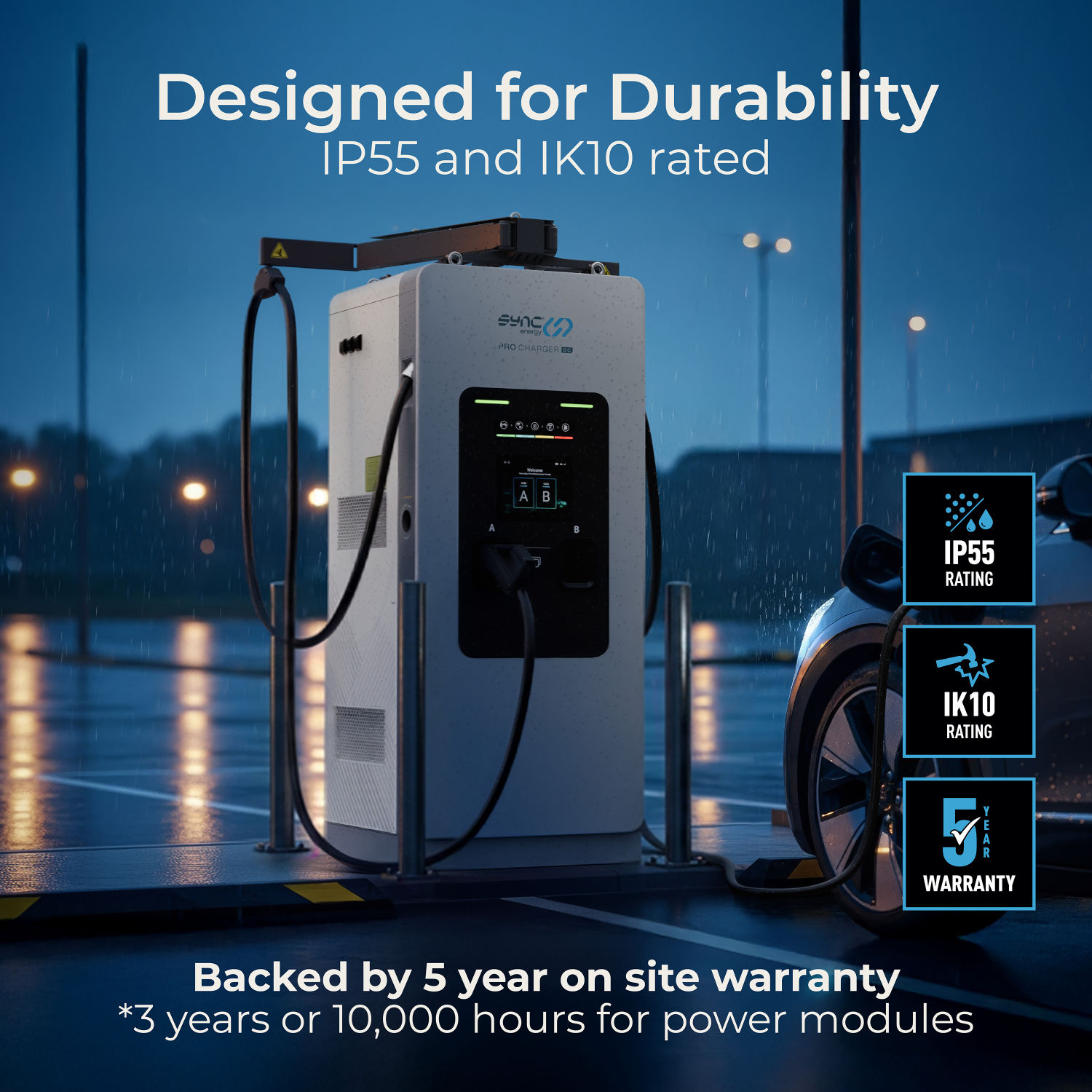

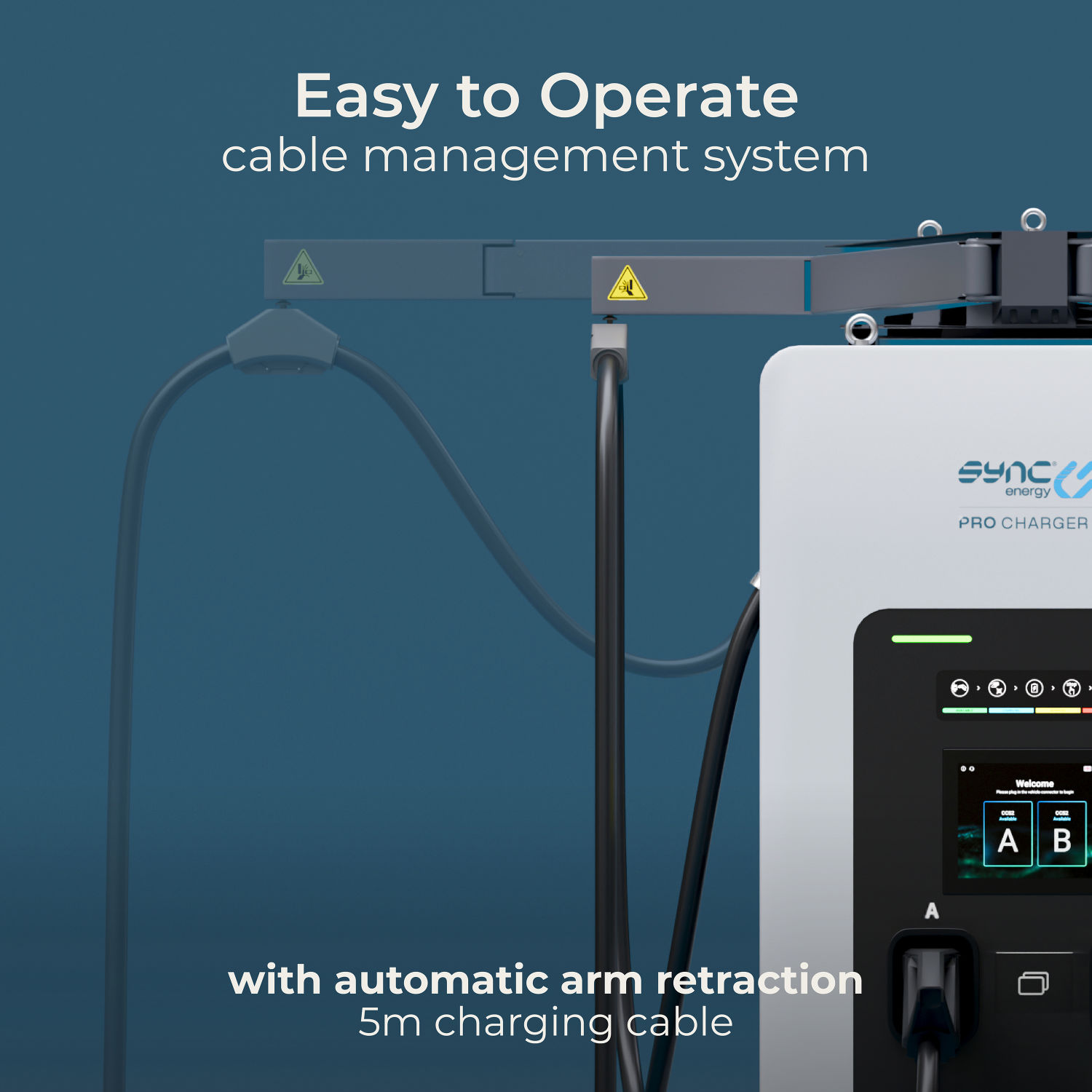

- High-Performance: Operating at 95% power efficiency ensuring reliable energy transfer. Ideal for service stations, retail and public areas (IP55 and IK10). Automatic arm retraction for easy use.

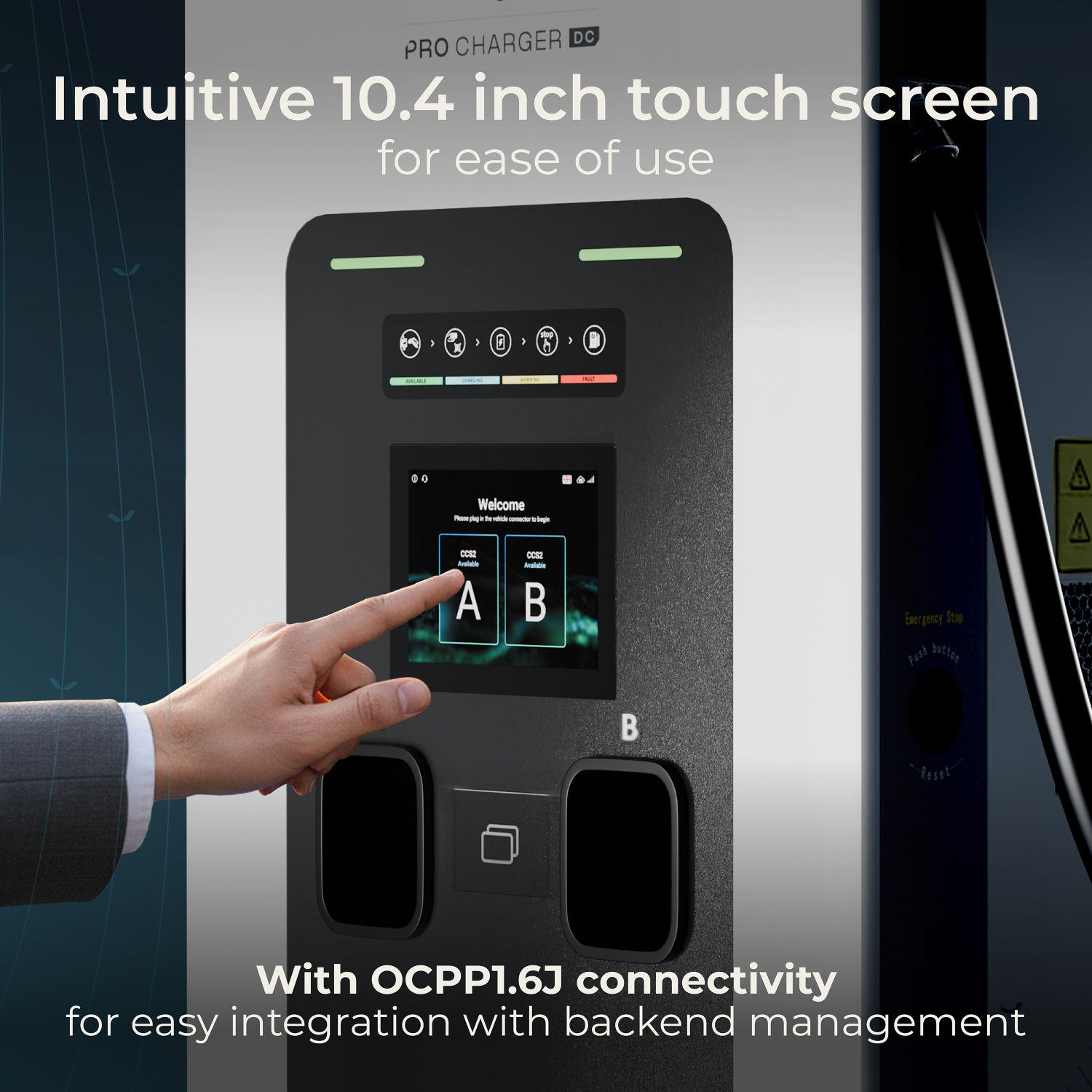

- Intuitive 10.4-Inch Touchscreen Interface: Simplifies installation, configuration and testing aswell as user-friendly operation. Select from multiple languages and integrates with RFID authentication.
- Smart Connectivity with OCPP 1.6J Protocol: Equipped with 4G, Wi-Fi, and Ethernet, it connects effortlessly and supports remote monitoring, smart charging, and customisation via the Monta app.

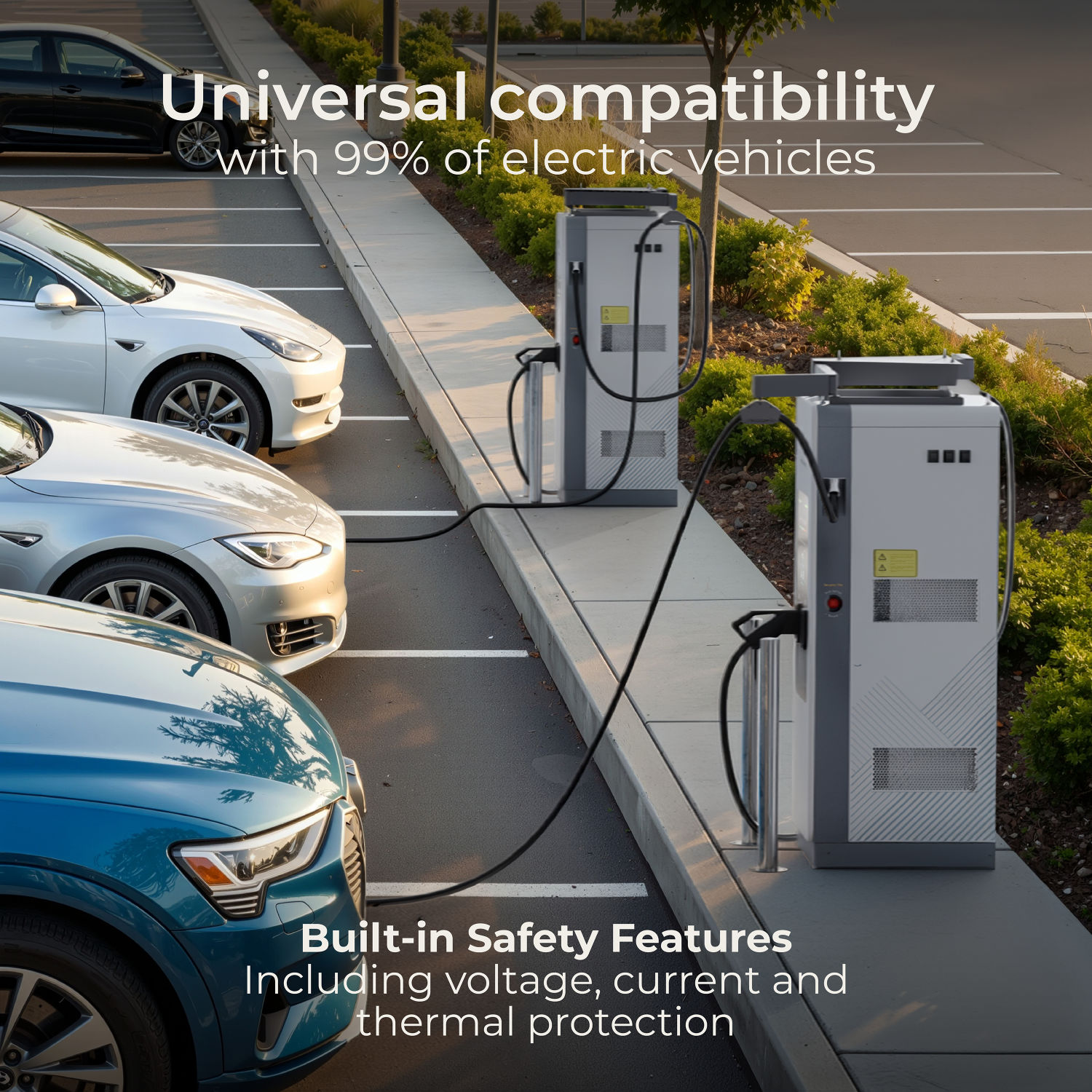

- High Safety Protection: Built-in premium safety features including under/overvoltage, DC overcurrent, over-temperature and surge protection. Cable protection and management system as standard.
Product identifiers
SKU: EVPDCF120BGR-01
MPN: EVPDCF120BGR-01
Categories
Specifications
Dimensions
| Product HxWxD (mm) | 2050x800x750 |
| Product Weight (kg) | 435 |
Construction
| Number of Sockets | 2 |
| Switch Position | Outboard |
| Housing Material | Brushed Stainless Steel |
| Base Material | Brushed Stainless Steel |
| Base Finish | Powder Coated |
| Screen Size | 10" |
