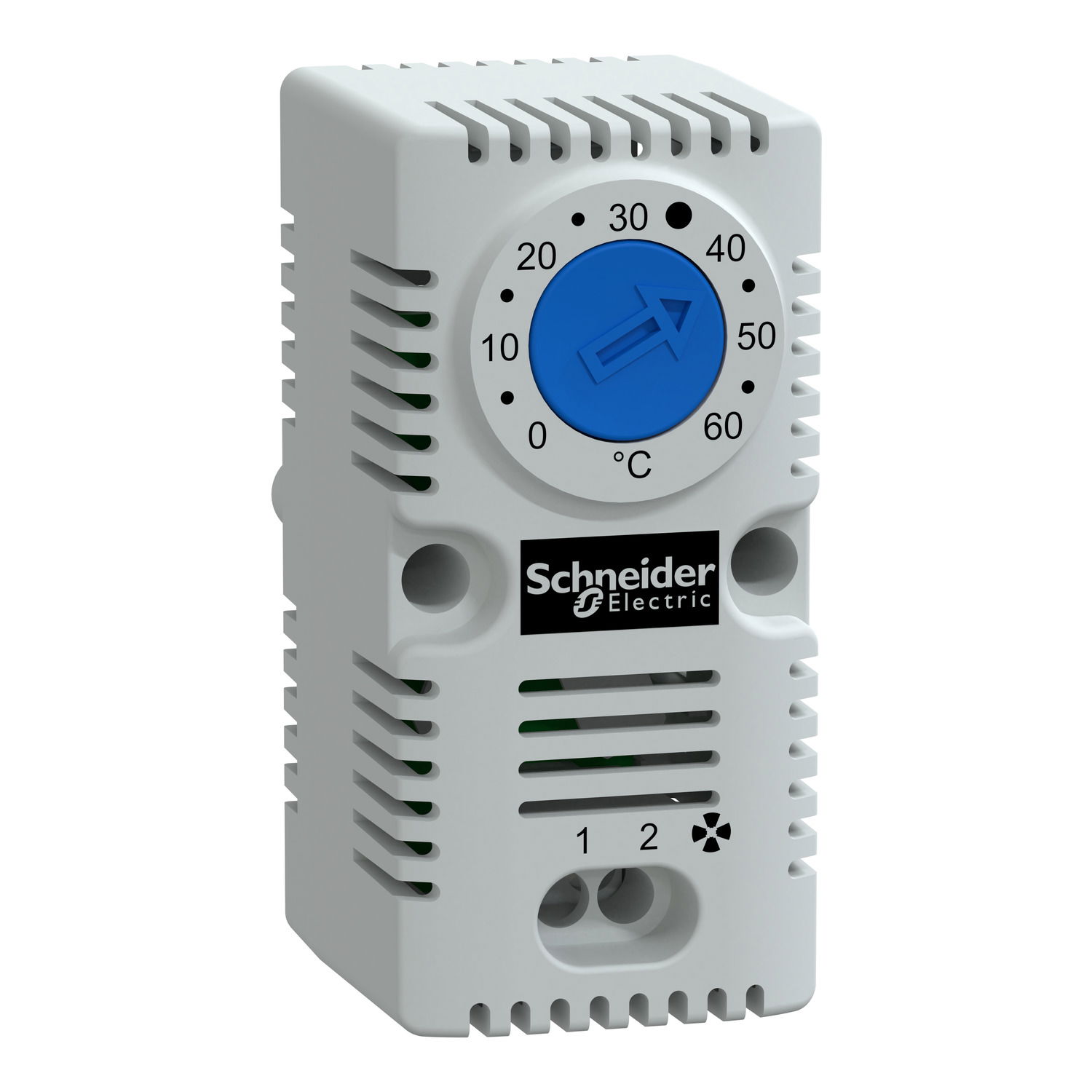

ClimaSys CC - simple thermostat 250V - range of temperature 0…60°C - NO - °C

Link copied
SKU
EAN
GTIN
MPN

ClimaSys CC - simple thermostat 250V - range of temperature 0…60°C - NO - °C by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 3 more. It is currently in stock at 5 of them. Trade prices range from £17.23 to £25.85 excl. VAT. Voltimum+ members earn 3 points per unit.

ClimaSys CC Simple thermostat. 250V AC. 68 x 33 x 44 mm. Sensor Bimetal with NO contact type. 1 ventilation function. Electrical connection by 4 terminals 2.5mm². Mounting mode by 35mm DIN rail, cross rails, on mounting plate Spacial upright. Made in PC. Light grey. Self-extinguishing UL94 (material V0). Protection IP20.

Voltimum+ Loyalty Programme Loyalty points: 3

Price range: £ 17.23 - £ 25.85 Excl. VAT

Specifications

Model Thermostat
Mounting method Other
Rated current In 10 A
Rated voltage DC
Rated voltage AC 50 Hz
Rated voltage AC 60 Hz
Type of switch function Normally open contact (NO)
With digital indication no
Adjustable setting value for relative air humidity
