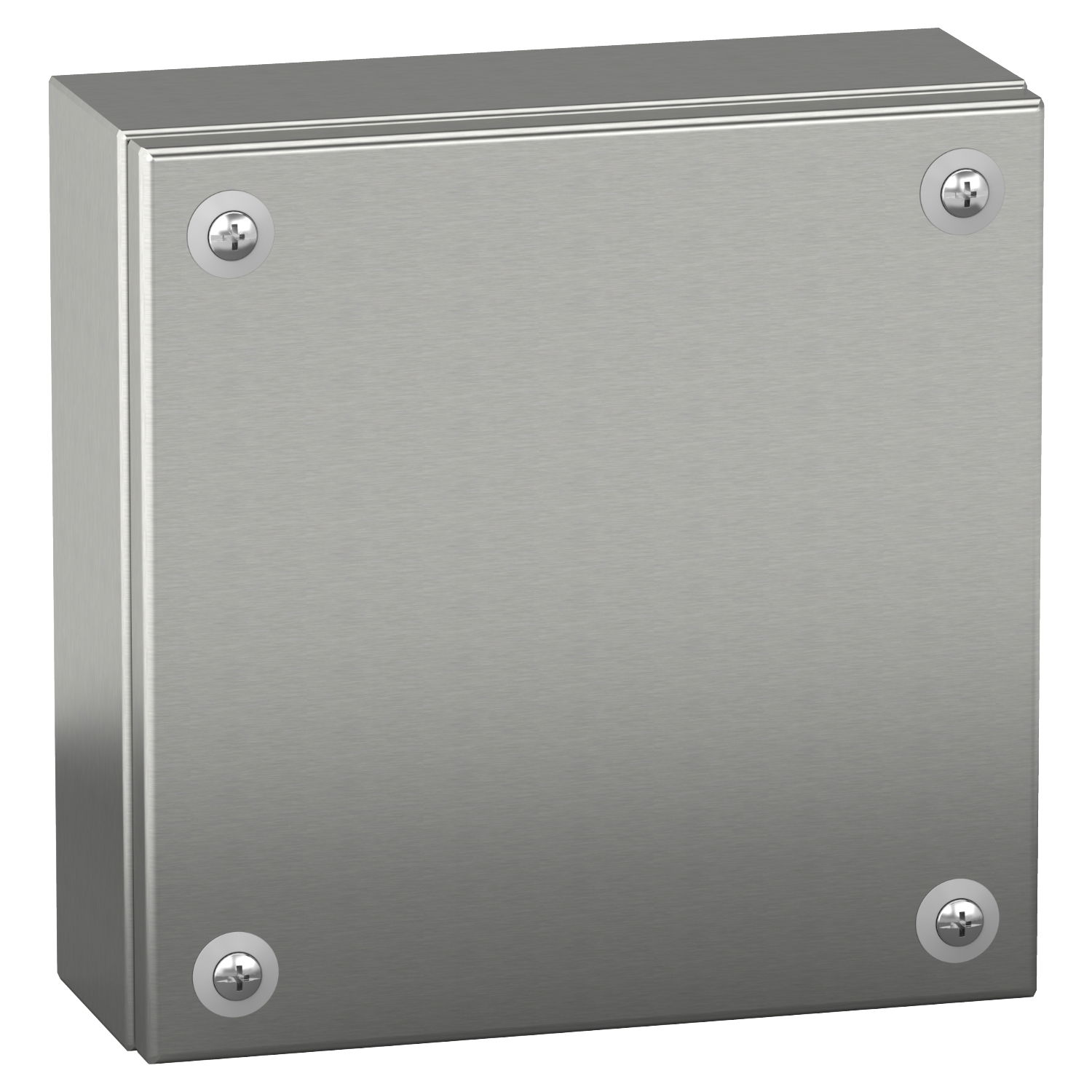

"Stainless steel wall mounted industrial box, PanelSeT SBX, 300x300x120 mm, IP66"

Link copied
SKU
EAN
GTIN
MPN

"Stainless steel wall mounted industrial box, PanelSeT SBX, 300x300x120 mm, IP66" by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £284.95 excl. VAT. Voltimum+ members earn 33 points per unit.

The PanelSeT SBX is a multi-purpose stainless steel 304L industrial box designed for use in harsh environments It is certified by BV, BVM and UL, and is rated IK10 (IEC 62262) for its high impact resistance, and IP66 (IEC 60529) for its dust and water resistance The box has a nominal height, width and depth of 300mm, 300mm and 120mm respectively It is made with a Scotch-Brite® brushed surface finish and consists of 4 cover screws, a cover and a body The cover is secured with a captive screw PZ2 outside the sealed area and can be removed for maintenance purposes The box has a net weight of 3,6kg and is compliant with IEC 62208 standards It can be stored in temperatures between -35-60°C and operated in temperatures between -35-80°C Directly wall mounted o by fixing lugs (to be ordered separately). The enclosure meets the directives IEC 62208 and UL508A, certified by BV and UL respectively. Also compliant with marine requirements of BV Marine Division.

Voltimum+ Loyalty Programme Loyalty points: 33

Price: £ 284.95 Excl. VAT

Specifications

Depth 120 mm
Shape Square
Width 300 mm
Colour Grey
Length 300 mm
EFUK0020 no
EFUK0021 yes
Material Stainless steel
RAL-number 7035
Halogen free yes
Type of inlet -
For Ex-zone gas None
Mounting method Surface mounted
Cover attachment Screwed
Number of inlets 0
Extension possible no
Operating temperature
Explosion-tested version no
Degree of protection (NEMA) 4
Rated insulation voltage Ui -
Material plate thickness cabinet 1.2 mm
