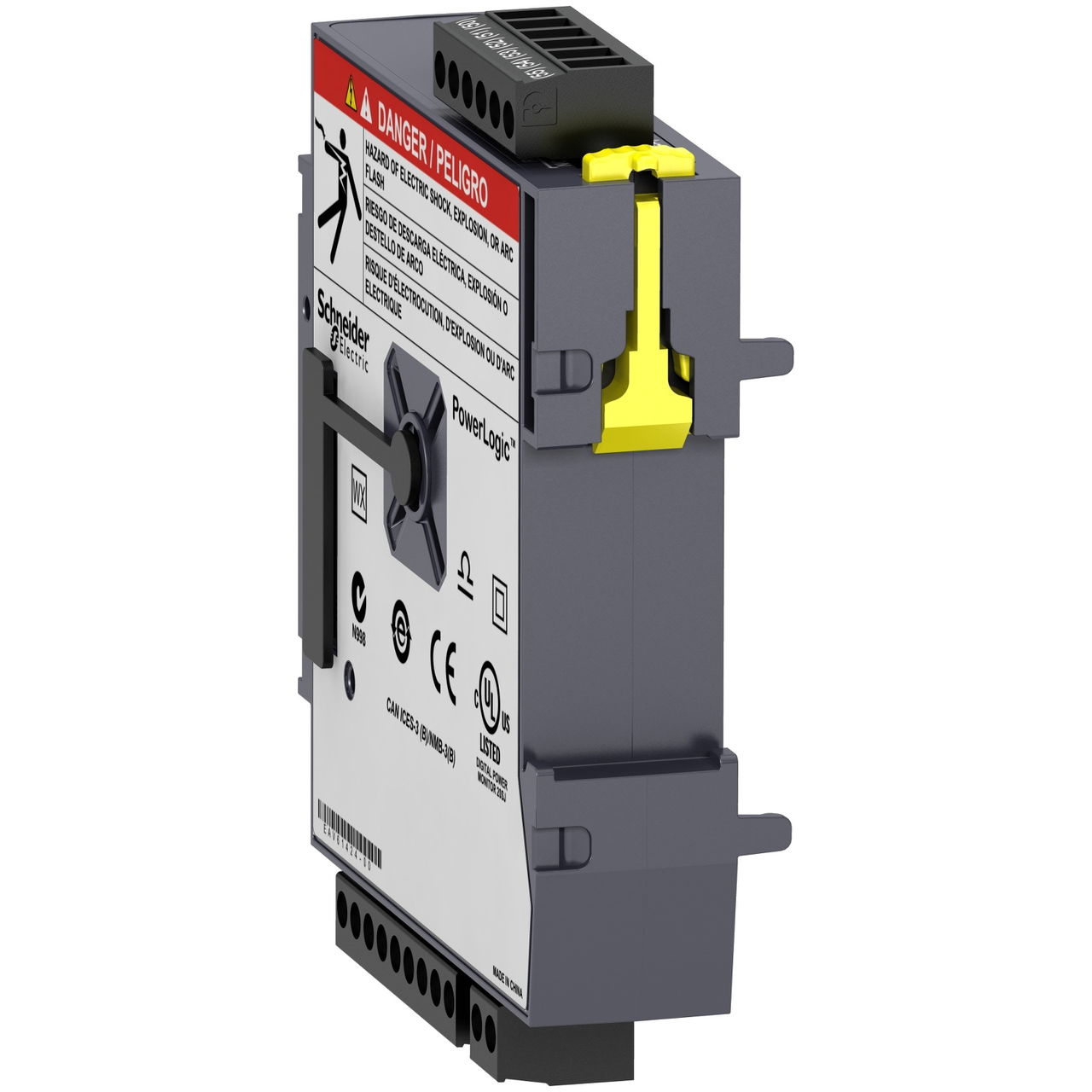

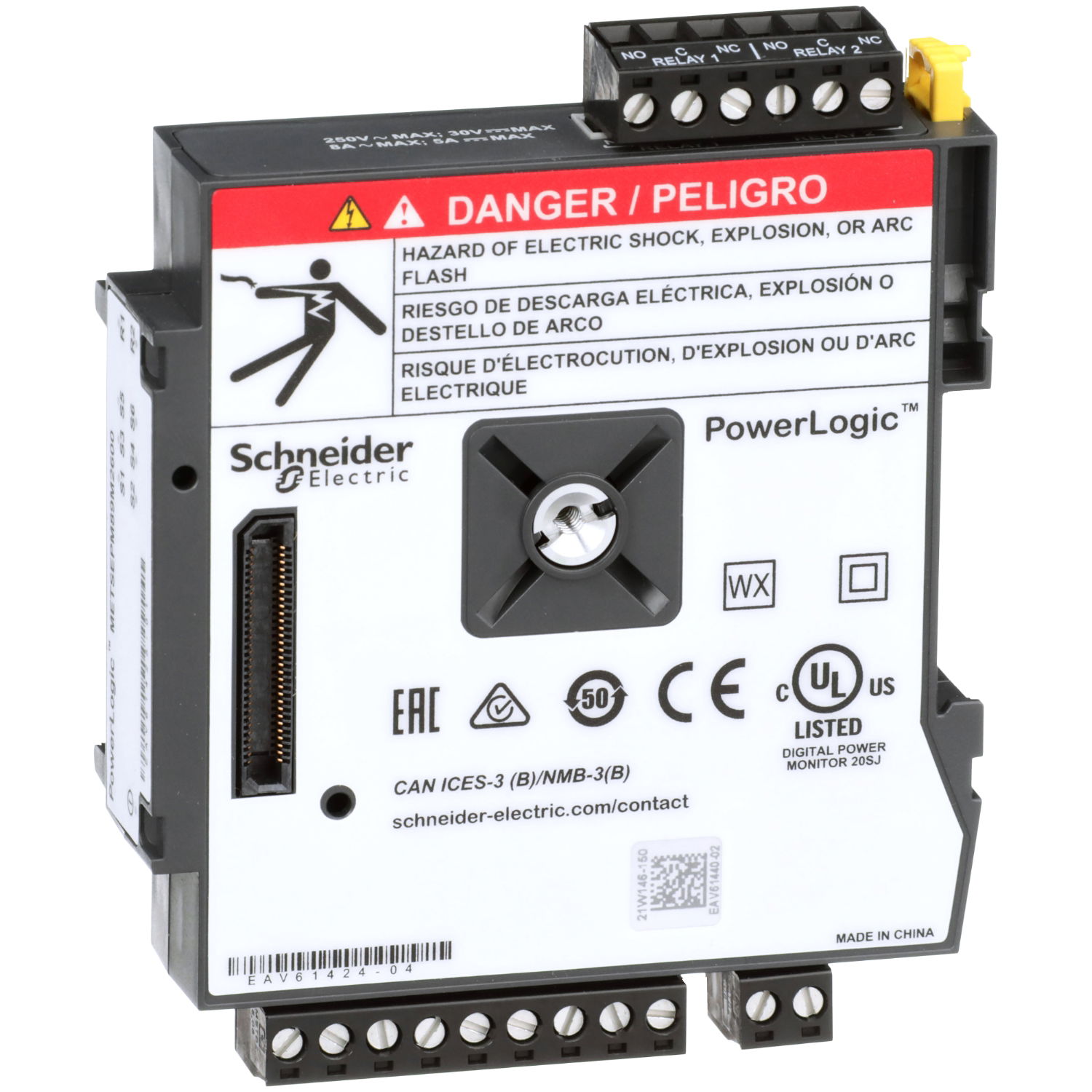

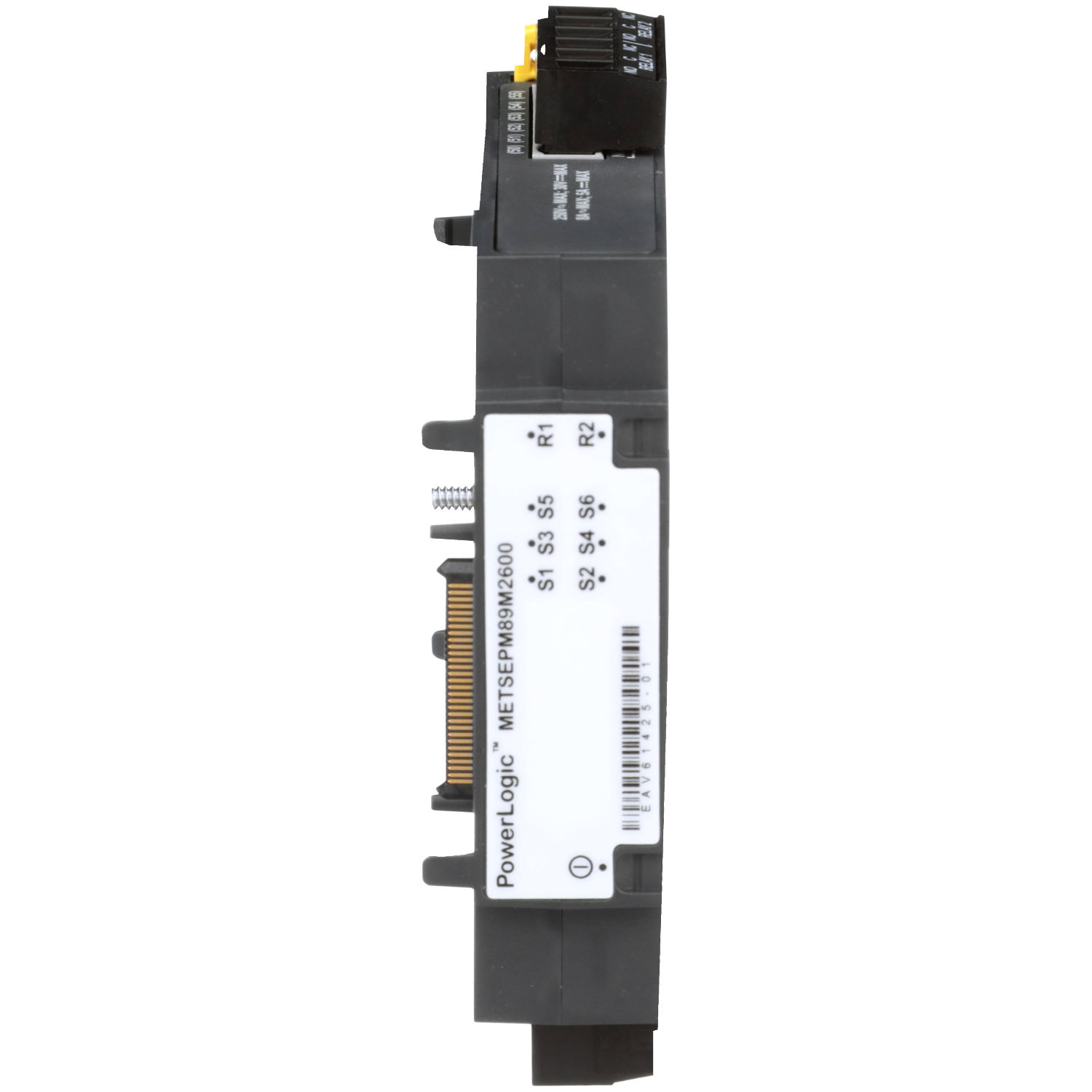

PowerLogic PM8000 - I/O Module - Digital - 6 Inputs + 2 relays outputs
Optional Input Output module compatible with PowerLogic PM8000, ION7400 and ION9000 devices that provides additional digital inputs and relay outputs. This digital module provides 6 digital inputs that support 30VAC or 60VDC. The digital inputs can be excited by the provided wetting source or a user provided external source. Plus 4 relay outputs to provide status indication and to provide control operations. The relay outputs support loads up to 8A at 240VAC. The option modules are attached to the side of the meter providing connection for control power and interfacing bus. The PowerLogic PM8000, ION7400 and ION9000 devices allow up to 4 input/output option modules per meter.
Product identifiers
SKU: METSEPM89M2600
EAN: 3606480701993
GTIN: 3606480701993
MPN: METSEPM89M2600
Loyalty points:
138
Price range: £ 266.53 - £ 373.88 Excl. VAT
Categories
Features
|
Depth
|
90 mm
|
|
Width
|
28 mm
|
|
Height
|
112 mm
|
|
Redundancy
|
no
|
|
Output current
|
8 A
|
|
Supply voltage DC
|
|
|
Type of digital output
|
Relay
|
|
Type of output voltage
|
AC
|
|
Supply voltage AC 50 Hz
|
|
|
Supply voltage AC 60 Hz
|
|
|
Number of digital inputs
|
6
|
|
Input current at signal 1
|
24 mA
|
|
Number of digital outputs
|
2
|
|
Permitted voltage at input
|
|
|
SIL according to IEC 61508
|
None
|
|
Digital inputs configurable
|
no
|
|
Permitted voltage at output
|
|
|
Time delay at signal change
|
|
|
Type of electric connection
|
Screw connection
|
|
Digital outputs configurable
|
no
|
|
Suitable for safety functions
|
no
|
|
Voltage type (supply voltage)
|
DC
|
|
Type of voltage (input voltage)
|
AC/DC
|
|
Appendant operation agent (Ex ia)
|
no
|
|
Appendant operation agent (Ex ib)
|
no
|
|
Explosion safety category for gas
|
None
|
|
Explosion safety category for dust
|
None
|
|
Short-circuit protection, outputs available
|
no
|
|
Performance level according to EN ISO 13849-1
|
-
|
