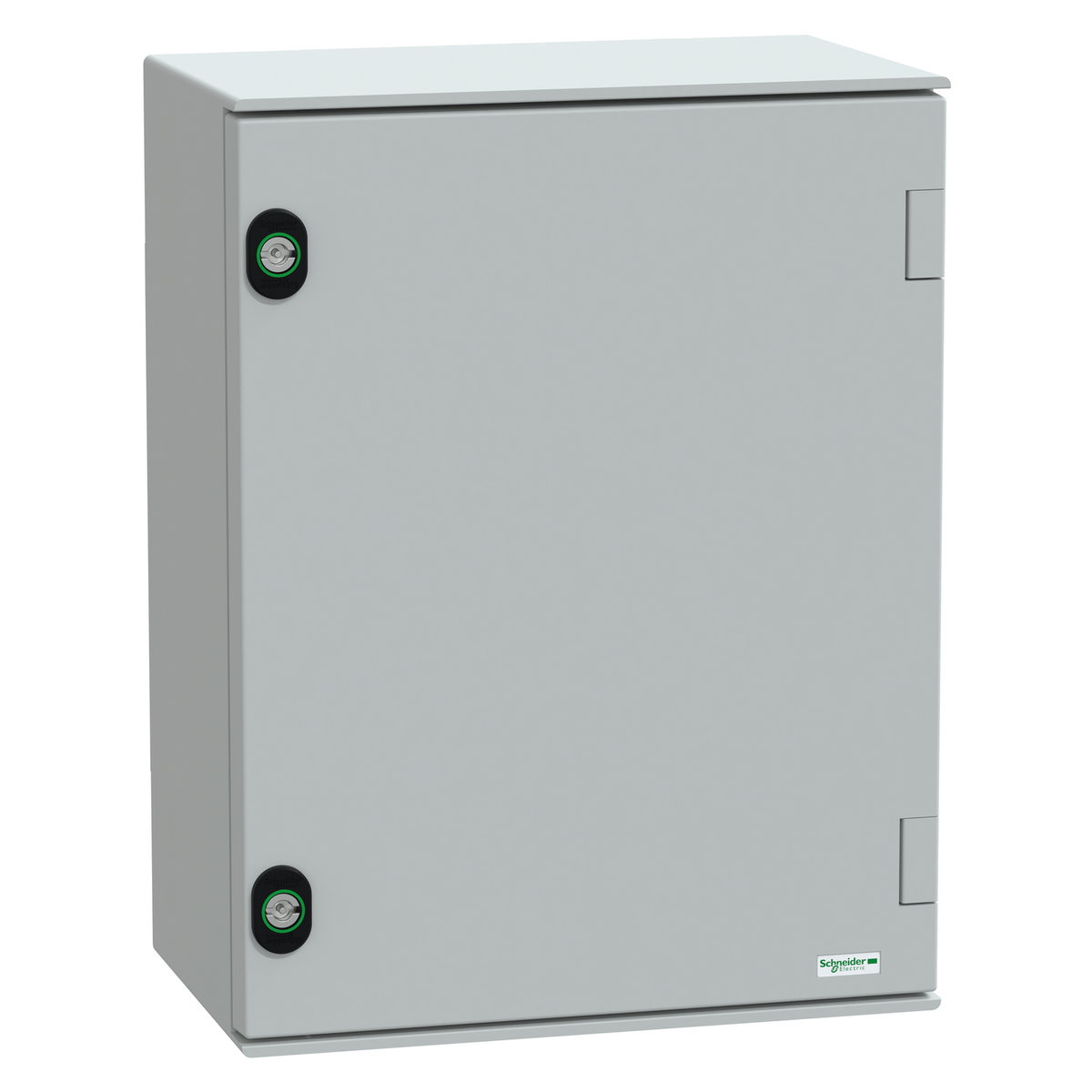

Wall-mounting enclosure polyester monobloc IP66 H430xW330xD200mm

Wall-mounting enclosure polyester monobloc IP66 H430xW330xD200mm by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at 6 of them. Trade prices range from £102.37 to £136.84 excl. VAT. Voltimum+ members earn 17 points per unit.

This PanelSeT PLM (formerly PanelSeT PLM) is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 430 mm, 330 mm, and 200 mm, respectively. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, and two locks. The door is plain and can be opened from the front, with two 3 mm double-bar locks for added security. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance. The enclosure is also fire resistant up to 960 °C (IEC 62208) and meets NEMA classification 13 and 4X standards, as well as IEC 62208.

Product identifiers

SKU: NSYPLM43G
EAN: 3606480776519
GTIN: 3606480776519
MPN: NSYPLM43G

Voltimum+ Loyalty Programme Loyalty points: 17

Price range: £ 102.37 - £ 136.84 Excl. VAT

Categories

Enclosures & Panels Weatherproof Enclosures

ETIM group

Control cabinet systems

Specifications

Depth 200 mm
Width 330 mm
Colour Grey
Height 430 mm
Material Plastic
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Polyester
Surface finishing Untreated
With mounting plate no
With ventilation door no
Floor standing wall model -
Suitable for wall built-in yes
Degree of protection (NEMA) 4X
Suitable for metrical mounting -
Max. permissible load of the door(s) according to IEC 62208 43 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
