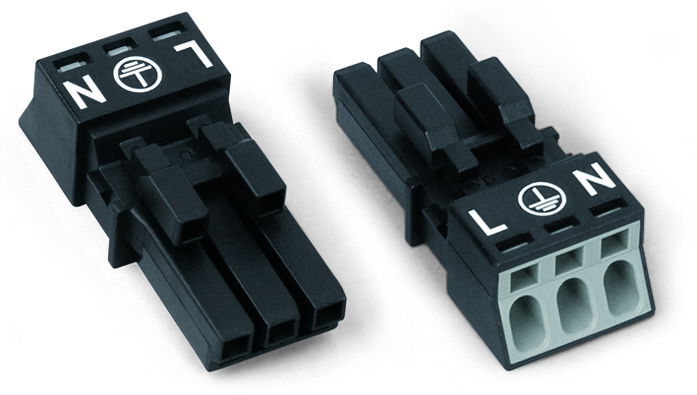

Socket 3-pole Cod. A black

Name: Socket 3-pole Cod. A black
Brand: Wago
SKU: 890-203
Availability: InStock

Socket; 3-pole; Cod. A; 1,50 mm²; black

Product identifiers

SKU: 890-203

EAN: 4055143548519

GTIN: 4055143548519

MPN: 890-203

Price range: £ 2.07 - £ 2.86 Excl. VAT

Specifications

Model	Bus

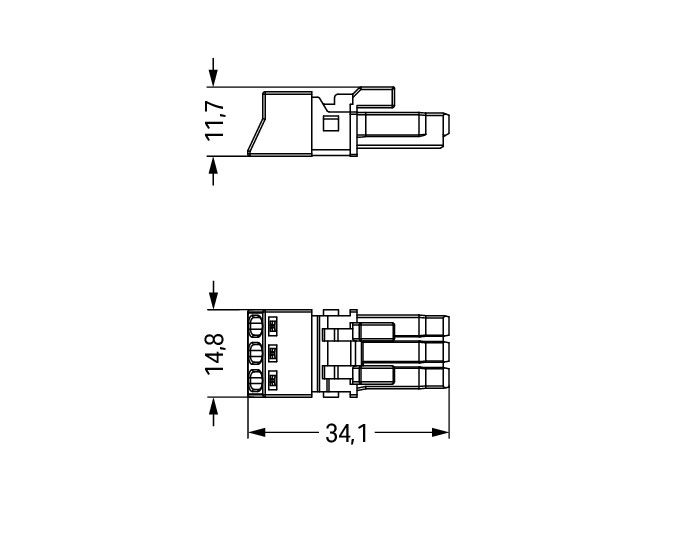

Width	15
Height	11.7
Length	34.1
Fire load	0.02
Halogen free	yes
Rated current	16
Rated voltage	250
Cable diameter
Connection type	Spring clamp connection
Number of poles	3
Type of locking	Separate
Contact material	CuSn
Housing material	Polyamide (PA)
Pollution degree	3
Mechanical coding	yes
Pole codification	L, N, PE
With strain relief	no
Rated surge voltage	4
Continuity resistance	1
Degree of protection (IP)	IP20
Surface treatment contacts	Tinned
Colour coding/contact insert	Black
Number of connections per pole	1
RAL-number coding/contact insert	9004
Connection cross section (solid-core)	0.25 - 1.5
Connection cross section (fine-strand)	0.25 - 1.5
Max. continuous temperature resistance contact part	85
Max. continuous temperature resistance strain relief	105
