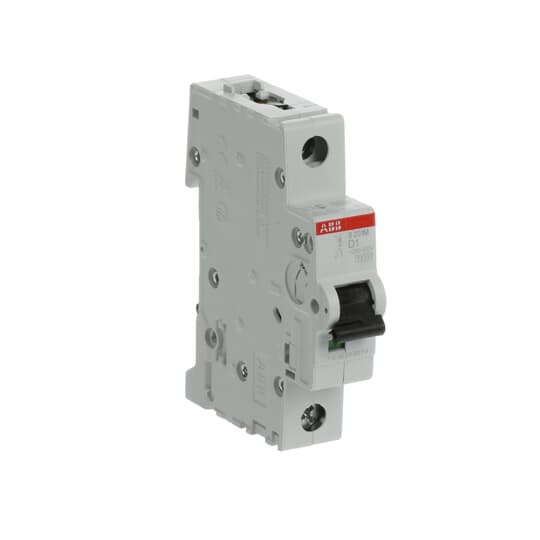

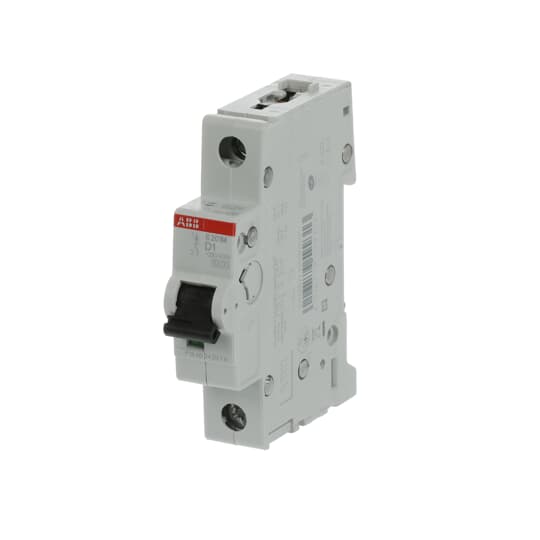

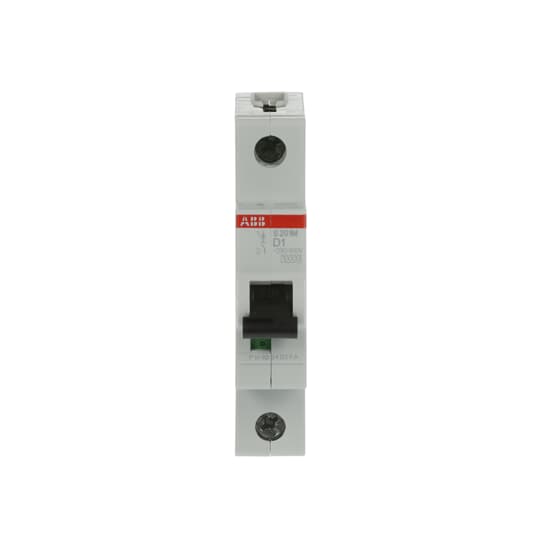

Miniature Circuit Breaker - S200M - 1P - 1 A - D - (AC) 10 kA
1 / 3
Miniature Circuit Breaker - S200M - 1P - 1 A - D - (AC) 10 kA
Miniature Circuit Breaker - S200M - 1P - 1 A - D - (AC) 10 kA by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £23.00 to £29.09 excl. VAT. Voltimum+ members earn 13 points per unit.
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Product identifiers
SKU: 2CDS271001R0011
EAN: 4016779599313
GTIN: 4016779599313
MPN: S201M-D1
Loyalty points:
13
Price range: £ 23.00 - £ 29.09 Excl. VAT
Categories
Specifications
| Frequency | |
| Power loss | 1.25 |
| Voltage type | AC/DC |
| Rated current | 1 |
| Rated voltage | 230 |
| Built-in depth | 69 |
| Explosion-proof | no |
| Pollution degree | 3 |
