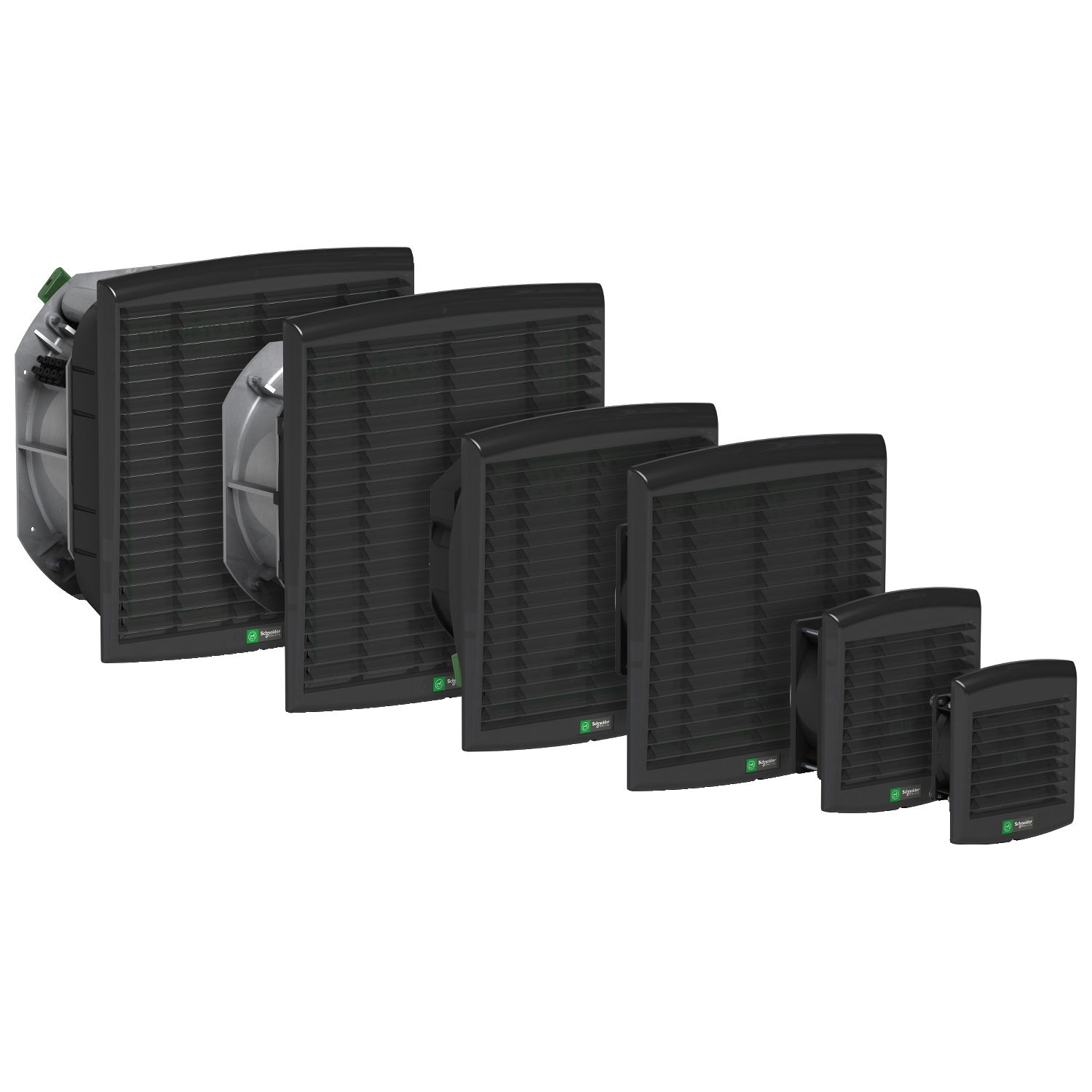

ClimaSys CV - CSVS SmartFan 560m3/h 230V IP54
"This product is a smart fan that is designed to provide reliable and efficient cooling" "It is made of injected thermoplastic (PC) and motor support (ASA PC) and is available in smoked black (RAL 9005) color" "The fan has a ball bearing type and a maximum pressure of 140 Pa" "It has a power range of 68 W 50 Hz and 85 W 60 Hz, and a free flow rate of 562 m3/h at 50 Hz and 586 m3/h at 60 Hz" "It can be used in ambient air temperatures ranging from -15 to 60°C" "It has a terminal block and comes with a filter, an external protective transparent smoked grille, a fan sensor ready to be mounted, and a cable gland" "It has an IP54 degree of protection and a noise level of 59-59 dB" "The cut-out dimensions of the fan are 291 x 291 mm"
Product identifiers
SKU: NSYCVF560M230DG
EAN: 3606481369796
GTIN: 3606481369796
MPN: NSYCVF560M230DG
Loyalty points:
219
Price: £ 448.33 Excl. VAT
ETIM Group
Specifications
| Depth | 161 mm |
| Width | 316 mm |
| Colour | Black |
| Height | 336 mm |
| RAL-number | 9005 |
| EMC-version | no |
| Rated power | 68 W |
| With filter | yes |
