Schneider Electric

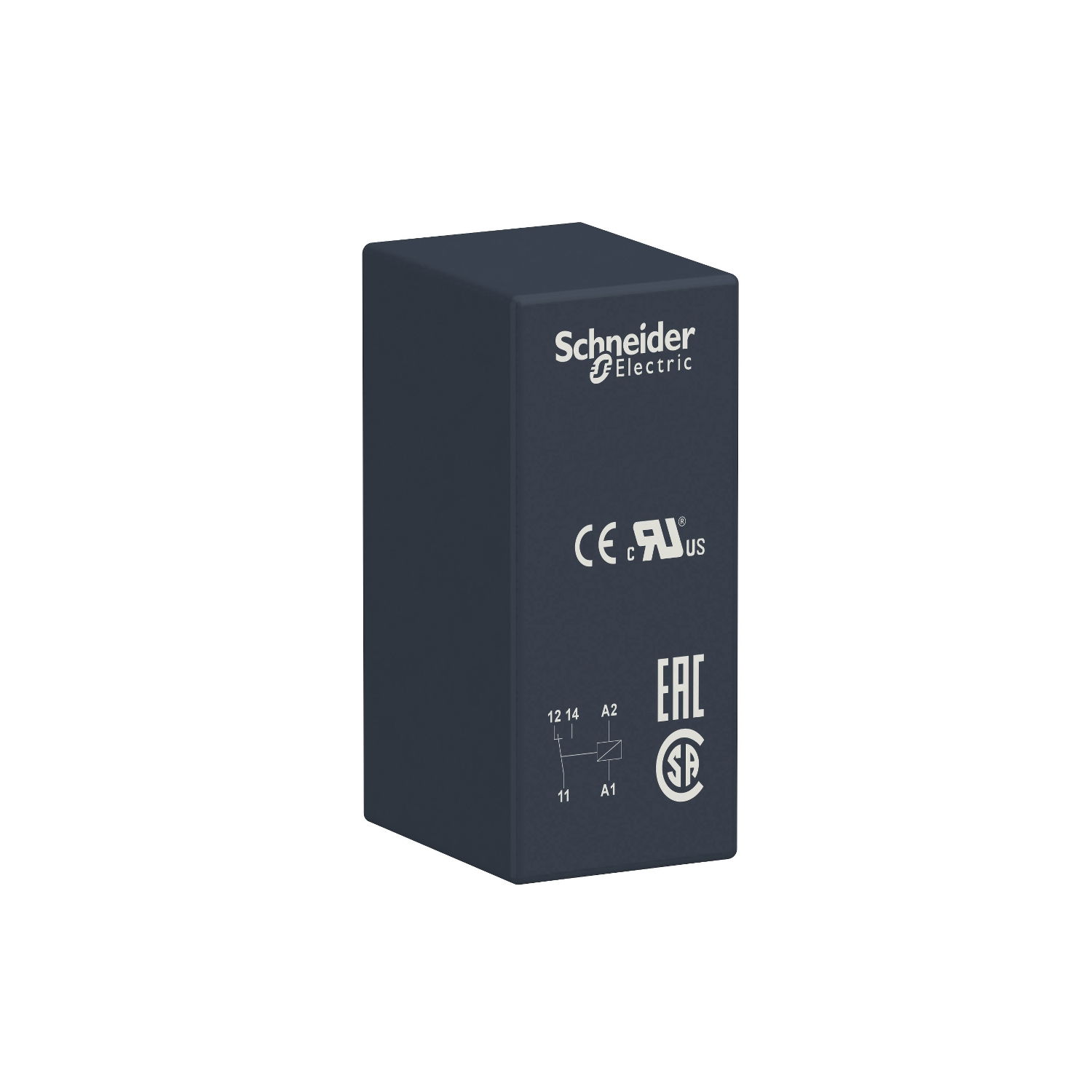

Interface plug-in relay, 12 A, 1 CO, 240V AC

Interface plug-in relay, 12 A, 1 CO, 240V AC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £12.32 excl. VAT. Voltimum+ members earn 1 point per unit.

This Harmony RSB interfacing plug-in relay has a control coil voltage of 240V AC and has 1 changeover contact single pole double throw with a rating of 12A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Plug in type allows easy installation and maintenance. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. 0 0 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RSB1A120U7
EAN: 3389110257342
GTIN: 3389110257342
MPN: RSB1A120U7

Voltimum+ Loyalty Programme Loyalty points: 1

Price: £ 12.32 Excl. VAT

Categories

Relays Electronic Components

ETIM group

Relays

Specifications

Depth 19.6 mm
Width 12.5 mm
Height 29 mm
Nominal current 12 A
Material contact Other
Drive, polarization Polarity free
With LED indication no
Complete with socket no
Max. starting current -
With detachable clamps yes
Drive, switching attitude Mono stable
Operating voltage AC 50 Hz
Voltage type for actuating AC
Type of electric connection Plug-in connection
Rated control supply voltage DC
Rated control supply voltage AC 50 Hz
Number of contacts as change-over contact 1
Number of contacts as normally closed contact 0

Documents

Deeplink product page

Open

Product data sheet

Open

Catalogue

Discover Harmony Electromechanical Relays Catalog - EN

Open

Environmental compliance declaration

RSB1A120U7 EU RoHS Declaration

Open

Environmental compliance declaration

RSB1A120U7 China RoHS Declaration

Open

Declaration of conformity

EU DOC - Zelio Relays RSB RSZE

Open

Environmental disclosure

750 Series Hermetically Sealed Relay

Open
