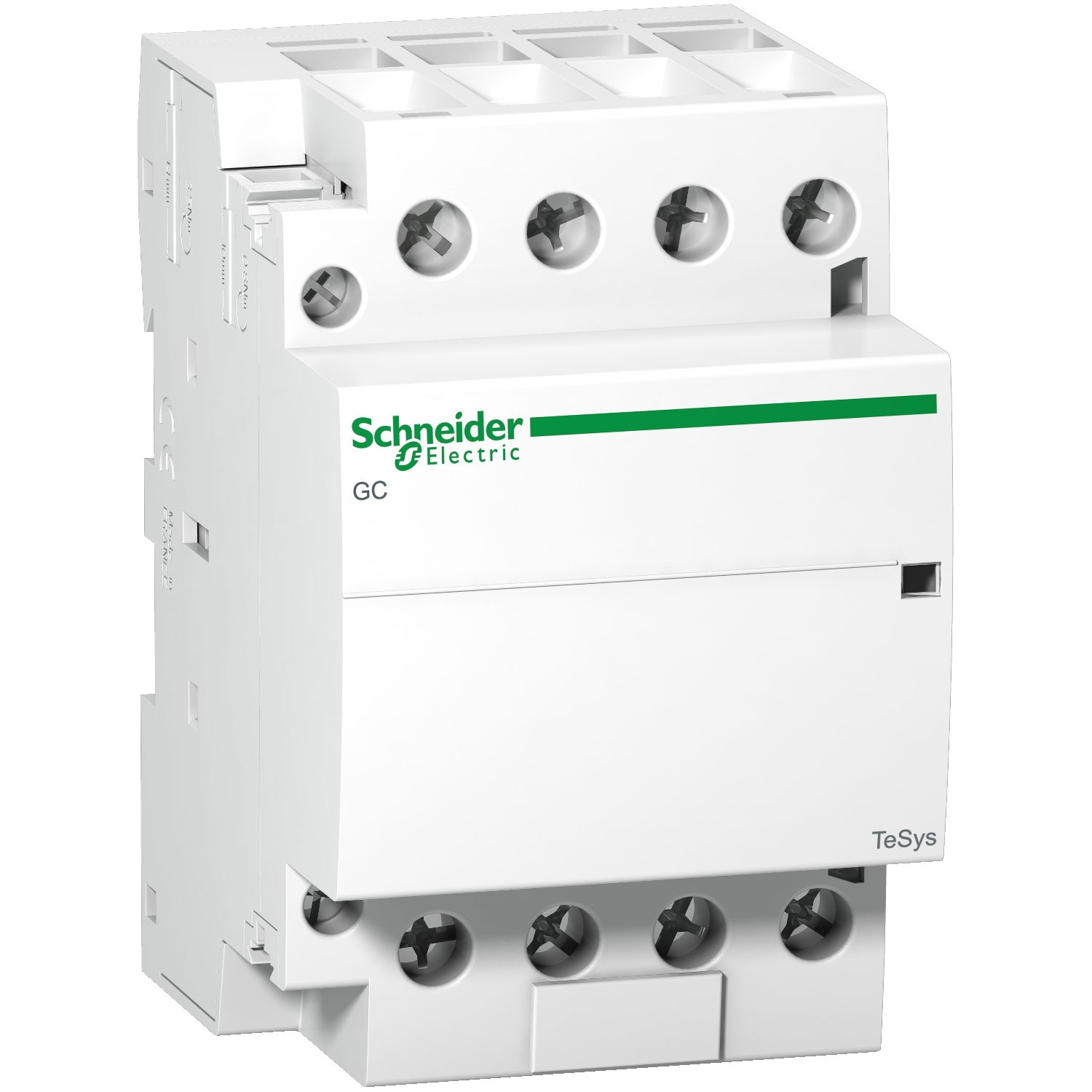

TeSys GC - modular contactor - 63 A - 4 NO - coil 220...240 V AC
TeSys GC modular contactor, 4 poles (4NO), 63A/415V AC-7a (heating) and 25A/415V AC-7b (motor control), for household applications. Control voltage 220-240V AC 50Hz, state indicator on front. For use in modular panels, compact (54mm width), clipping on 35mm DIN rail, connection by screw terminals. Sold in lots of 4 units. Multi standards certified (IEC, EN, NF-USE, VDE, CEBEC, OVE).
Product identifiers
SKU: GC6340M5
EAN: 3389110642049
GTIN: 3389110642049
MPN: GC6340M5
Loyalty points:
65
Price range: £ 175.00 - £ 176.75 Excl. VAT
Features
|
Hum-free
|
TRUE
|
|
Built-in depth
|
62.5 mm
|
|
Slider for hand switch
|
FALSE
|
|
Rated operating voltage
|
|
|
Rated operation current
|
63 A
|
|
With day/night function
|
TRUE
|
|
Rated excitation voltage
|
|
|
Degree of protection (IP)
|
IP20
|
|
Max. load fluorescent lamp
|
3500 VA
|
|
Max. incandescent lamp load
|
7500 W
|
|
Additional equipment possible
|
TRUE
|
|
Voltage type (operating voltage)
|
AC
|
|
Voltage type (excitation voltage)
|
AC
|
|
Width in number of modular spacings
|
3
|
|
Max. load fluorescent lamp (Duo circuit)
|
3300 VA
|
|
Number of contacts as normally open contact
|
4
|
|
Number of contacts as normally closed contact
|
0
|
|
Max. load fluorescent lamp (parallel compensated)
|
2200 VA
|
|
Utilization category according to EN IEC 60947-4-1
|
AC-7a
|
